YOKOGAWA MAC2*B AS S9310AQ-05 Original Industrial Spare CENTUM Compatible

Product Overview

YOKOGAWA MAC2*B AS S9310AQ-05 Original Industrial Spare – CENTUM DCS System Stability & Reliable Analog Control

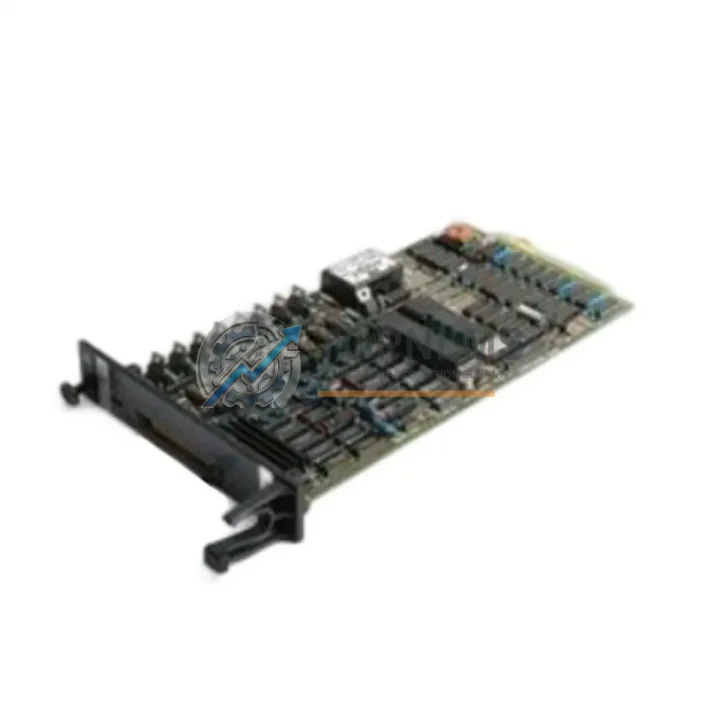

The YOKOGAWA MAC2*B AS S9310AQ-05 is an original multipoint analog control card engineered for deployment within YOKOGAWA’s CENTUM distributed control system (DCS) architecture. In process-critical environments — petrochemical plants, power generation facilities, pharmaceutical manufacturing lines, and large-scale utilities — the analog control layer is the backbone of continuous loop regulation. A failed or degraded analog card does not merely trigger an alarm; it can cascade into unplanned shutdowns, product quality deviations, and costly emergency maintenance windows. Maintaining a verified original spare of the MAC2*B AS S9310AQ-05 in your on-site inventory is one of the most cost-effective risk mitigation strategies available to maintenance engineers and reliability teams.

This card handles multipoint analog signal acquisition and output within the CENTUM field control station (FCS), interfacing directly with transmitters, control valves, and field instruments across multiple process loops simultaneously. Its original YOKOGAWA firmware and hardware design ensure seamless drop-in replacement without recalibration overhead or compatibility risk — a critical advantage when every minute of downtime carries measurable financial impact.

Critical Technical Specifications

Preventive Maintenance Strategy: Protecting Your CENTUM DCS Investment

Experienced DCS maintenance engineers understand that analog control cards rarely fail in isolation. The MAC2*B AS S9310AQ-05 operates within a tightly integrated field control station where power quality, backplane integrity, and signal conditioning all influence module longevity. A structured preventive maintenance program should treat this card as part of a broader inspection and sparing strategy.

During scheduled outages or annual turnarounds, maintenance teams should simultaneously inspect the YOKOGAWA PW481 or PW482 power supply modules that feed the FCS rack — degraded power supply ripple is a leading cause of premature analog card failure. The ESB bus coupler modules (such as the ACB11 or ACB21) connecting field control stations to the control bus should be checked for connector oxidation and firmware currency, as communication faults can manifest as false analog readings before a hard failure occurs.

Field wiring termination quality directly impacts analog accuracy. Inspect the terminal assembly units (TAU) and associated signal cable assemblies (KS-type or equivalent YOKOGAWA field wiring harnesses) for insulation degradation, loose terminations, and moisture ingress — particularly in humid or coastal plant environments. Corroded terminals introduce offset errors that are often misdiagnosed as card faults.

For plants running CENTUM CS 3000 or CENTUM VP, the FIO (Field I/O) modules — including the AAI141, AAI143, or AAI543 analog input modules — share the same maintenance window logic as the MAC2*B. If one analog card shows signs of drift or intermittent faults, a proactive inspection of adjacent I/O modules in the same FCS rack is strongly recommended. Similarly, AO (analog output) modules such as the AAO141 driving control valves should be verified for output accuracy using a calibrated loop calibrator during the same maintenance cycle.

Communication integrity between the FCS and the HIS (Human Interface Station) depends on the health of V-net interface cards and optical fiber communication modules. Stocking a spare V-net card alongside the MAC2*B AS S9310AQ-05 ensures that a communication-layer fault does not extend a planned replacement into a multi-day outage. Additionally, YOKOGAWA RIO (Remote I/O) node modules deployed in satellite control cabinets should be included in the annual inspection checklist, as remote nodes are often overlooked until a field fault forces attention.

For facilities managing aging CENTUM CS installations, consider maintaining a consolidated spare kit that includes the MAC2*B AS S9310AQ-05, at least one power supply module, one ESB coupler, and a set of terminal assembly units. This kit approach reduces mean time to repair (MTTR) from hours to minutes during unplanned outages — a measurable improvement in overall equipment effectiveness (OEE).

Strategic Replacement Solutions: Extending Legacy CENTUM System Life

Many industrial facilities continue to operate CENTUM CS and CENTUM CS 3000 systems well beyond their original design life, driven by the high cost and operational risk of full DCS migration. The MAC2*B AS S9310AQ-05 is a direct original replacement that eliminates the engineering effort associated with third-party substitutes — no signal scaling adjustments, no firmware compatibility testing, no re-engineering of marshalling cabinets.

When a legacy analog card fails unexpectedly, the fastest path to restoration is a verified original spare already on-site. Sourcing from the open market during an active shutdown introduces lead time risk, counterfeit exposure, and the possibility of receiving a card with unknown service history. Our MAC2*B AS S9310AQ-05 units are individually tested for analog accuracy, channel isolation, and bus communication before shipment, with full documentation available upon request.

For plants transitioning from CENTUM CS to CENTUM VP, the MAC2*B AS S9310AQ-05 supports a phased migration strategy — maintaining operational continuity in legacy FCS racks while new VP-series hardware is commissioned in parallel. This approach avoids the production risk of a hard cutover and allows engineering teams to validate new control logic against live process data before final switchover.

Procurement teams managing multi-site operations benefit from consolidating analog card inventory across facilities. A shared spare pool of MAC2*B AS S9310AQ-05 units, managed under a centralized MRO inventory system, reduces total spare investment while improving availability — particularly for plants with low individual failure rates but high consequence of downtime.

Support FAQ

Q1: What is the warranty coverage for the MAC2*B AS S9310AQ-05?
All units carry a 12-month warranty from the date of shipment. Coverage includes functional failure under normal operating conditions. Each card is tested for analog channel accuracy, isolation integrity, and bus communication prior to dispatch. Test records are available upon request.

Q2: How do I verify compatibility with my existing CENTUM FCS rack before installation?
The MAC2*B AS S9310AQ-05 is designed for YOKOGAWA CENTUM CS, CENTUM CS 3000, and CENTUM VP field control station racks. Confirm your FCS model and slot assignment against the YOKOGAWA FCS hardware manual (IM 33S01B30-01E or equivalent). If you require compatibility verification support, contact our technical team with your FCS model number and current card configuration.

Q3: What is the recommended spare inventory strategy for this module?
For single-site operations with one to three CENTUM FCS racks, maintaining one MAC2*B AS S9310AQ-05 as a cold spare is the minimum recommended posture. Facilities with four or more FCS racks, or those operating in high-criticality processes (continuous chemical, power generation), should consider a two-unit spare holding. Multi-site operations benefit from a centralized spare pool with defined replenishment triggers.

Q4: What pre-shipment testing is performed, and how quickly can the unit be dispatched?
Each unit undergoes functional testing covering analog input accuracy (all channels), analog output linearity, channel-to-channel isolation, and ESB/V-net bus communication handshake. Units in stock are typically dispatched within 1–3 business days of order confirmation. Expedited shipping options are available for urgent shutdown scenarios. Contact us directly for lead time confirmation on your specific requirement.
