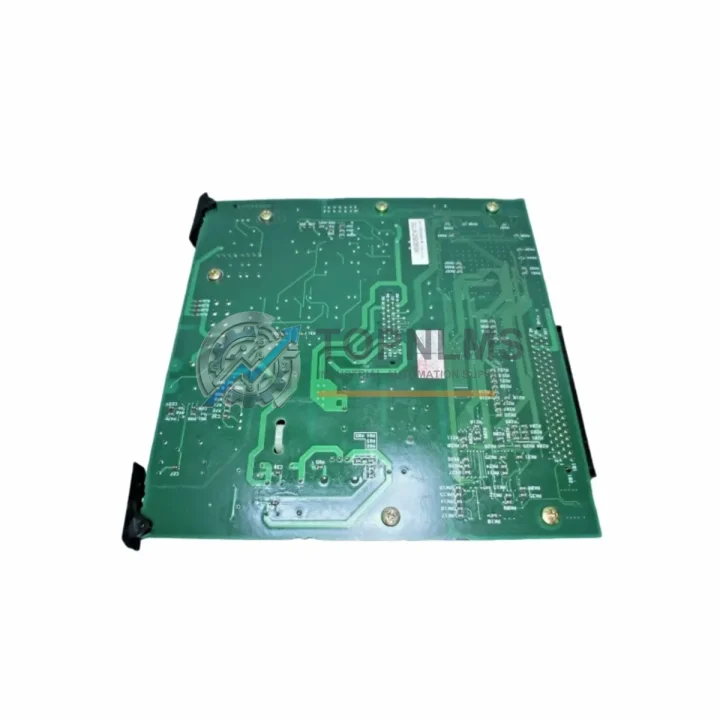

Yokogawa K9634DB-01 Ruggedized Thermocouple Input Module

Product Overview

Yokogawa K9634DB-01 Ruggedized Thermocouple Input Module: Industrial Resilience for Harsh Environments

The Yokogawa K9634DB-01 is a high-precision thermocouple input card engineered for continuous, fault-tolerant operation within the CENTUM VP and CS 3000 Distributed Control System (DCS) architectures. Designed to meet the uncompromising demands of process industries, this module delivers stable, accurate temperature measurement even under extreme thermal cycling, high-humidity atmospheres, heavy vibration, airborne particulate contamination, and intense electromagnetic interference — conditions routinely encountered in oil & gas platforms, petrochemical complexes, power generation facilities, metallurgical plants, and municipal water treatment infrastructure.

Where conventional I/O cards degrade or fail, the K9634DB-01 maintains signal integrity across its full multi-channel thermocouple input range, feeding clean, calibrated data to the CENTUM VP field control station (FCS) for real-time process optimization and safety interlock evaluation. Its robust hardware design, combined with Yokogawa’s proven DCS firmware stack, makes it a preferred replacement and spare-parts choice for plant engineers who cannot afford unplanned downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

The K9634DB-01 does not operate in isolation — it is one critical node within a tightly integrated control architecture. In a typical CENTUM VP cabinet, this thermocouple input card works in concert with the Yokogawa AFV10D field control unit, which aggregates I/O data and executes control logic at the field level. Analog output signals generated by the FCS are routed through Yokogawa AAI141-S00 analog output modules, closing the loop on temperature-based regulatory control such as fired heater management or reactor jacket cooling.

For installations requiring intrinsic safety in Zone 1 or Zone 2 hazardous areas, the K9634DB-01 is paired with certified Yokogawa KFDO-CS Ex series Zener barriers or galvanic isolators mounted on DIN rail within the marshalling cabinet, ensuring that fault energy cannot propagate to the field side. Power integrity for the entire I/O nest is maintained by the Yokogawa PW481 dual-redundant power supply module, which provides clean, regulated DC bus voltage even during upstream grid disturbances — a common occurrence in heavy industrial facilities with large motor loads.

On the communication side, the CENTUM VP system relies on the Yokogawa ESB10D enhanced signal bus coupler to bridge field I/O nests to the plant-wide control network, while the Yokogawa ACM12 communication module handles OPC-UA and Modbus TCP gateway functions for integration with third-party SCADA platforms or historian servers. In safety-critical loops, the K9634DB-01 temperature readings feed directly into Yokogawa ProSafe-RS safety instrumented system (SIS) logic solvers, enabling SIL 2-rated high-temperature shutdown interlocks without additional signal conditioning.

Terminal connectivity between field cables and the I/O card is handled by Yokogawa TB series terminal blocks and marshalling panels, which provide clearly labeled, vibration-resistant screw terminations rated for the full industrial temperature range. For plants running mixed vendor environments, the K9634DB-01 can coexist in the same control room with Yokogawa STARDOM FCN autonomous controllers managing auxiliary skid packages, all sharing a unified plant information network.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the K9634DB-01 is deployed in wellhead control panels and gas compression train cabinets where ambient temperatures can swing from sub-zero winter conditions to +50 °C summer heat inside uninsulated equipment shelters. Its wide operating range and cold-junction compensation algorithm ensure that thermocouple readings remain accurate regardless of ambient fluctuation, protecting compressor bearings, heat exchangers, and separator vessels from thermal excursion events.

In coal-fired and combined-cycle power plants, this module monitors furnace exit gas temperatures, steam header temperatures, and turbine exhaust profiles — data streams that feed directly into combustion optimization algorithms and turbine protection systems. A single miscalibrated temperature channel can trigger a spurious trip or, worse, mask an overtemperature condition; the K9634DB-01’s hardware-level open-circuit detection and burnout direction configuration eliminate both failure modes.

In metallurgical and smelting facilities, where electromagnetic interference from arc furnaces and induction heaters is severe, the module’s shielded backplane interface and differential input architecture reject common-mode noise that would corrupt readings on lesser hardware. Continuous casting lines and rolling mill temperature profiles depend on this level of signal fidelity to maintain product quality and prevent costly cobbles or breakouts.

In water and wastewater treatment plants, the K9634DB-01 supports long-term, unattended operation in humid pump stations and chemical dosing buildings, where condensation and corrosive atmospheres challenge electronics longevity. Its conformal-coated PCB construction and sealed connector interface provide the moisture resistance needed for multi-year service intervals between planned maintenance shutdowns.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange a replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Return shipping instructions and an RMA number are issued within one business day.

Q2: How is each K9634DB-01 tested before shipment?
Every unit undergoes a multi-stage inspection protocol: visual inspection for physical damage, power-on functional test verifying all 16 input channels respond correctly, firmware version verification against Yokogawa’s CENTUM VP compatibility matrix, and a final burn-in cycle to screen for early-life failures. A test report is available upon request for customers with incoming quality control requirements.

Q3: Is the K9634DB-01 compatible with both CENTUM VP and CS 3000 systems?
Yes. The K9634DB-01 is designed for use in both the CENTUM VP and CENTUM CS 3000 DCS platforms, which share a common I/O bus architecture and backplane connector standard. It is slot-compatible with the corresponding I/O nest in both systems and is recognized by the CENTUM VP engineering environment (System View) without additional hardware modification. Customers migrating from CS 3000 to CENTUM VP can reuse existing K9634DB-01 cards, reducing migration capital expenditure.

Q4: Can TOPNLMS guarantee long-term supply for ongoing maintenance and spare-parts programs?
Yes. TOPNLMS maintains a dedicated inventory of Yokogawa CENTUM VP and CS 3000 I/O modules, including the K9634DB-01, to support plant spare-parts programs with multi-year procurement horizons. Customers operating large DCS installations are encouraged to contact us to discuss blanket purchase agreements, consignment stock arrangements, or priority allocation for critical spare modules. Our sourcing network covers genuine OEM stock from authorized distribution channels, ensuring authenticity and traceability for every unit shipped.
