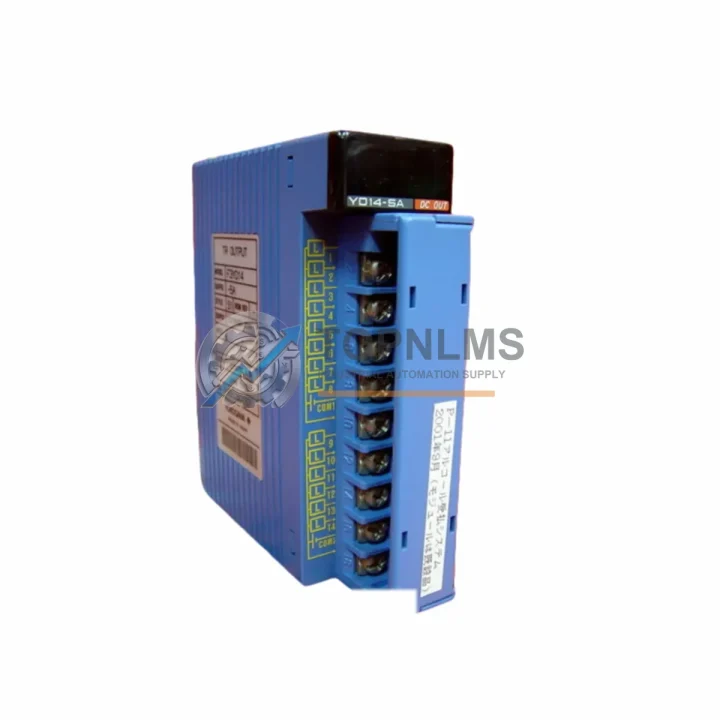

YOKOGAWA F3YD14-5A Ruggedized Transistor Output Module for Harsh Environments

Product Overview

YOKOGAWA F3YD14-5A Ruggedized Transistor Output Module for Harsh Environments

The YOKOGAWA F3YD14-5A is a 14-point transistor output module engineered for the FA-M3 programmable logic controller platform — one of YOKOGAWA’s most proven and widely deployed control system architectures in heavy industry. Designed to deliver unwavering signal integrity under extreme thermal cycling, high-humidity exposure, pervasive airborne particulates, mechanical vibration, and intense electromagnetic interference, the F3YD14-5A represents the benchmark for output-stage reliability in mission-critical automation environments.

In continuous production facilities — from petrochemical refineries and offshore gas platforms to underground mining operations and high-voltage power substations — output modules are the final link between the controller’s logic and the physical world. A single point of failure at this stage can cascade into unplanned downtime, safety incidents, or irreversible process damage. The F3YD14-5A is built to eliminate that risk. Its transistor-based output architecture provides fast switching response, low power dissipation, and long operational life compared to relay-based alternatives, making it the preferred choice for high-cycle actuator control, solenoid valve switching, and motor starter command circuits in demanding field environments.

Within the FA-M3 rack system, the F3YD14-5A integrates seamlessly alongside companion modules including the F3YD22-5A 22-point transistor output module and the F3XD32-3A 32-point DC input module, enabling engineers to configure dense, high-channel-count I/O assemblies without sacrificing signal isolation or diagnostic transparency. The module’s backplane communication is fully compatible with the FA-M3 CPU modules such as the F3SP71-4N and F3SP76-7N, supporting deterministic scan-cycle execution even under heavy I/O load — a critical requirement in real-time process control applications.

For installations requiring functional safety compliance, the F3YD14-5A is commonly deployed in conjunction with YOKOGAWA’s ProSafe-RS safety instrumented system components, where it handles non-safety-rated output channels while the SIS layer manages emergency shutdown logic. This hybrid architecture is widely adopted in SIL 2 and SIL 3 certified installations across the oil and gas sector, allowing operators to maximize I/O density while maintaining rigorous safety segregation. The module also pairs effectively with F3LC11-1F Ethernet communication modules and F3LP02-0N loop control modules, supporting integrated SCADA and DCS architectures over standard industrial network protocols.

In steel mills, aluminum smelters, and cement plants — environments characterized by extreme radiated heat, conductive dust, and continuous mechanical shock — the F3YD14-5A’s robust PCB conformal coating and reinforced terminal block design maintain reliable contact resistance over years of continuous operation. Power supply stability is equally critical in these environments; the module is designed to operate reliably alongside YOKOGAWA F3PU20-0S power supply units, which provide regulated, noise-filtered DC power to the FA-M3 rack, ensuring that transient voltage spikes from large motor starts or arc furnace switching events do not propagate into the control backplane.

Water treatment facilities and municipal infrastructure operators rely on the F3YD14-5A for pump station control, chemical dosing valve actuation, and blower motor sequencing — applications where the module may operate unattended for months between maintenance intervals. Its solid-state output design eliminates the contact wear and arcing degradation associated with electromechanical relay modules, dramatically extending mean time between failures in these low-maintenance deployment scenarios. When integrated with F3BU04-0N base unit assemblies and appropriate terminal modules, the F3YD14-5A supports hot-swap-capable rack configurations that allow field technicians to replace individual I/O modules without interrupting adjacent channels — a significant operational advantage in 24/7 continuous process environments.

From a procurement perspective, TOPNLMS maintains verified stock of the F3YD14-5A sourced through authorized industrial distribution channels. Every unit undergoes pre-shipment functional verification including output continuity testing, isolation resistance measurement, and visual inspection against YOKOGAWA’s published quality standards. Units are shipped in anti-static protective packaging with full traceability documentation, and all sales are backed by a 12-month replacement warranty covering manufacturing defects and functional failures under normal operating conditions. Lead times are typically 1–3 business days for in-stock units, with expedited shipping options available for urgent maintenance and breakdown scenarios.

Rugged Specifications Table

Comprehensive Protection Solutions

Reliable output control in harsh industrial environments is never the result of a single module — it is the product of a carefully engineered system. The F3YD14-5A is most effective when deployed as part of a complete FA-M3 control architecture. On the input side, the F3XD32-3A 32-point DC input module provides the field signal acquisition layer, capturing process feedback from proximity sensors, pressure switches, and flow transmitters with the same photocoupler isolation philosophy that defines the F3YD14-5A’s output stage. Together, these two modules form the I/O backbone of a balanced FA-M3 rack assembly.

Power integrity is foundational to output module performance. The F3PU20-0S power supply module delivers regulated 5 VDC backplane power with built-in overvoltage and overcurrent protection, ensuring that the F3YD14-5A’s internal logic circuitry remains stable even when field-side loads experience switching transients. For installations requiring redundant power architectures, dual power supply configurations using paired F3PU20-0S units are standard practice in high-availability process control panels.

Communication transparency is equally critical. The F3LC11-1F Ethernet communication module enables the FA-M3 system to exchange real-time I/O status data with SCADA platforms, historian servers, and remote HMI terminals over standard TCP/IP networks. In Modbus RTU environments, the F3LR02-1N serial communication module provides the protocol gateway function, connecting the FA-M3 rack to legacy field devices, variable frequency drives, and intelligent motor control centers that predate Ethernet-based fieldbus adoption.

For process loops requiring PID regulation, the F3LP02-0N loop control module handles analog control functions independently of the CPU scan cycle, offloading temperature, pressure, and flow control computation to a dedicated processor. This architecture ensures that the F3YD14-5A’s output switching commands — whether for on/off valve control or motor starter sequencing — are executed with deterministic timing regardless of CPU loading conditions. In safety-instrumented system architectures, the F3YD14-5A handles standard output channels while YOKOGAWA ProSafe-RS safety output modules manage emergency shutdown and fire-and-gas system actuators, maintaining strict SIL-rated segregation between safety and non-safety I/O.

Application in Critical Infrastructure

In upstream oil and gas production facilities, the F3YD14-5A controls wellhead valve actuators, chemical injection pump motors, and separator level control valves — applications where output module failure directly impacts production throughput and personnel safety. Its transistor output design eliminates the contact bounce and arcing that can cause spurious valve operations in relay-based systems, a critical advantage in hazardous area control panels where ignition risk must be minimized.

In coal-fired and gas-fired power generation plants, the module manages burner management system auxiliary outputs, boiler feed pump motor starters, and flue gas desulfurization system actuators. The FA-M3 platform’s deterministic scan cycle, combined with the F3YD14-5A’s fast output response time, ensures that combustion control sequences execute within the tight timing windows required by boiler safety standards.

Underground mining operations present some of the most demanding environmental conditions for control hardware — extreme humidity, conductive coal and mineral dust, continuous mechanical vibration from blasting and heavy equipment, and frequent power quality disturbances from large motor starts. The F3YD14-5A’s conformal-coated PCB and photocoupler-isolated output stage provide the environmental robustness required for conveyor belt control, ventilation fan sequencing, and dewatering pump management in these conditions.

Municipal water treatment and wastewater management facilities rely on the F3YD14-5A for continuous, unattended operation of pump stations, chemical dosing systems, and UV disinfection equipment. In these applications, the module’s solid-state output design and long MTBF characteristics translate directly into reduced maintenance costs and improved regulatory compliance for facilities operating under strict environmental discharge standards.

In steel and aluminum production, where arc furnaces, induction heaters, and large rolling mill drives generate intense electromagnetic interference, the F3YD14-5A’s IEC 61000-4 compliant EMI immunity ensures that output commands are executed accurately without false triggering or signal corruption — maintaining process continuity in facilities where unplanned stops carry significant financial and metallurgical consequences.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions as defined by YOKOGAWA’s published specifications for the F3YD14-5A. If a unit fails within the warranty period, TOPNLMS will arrange replacement shipment after receiving the defective unit for inspection. Contact [email protected] with your order reference and a description of the failure mode to initiate a warranty claim.

Q2: How is each unit tested before shipment?
Every F3YD14-5A unit in TOPNLMS inventory undergoes pre-shipment functional verification including output point continuity testing across all 14 channels, isolation resistance measurement between field-side and logic-side circuits, and visual inspection for physical damage, connector integrity, and label authenticity. Units that do not pass all verification checks are quarantined and not offered for sale.

Q3: Is the F3YD14-5A compatible with all FA-M3 CPU and base unit configurations?
The F3YD14-5A is compatible with all FA-M3 Wide Series base units and CPU modules, including the F3SP71-4N, F3SP76-7N, and F3SP66-4S. It occupies one slot in any standard FA-M3 base unit (F3BU04-0N, F3BU05-0N, F3BU13-0N) and is recognized automatically by the FA-M3 system without requiring special configuration. For specific compatibility questions related to your existing rack configuration, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term supply continuity for the F3YD14-5A as a spare part?
Yes. TOPNLMS specializes in maintaining stock of industrial automation components including legacy and current-production YOKOGAWA FA-M3 modules specifically to support spare parts programs for facilities that cannot afford unplanned downtime. We can provide volume pricing for spare parts kits, advise on recommended stock quantities based on your installed base size, and source units on request if current stock is depleted. Contact [email protected] or call +86 18359293191 to discuss your long-term supply requirements.
