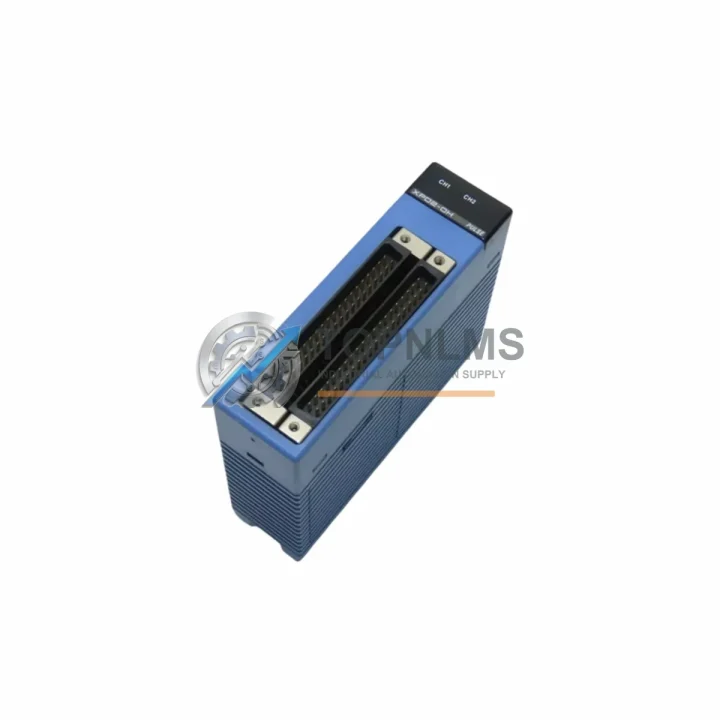

YOKOGAWA F3XP02-0H Ruggedized High-Speed Counter Module

Product Overview

YOKOGAWA F3XP02-0H Ruggedized High-Speed Counter Module: Industrial Resilience for Harsh Environments

The YOKOGAWA F3XP02-0H is a high-speed counter module engineered for the FA-M3 Range-Free PLC platform — one of YOKOGAWA’s most trusted distributed control architectures in mission-critical industrial environments. Designed to operate reliably under extreme thermal stress, high-humidity conditions, heavy vibration, airborne particulates, and intense electromagnetic interference, the F3XP02-0H delivers deterministic pulse counting performance where conventional modules fail. Whether deployed in continuous process lines, hazardous area control panels, or heavy industrial machinery, this module maintains signal integrity and system uptime without compromise.

Rugged Specifications Table

Comprehensive Protection Solutions

The F3XP02-0H is rarely deployed in isolation. In a fully integrated FA-M3 control cabinet, it works in concert with YOKOGAWA F3SP71-4N or F3SP76-7N CPU modules that handle ladder logic execution and inter-module communication over the FA-M3 high-speed bus. Digital I/O modules such as the F3YD32-0N and F3XD32-0N provide the discrete signal interface layer, while the F3XP02-0H handles the high-frequency pulse streams that standard I/O cannot reliably capture.

For power integrity in harsh environments, the FA-M3 system relies on YOKOGAWA F3PU20-0S power supply modules, which deliver stable regulated DC power to the backplane even under fluctuating mains conditions common in heavy industrial facilities. In applications where motor-driven axes or conveyor systems are involved, the F3XP02-0H counter data is often consumed by YOKOGAWA’s motion control or PID loop modules, enabling closed-loop speed regulation without external counters.

Communication-intensive installations pair the F3XP02-0H with YOKOGAWA F3LE01-5T Ethernet communication modules or F3LC11-1F PROFIBUS-DP interface modules, allowing counter data to be transmitted upstream to SCADA systems or DCS platforms such as YOKOGAWA CENTUM VP. In safety-rated zones, the counter module operates alongside F3SX08-0N safety relay modules and hardwired emergency stop circuits, ensuring that encoder feedback loss triggers a controlled safe-state response rather than an uncontrolled process fault. Terminal modules and wiring duct assemblies within the same control cabinet complete the installation, providing organized, vibration-resistant termination for all field cables.

Application in Critical Infrastructure

In oil and gas upstream facilities, the YOKOGAWA F3XP02-0H is used to monitor pump stroke counters and turbine flow meters in wellhead automation panels. Its high-frequency counting capability and EMI shielding make it suitable for environments where variable-frequency drives and high-current switching equipment generate significant electrical noise. The module’s deterministic response ensures that flow totalization data remains accurate even during motor start-up transients.

In mining and mineral processing operations, the F3XP02-0H tracks conveyor belt encoder pulses and crusher rotation speeds in dusty, high-vibration environments. Its robust backplane connection and conformal-coated PCB design resist the ingress of fine particulates that would degrade less ruggedized modules over time. Maintenance teams in these facilities value the module’s hot-swap compatibility within the FA-M3 chassis, which allows replacement during scheduled maintenance windows without full system shutdown.

In power generation and utilities, including thermal and hydroelectric plants, the module is integrated into turbine governor control panels where precise shaft speed measurement is critical for grid synchronization. Water treatment facilities use the F3XP02-0H to count pump revolutions and monitor chemical dosing pump strokes, ensuring accurate chemical feed rates in compliance with environmental discharge standards.

In metallurgy and steel production, the module handles encoder feedback from rolling mill drives and ladle transfer cars, where high ambient temperatures and electromagnetic interference from arc furnaces present extreme operating challenges. The FA-M3 platform’s modular architecture allows the F3XP02-0H to be positioned in distributed remote I/O enclosures close to the field device, minimizing signal cable runs and reducing susceptibility to induced noise.

Security & Quality FAQ

Q1: What warranty coverage does the YOKOGAWA F3XP02-0H carry when purchased from TOPNLMS?
Every F3XP02-0H unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. If the module exhibits any functional defect under normal operating conditions within this period, TOPNLMS will arrange replacement or repair at no additional cost. Our warranty process is straightforward — contact us directly at [email protected] with your order reference and fault description.

Q2: How is each unit tested before shipment?
All F3XP02-0H modules undergo pre-shipment functional verification, including power-on self-test confirmation, visual inspection for physical damage, and packaging integrity checks. Units sourced from authorized distribution channels are cross-referenced against YOKOGAWA’s product authentication records where applicable. We do not ship untested or cosmetically damaged units.

Q3: Is the F3XP02-0H compatible with all FA-M3 CPU and base unit configurations?
The F3XP02-0H is designed for the FA-M3 Range-Free PLC backplane and is compatible with the full range of FA-M3 CPU modules, including the F3SP series and F3LP series, subject to YOKOGAWA’s published slot assignment rules. Customers integrating this module into an existing FA-M3 system should verify slot compatibility against their CPU’s I/O configuration table. TOPNLMS technical staff can assist with compatibility verification prior to purchase.

Q4: Can TOPNLMS support long-term or repeat procurement of the F3XP02-0H?
Yes. TOPNLMS maintains stock of FA-M3 series modules including the F3XP02-0H to support both immediate replacement needs and planned maintenance schedules. For facilities managing aging FA-M3 systems where YOKOGAWA has announced end-of-life timelines for certain modules, we recommend establishing a standing spare parts agreement. Contact us to discuss volume pricing, lead times, and reserved stock arrangements tailored to your maintenance cycle.
