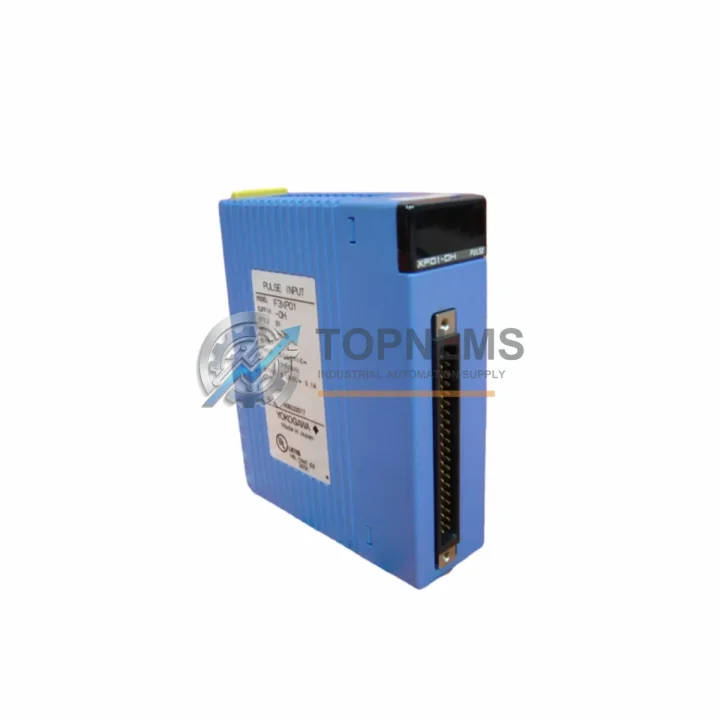

YOKOGAWA F3XP01-0H Original Industrial Spare FA-M3 Compatible

Product Overview

YOKOGAWA F3XP01-0H Original Industrial Spare FA-M3 Compatible: System Stability and Industrial Spare Parts Maintenance Value

The YOKOGAWA F3XP01-0H is a high-speed counter module designed for the FA-M3 Series programmable controller platform — one of the most widely deployed modular PLC architectures in process manufacturing, discrete automation, and utility control environments across Asia-Pacific and beyond. When a counter module fails or degrades in a live production environment, the consequences extend far beyond a single I/O point: pulse trains from encoders, flow meters, and proximity sensors go unmonitored, batch counts become unreliable, and the entire control loop dependent on that feedback is compromised. Sourcing a verified original F3XP01-0H replacement is not merely a maintenance task — it is a system stability decision.

At TOPNLMS, every F3XP01-0H unit is sourced from authorized supply channels, individually inspected, and function-tested prior to dispatch. Each module ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Worldwide shipping is available, with expedited options for urgent unplanned downtime scenarios.

Critical Technical Specs

Preventive Maintenance Strategy

The F3XP01-0H does not operate in isolation. In a typical FA-M3 control cabinet, it shares the backplane with CPU modules, power supply modules, and a range of I/O modules — all of which age together and are subject to the same thermal cycling, vibration, and electrical stress. A disciplined preventive maintenance program treats the counter module replacement as a trigger point for a broader cabinet inspection.

When replacing or inspecting the F3XP01-0H, maintenance engineers should simultaneously verify the condition of the FA-M3 CPU module (such as the F3SP71-4N or F3SP76-7N) that processes the counter data, since a degraded CPU can misinterpret high-frequency pulse inputs even when the counter module itself is functioning correctly. The FA-M3 power supply module — typically an F3PU20-0S or F3PU10-0S — should be load-tested, as voltage sag under full backplane load is a common root cause of intermittent counter errors that are often misdiagnosed as module failure.

Encoder signal integrity is equally critical. The pulse signals feeding the F3XP01-0H travel through shielded cables and terminal blocks before reaching the module input. Inspect the signal cables for insulation wear, connector corrosion, and shield continuity. If the installation uses a signal isolator or pulse converter between the encoder and the PLC input, verify that the isolator’s frequency response is rated above 200 kHz to avoid signal attenuation at high count rates. Relay output modules in the same cabinet — such as the F3YR04-0N — should be checked for contact wear if they are part of the same control loop that responds to counter thresholds.

For systems using YOKOGAWA’s FA-M3 communication modules (such as the F3LE01-5T Ethernet module or F3LC11-1F PROFIBUS module), confirm that the network configuration has not been disrupted during the maintenance window, as counter data is often transmitted upstream to SCADA or DCS systems via these communication paths. If the plant runs a YOKOGAWA CENTUM VP or ProSafe-RS safety system in parallel, coordinate the FA-M3 maintenance window with the DCS team to avoid false alarms triggered by missing counter feedback during module swap.

Finally, review the terminal block wiring on the F3XP01-0H’s I/O connector. Loose or oxidized terminals are a leading cause of intermittent pulse loss at high frequencies. If the installation is more than five years old, consider replacing the I/O connector and associated wiring harness as part of the same maintenance event. Keeping a spare F3XP01-0H, along with a spare FA-M3 power supply module and a spare CPU module, in your on-site spare parts inventory is the most cost-effective way to guarantee sub-hour recovery time for any single-module failure in this platform.

Strategic Replacement Solutions

The F3XP01-0H has been in service in FA-M3 installations for well over a decade. Many of these systems were commissioned in the 2005–2015 period and are now operating in an extended lifecycle phase where original spare parts availability from the OEM is constrained. TOPNLMS specializes in sourcing original, unused, and low-hour tested modules for exactly this scenario — providing a direct functional replacement that requires no firmware changes, no re-engineering of the base unit, and no modification to the existing ladder logic or function block programs.

Unlike third-party compatible alternatives, an original F3XP01-0H replacement preserves the exact electrical characteristics — input impedance, threshold voltages, and timing parameters — that the existing PLC program was tuned around. This is particularly important in applications where the counter is used for precision measurement (flow totalization, batch counting, or position feedback from incremental encoders), where even minor deviations in input threshold voltage can introduce count errors at the margins of the operating frequency range.

For plants managing a fleet of FA-M3 systems across multiple production lines or facilities, a strategic spare parts inventory approach — holding one or two F3XP01-0H units per site — reduces the mean time to repair (MTTR) from days (procurement lead time) to hours (technician travel and swap time). This is a measurable contribution to overall equipment effectiveness (OEE) and is increasingly required by insurance underwriters and corporate risk management frameworks for critical process control assets.

Support FAQ

Q1: Is the F3XP01-0H compatible with all FA-M3 base units?
The F3XP01-0H is designed for the YOKOGAWA FA-M3 modular PLC platform and is compatible with standard FA-M3 base units including the F3BU04-0N (4-slot), F3BU08-0N (8-slot), and F3BU16-0N (16-slot). It occupies one slot and is powered via the backplane bus. Compatibility with specific CPU firmware versions should be verified against the YOKOGAWA FA-M3 module compatibility matrix for your installed CPU model.

Q2: What testing is performed before shipment?
Every F3XP01-0H unit dispatched by TOPNLMS undergoes a pre-shipment functional test that verifies power-on initialization, channel response, and communication with the backplane bus. Units that do not pass functional verification are not offered for sale. A test report summary is available upon request for critical applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional failure and manufacturing defects under normal operating conditions (within the specified temperature, humidity, and voltage ranges). It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the module’s rated specifications. Warranty claims are processed via email to [email protected] with a fault description and photographic evidence.

Q4: Can I order multiple units for a spare parts inventory program?
Yes. TOPNLMS supports bulk and multi-unit orders for spare parts inventory programs. Volume pricing is available for orders of 3 or more units of the same model. Contact us at [email protected] or +86 18359293191 to discuss your inventory requirements and lead times.
