YOKOGAWA F3RP45-2P/L1 Ruggedized CPU Module for Harsh Environments

Product Overview

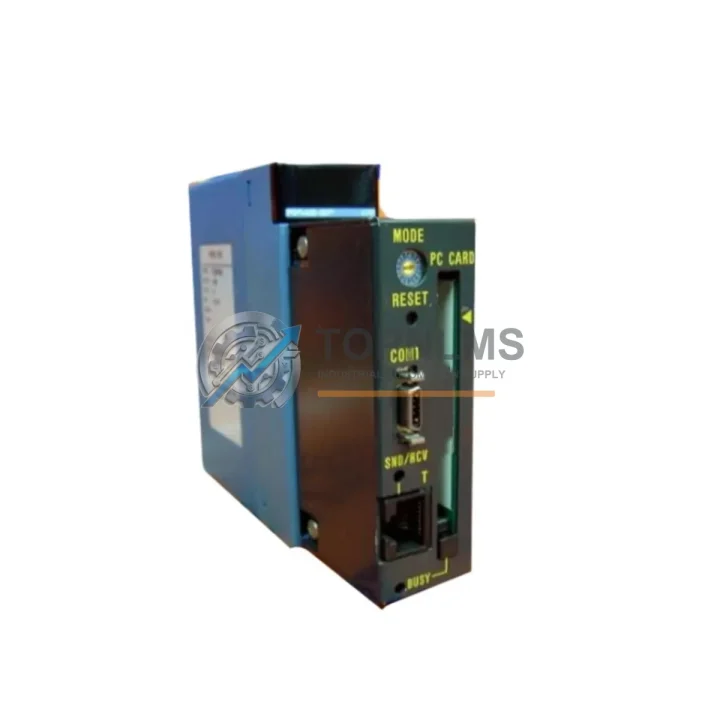

YOKOGAWA F3RP45-2P/L1 Ruggedized CPU Module for Harsh Environments

The YOKOGAWA F3RP45-2P/L1 is a high-performance CPU controller module from the renowned FA-M3 programmable logic controller series — engineered to deliver uncompromising reliability in the most demanding industrial environments. Designed for continuous operation in facilities where temperature extremes, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference are everyday realities, this module represents YOKOGAWA’s commitment to industrial-grade resilience and long-term operational stability.

Whether deployed on a petrochemical processing line, a deep-shaft mining control system, a high-voltage power distribution substation, or a continuous-cast steel mill, the F3RP45-2P/L1 maintains deterministic scan-cycle execution and stable I/O communication without compromise. Its robust hardware architecture and proven firmware make it a trusted backbone for safety-critical and production-critical control architectures worldwide.

Rugged Specifications Table

Comprehensive Protection Solutions

The F3RP45-2P/L1 does not operate in isolation — it is the command center of a tightly integrated FA-M3 control architecture. In a typical control cabinet deployment, this CPU module works in concert with F3YP28-0P digital output modules and F3XP28-0P digital input modules to handle high-density discrete I/O across production lines. For process-intensive applications requiring precise measurement, F3AD08-6R analog input modules and F3DA04-1N analog output modules extend the system’s sensing and actuation capabilities to temperature, pressure, and flow control loops.

In environments where electromagnetic interference from variable frequency drives (VFDs), large motor starters, or high-current bus bars poses a risk to signal integrity, the FA-M3 system’s shielded backplane design and the CPU’s built-in noise filtering ensure stable ladder scan execution. Pairing the F3RP45-2P/L1 with F3LC11-1F Ethernet communication modules enables seamless SCADA integration over industrial Ethernet, while F3LE01-5T loop control modules add PID and advanced process control directly within the same rack — eliminating the need for external controllers and reducing cabinet footprint.

For safety-critical zones, the FA-M3 architecture supports integration with dedicated YOKOGAWA ProSafe-RS safety controllers, allowing the F3RP45-2P/L1 to serve as the standard process controller while the safety system handles SIL-rated emergency shutdown (ESD) logic. Power integrity is maintained through F3PU20-0S and F3PU30-0S power supply modules, which provide regulated DC power to the backplane with built-in overcurrent and overvoltage protection. Terminal modules such as the F3TB32-0N provide reliable field wiring termination, reducing installation errors and simplifying maintenance in high-vibration environments. Together, these components form a complete, ruggedized control solution capable of sustaining 24/7 operation across the harshest industrial sites.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the F3RP45-2P/L1 is deployed in wellhead control panels, compressor station automation, and pipeline SCADA outstations where ambient temperatures fluctuate widely and explosive-atmosphere compliance demands robust, sealed enclosure installations. The module’s deterministic scan cycle ensures that emergency valve actuation and pressure relief logic execute within defined time windows — a non-negotiable requirement in hydrocarbon processing.

In coal and metal mining, where conveyor belt systems, ventilation fans, and hoisting equipment must operate continuously under heavy vibration and coal dust ingress, the FA-M3 CPU’s vibration-rated design and sealed connector interfaces maintain reliable communication with distributed I/O racks located hundreds of meters from the main control room. The module’s dual serial ports support long-distance RS-485 MEMOBUS communication to remote field devices without signal degradation.

At thermal and hydroelectric power generation facilities, the F3RP45-2P/L1 manages turbine auxiliary systems, cooling water circuits, and fuel feed control. Its compatibility with YOKOGAWA’s CENTUM VP DCS via OPC or serial gateway interfaces allows seamless integration into plant-wide distributed control architectures, enabling operators to monitor and control the FA-M3 subsystem from centralized DCS workstations.

In water and wastewater treatment plants, the module controls dosing pumps, aeration blowers, and filtration sequences in environments characterized by high humidity, chemical vapors, and continuous duty cycles. Its proven reliability reduces unplanned downtime — a critical factor in municipal infrastructure where service interruptions carry regulatory and public health consequences.

For steel and metallurgical plants, the F3RP45-2P/L1 withstands the intense electromagnetic interference generated by arc furnaces, induction heaters, and large rolling mill drives, maintaining stable PLC scan cycles and accurate I/O response times even in close proximity to high-power electrical equipment.
