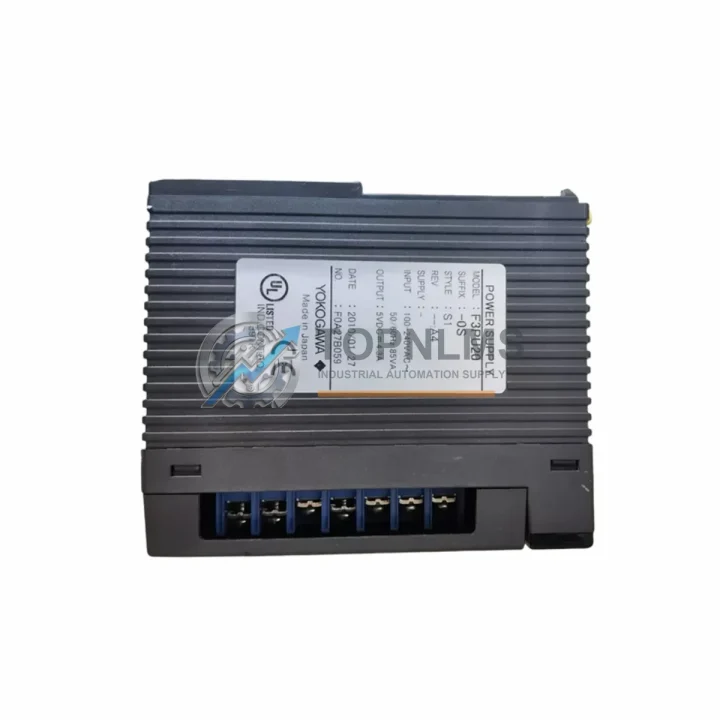

YOKOGAWA F3PU20-0S Replacement for FA-M3 Power Supply

Product Overview

YOKOGAWA F3PU20-0S Replacement for FA-M3 Power Supply: Smooth Migration & Legacy System Compatibility

When your YOKOGAWA FA-M3 Series control system relies on the F3PU20-0S power supply module, any unplanned failure or end-of-life notice can threaten continuous production. The F3PU20-0S is a 24 VDC input power supply module designed specifically for the FA-M3 programmable controller platform, providing stable regulated power to the CPU rack and I/O expansion racks. TOPNLMS maintains verified stock of the F3PU20-0S to support direct replacement, planned maintenance shutdowns, and full system migration projects — with zero compromise on electrical compatibility or mechanical fit.

Whether you are replacing a failed unit on an active production line, building a spare-parts inventory for a long-running FA-M3 installation, or executing a phased upgrade from an older YOKOGAWA FACTORY ACE or FA500 platform to the current FA-M3 architecture, the F3PU20-0S is the correct power supply module to specify. Its slot-compatible form factor, standard DIN-rail-ready rack mounting, and identical connector pinout mean that field engineers can complete a hot-swap replacement in minutes without rewiring the power distribution harness or modifying the cabinet layout.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FA-M3 power supply replacement rarely happens in isolation. Field engineers and procurement teams planning a migration or emergency repair typically need to assess the full rack assembly. The F3PU20-0S slots into the same base units — such as the F3BU09-0N nine-slot base unit or the compact F3BU04-0N four-slot base unit — that house the rest of the control system. If the CPU module, such as the F3SP28-3N or F3SP38-6N sequence CPU, is also approaching end-of-life, it is operationally efficient to replace both the power supply and the CPU in the same maintenance window to avoid a second shutdown.

On the I/O side, digital input modules like the F3XD32-3H and digital output modules such as the F3YD32-3T draw their operating power directly from the rack backplane fed by the F3PU20-0S. Ensuring the replacement power supply is correctly rated for the combined load of all installed I/O modules is a critical pre-installation step. If the existing rack is fully populated and the load budget is tight, engineers sometimes migrate to the higher-capacity F3PU30-0S (30 W) at the same time to provide headroom for future I/O expansion.

Communication infrastructure is equally important during a migration. If the FA-M3 system uses YOKOGAWA’s F3LE01-5T Ethernet communication module or the F3LC11-1F FL-net module for factory network integration, these modules continue to operate without any configuration change after a power supply swap — the communication protocol stack resides entirely in the CPU and communication modules, not in the power supply. Similarly, if the system connects to a YOKOGAWA ProSafe-RS safety controller or a CENTUM VP DCS via Modbus TCP or YOKOGAWA’s proprietary Vnet/IP, those links remain uninterrupted.

For sites that use a YOKOGAWA WT310E or similar power analyzer to commission and verify the replacement, or that rely on a KM11-1 programming cable and WIDE Field3 engineering software to back up and restore the CPU program before the swap, TOPNLMS can advise on sourcing these accessories alongside the F3PU20-0S to ensure a complete, self-contained maintenance kit is ready before the maintenance window opens.

Retrofit Guidance FAQ

Q: Do I need to modify any wiring when replacing the F3PU20-0S?
No. The F3PU20-0S uses the standard FA-M3 screw-terminal power connector. The existing 24 VDC supply wiring, grounding conductor, and any surge protection devices connected to the original module can be reconnected to the replacement unit without modification. Torque the terminal screws to the specified value (typically 0.5–0.6 N·m) and verify polarity before energizing.

Q: Will the CPU program be lost during the swap?
The FA-M3 CPU module retains its program in non-volatile flash memory independently of the power supply. Removing and replacing the F3PU20-0S does not erase or corrupt the CPU program. As a best practice, always back up the program to a PC using WIDE Field3 before any hardware maintenance.

Q: Is the F3PU20-0S compatible with all FA-M3 rack sizes?
The F3PU20-0S is compatible with all standard FA-M3 base units (F3BU04-0N, F3BU05-0N, F3BU09-0N, F3BU13-0N). It occupies the dedicated power supply slot (slot 0) and cannot be installed in a standard I/O slot. Confirm your base unit model before ordering.

Q: Can the F3PU20-0S replace an AC-input power supply module?
No. The F3PU20-0S accepts 24 VDC input only. If your existing installation uses an AC-input power supply variant, you must either retain the external AC/DC converter that feeds the rack or source the appropriate AC-input FA-M3 power supply module. Contact TOPNLMS with your existing module part number for a confirmed cross-reference.

Q: What communication protocols are supported after replacement?
The power supply module has no role in communication protocol handling. All protocols — including Modbus RTU/TCP, PROFIBUS-DP, FL-net, Ethernet/IP, and YOKOGAWA Vnet/IP — are managed by the CPU and dedicated communication modules. Replacing the F3PU20-0S has zero impact on network configuration or protocol operation.

Q: How do I verify the replacement unit before installing it in a live system?
Each F3PU20-0S shipped by TOPNLMS undergoes a bench power-on test and output voltage verification before dispatch. The functional test report is included with the shipment. On-site, you can verify output voltage at the backplane connector with a calibrated multimeter before seating the CPU and I/O modules.

Warranty Assurance

Every YOKOGAWA F3PU20-0S supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes a replacement dispatch within 3 business days of a confirmed defect report. Each unit is individually tested for output voltage stability, inrush current behavior, and thermal performance before packaging.

Shipments are dispatched from our Xiamen warehouse with full export documentation, including a commercial invoice, packing list, and certificate of origin. Express courier options (DHL, FedEx, UPS) are available for urgent replacement orders, with typical transit times of 3–7 business days to most industrial regions in Asia, Europe, and the Americas. For large-volume procurement or project-based orders requiring staged delivery, our sales team can arrange a blanket purchase order with scheduled release dates.

For technical pre-sales support, cross-reference confirmation, or warranty claims, contact our team directly:

📧 [email protected] | 📞 +86 18359293191
