YOKOGAWA F3PU20-0N Original Industrial Spare FA-M3 Compatible: Ensuring System Stability in Critical Automation Environments

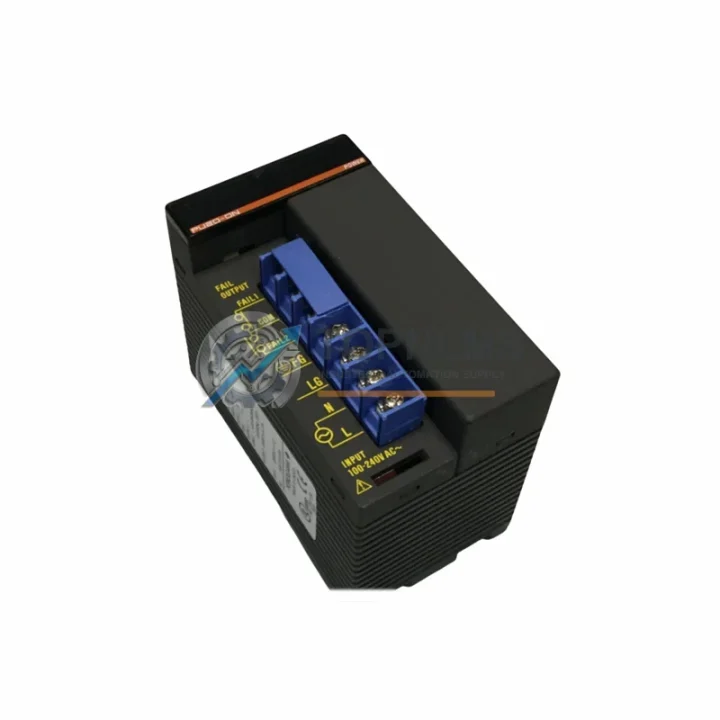

The YOKOGAWA F3PU20-0N is a genuine power supply module engineered for the FA-M3 Series programmable controller platform — one of YOKOGAWA’s most widely deployed process and factory automation architectures. In industrial facilities where continuous uptime is non-negotiable, the power supply module is the backbone of every control cabinet. A degraded or failed F3PU20-0N can cascade into full PLC rack shutdown, halting production lines, disrupting DCS loops, and triggering costly emergency maintenance windows. Stocking a verified original F3PU20-0N as a ready-to-deploy spare is one of the highest-value decisions a maintenance engineer can make.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned maintenance window for an FA-M3 control system, the power supply module should never be inspected in isolation. The F3PU20-0N supplies regulated DC power to every module seated in the rack — including CPU modules such as the F3SP71-4N or F3SP76-7N, digital I/O modules like the F3XD32-3N and F3YD32-3N, and analog I/O modules such as the F3AD08-0N. A power supply that is operating at the edge of its rated output current will cause intermittent resets across all of these modules, making fault diagnosis extremely difficult without first replacing the PSU.

During a cabinet inspection, maintenance teams should simultaneously verify the condition of the F3BU16-0N base unit for backplane connector wear, check the F3LC11-1N Ethernet communication module for firmware currency and link integrity, and inspect the F3NC96-0N network module if the system is integrated into a FOUNDATION Fieldbus or PROFIBUS segment. Terminal blocks and wiring harnesses connecting field instruments to I/O modules should be torque-checked, as loose connections under vibration can produce voltage fluctuations that stress the power supply’s regulation circuitry.

For facilities running legacy FA-M3 systems installed more than eight years ago, a proactive spare-parts strategy should include at minimum: one F3PU20-0N power supply module, one spare CPU module of the installed type, and at least one spare of each I/O module variant in active use. The F3WN0F1-01 wireless communication module and any installed F3RP61-2N Linux-based controller modules should also be evaluated for end-of-life status, as YOKOGAWA periodically discontinues older variants. Holding a tested, original spare eliminates the lead-time risk associated with emergency procurement — particularly critical in remote plant locations or during peak production seasons when downtime costs are highest.

Battery-backed memory modules, where installed alongside the F3PU20-0N in the same rack, should have their battery replacement intervals logged. A failing battery module can corrupt program memory on power cycle events, compounding the impact of a PSU failure. Coordinating the replacement of the power supply module with a battery inspection cycle is a best-practice maintenance pairing that reduces total cabinet intervention frequency.

Strategic Replacement Solutions

The F3PU20-0N is a direct replacement for earlier FA-M3 power supply variants that may have reached end-of-production status. Facilities that originally installed the FA-M3 platform in the early 2000s may be operating power supply modules that have accumulated 80,000+ operating hours — well beyond the typical MTBF threshold for electrolytic capacitors in the internal switching circuit. Replacing an aged PSU with a new, original F3PU20-0N restores full rated output current headroom, eliminates the risk of capacitor-related ripple voltage affecting CPU and I/O module performance, and resets the maintenance clock on the most failure-prone component in the rack.

Unlike third-party or refurbished alternatives, an original F3PU20-0N maintains full compatibility with YOKOGAWA’s FA-M3 system diagnostics, including the power supply status bits readable via the CPU’s self-diagnostic registers. This means maintenance engineers can continue to use YOKOGAWA’s ToolBox software for system health monitoring without any compatibility workarounds. The module slots directly into the existing base unit without firmware updates, configuration changes, or re-wiring — minimizing mean time to repair (MTTR) during an unplanned outage.

For plants managing multiple FA-M3 racks across different production zones, standardizing on a single PSU model (F3PU20-0N) across all racks simplifies spare-parts inventory, reduces procurement complexity, and ensures that any technician on site can perform a hot-swap replacement without consulting model-specific documentation. This standardization strategy is particularly valuable in multi-line manufacturing environments where control cabinets may be distributed across large floor areas.

Support FAQ

Q1: Is the F3PU20-0N compatible with all FA-M3 base unit sizes?
The F3PU20-0N is designed for FA-M3 base units including the 4-slot, 6-slot, 13-slot, and 16-slot configurations (F3BU04-0N through F3BU16-0N). It occupies the dedicated power supply slot on the left side of the base unit and is not interchangeable with CPU or I/O slots. Always verify your base unit model number before ordering.

Q2: What testing is performed before shipment?
Every F3PU20-0N unit is powered-on tested prior to dispatch. Output voltage regulation, overcurrent protection response, and LED status indicators are verified. Units are shipped in anti-static packaging with inspection documentation. A 12-month warranty covers defects in materials and workmanship from the date of receipt.

Q3: How do I verify compatibility with my existing FA-M3 system before installation?
Confirm your base unit model number (printed on the base unit label), check that your system’s total I/O module current draw does not exceed 20 A on the 5 VDC bus, and verify that no firmware-specific PSU variant is required by consulting your FA-M3 system configuration sheet. If you have the system’s ToolBox project file, the hardware configuration view will list the expected PSU model.

Q4: What is the recommended spare-parts holding quantity for a production facility?
For facilities with 1–3 FA-M3 racks, holding one F3PU20-0N spare is standard practice. Facilities with 4 or more racks, or those operating in high-criticality environments (continuous process, pharmaceutical, utilities), should hold a minimum of two units to cover simultaneous failure scenarios and allow one unit to remain in reserve during RMA processing. Annual inventory review against system age and operating hours is recommended.
