YOKOGAWA F3BU13-0N Original Industrial Spare — STARDOM FCN DCS Backplane System Stability

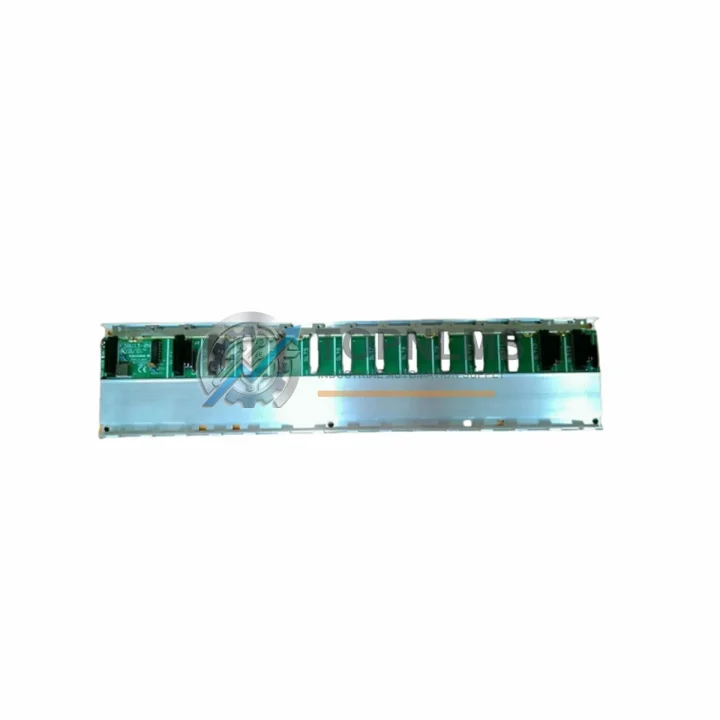

The YOKOGAWA F3BU13-0N is a 13-slot backplane base unit engineered for the STARDOM FCN/RTU distributed control system platform. As the structural and electrical backbone of the FCN controller rack, this base unit provides the passive bus interconnect that links the CPU module, I/O modules, power supply modules, and communication modules into a unified, deterministic control architecture. In industrial facilities where continuous process uptime is non-negotiable — refineries, chemical plants, water treatment stations, and power generation sites — the F3BU13-0N is a mission-critical spare that no maintenance team should be without.

Sourced directly from authorized supply channels and verified against YOKOGAWA’s original manufacturing specifications, every F3BU13-0N unit supplied by TOPNLMS undergoes pre-shipment functional inspection and is backed by a 12-month warranty. Whether you are executing a planned shutdown, responding to an unplanned fault, or building a strategic spare parts inventory to protect aging STARDOM FCN installations, this base unit delivers the exact form, fit, and function of the original factory component.

Critical Technical Specs

Preventive Maintenance Strategy

A backplane failure in a STARDOM FCN rack is a high-severity event: it simultaneously disables every module seated in that rack, including the CPU, all I/O channels, and any communication interfaces. This is why experienced maintenance engineers treat the F3BU13-0N not as a reactive replacement part but as a proactive inventory asset — one that should be on the shelf before it is ever needed.

During scheduled shutdowns or annual control cabinet inspections, the F3BU13-0N replacement is best executed as part of a broader rack-level audit. Begin by verifying the condition of the F3PU20-0S power supply module, which feeds regulated DC power to all slots through the backplane bus. A degraded power supply accelerates connector wear on the backplane and is a common root cause of intermittent slot faults. Simultaneously, inspect the F3SP58-6H or F3SP67-6S CPU module for firmware currency and battery backup status — the CPU’s real-time clock and program retention depend on an internal lithium cell that should be replaced on a 3–5 year cycle.

I/O module integrity is the next priority. The F3AD08-0N analog input module and F3DA04-0N analog output module should be checked for calibration drift, particularly in high-vibration or high-humidity environments. Digital I/O modules such as the F3XD32-3H input module and F3YD32-1H output module should be inspected for relay contact wear and terminal block tightness — loose terminals are a leading cause of spurious I/O faults that are often misdiagnosed as backplane issues.

Communication continuity is equally important. If your FCN rack uses the F3LC11-1F LONWORKS communication module or the F3LE01-5T Ethernet interface module, verify that network cables are properly seated and that module LEDs indicate healthy link status. In multi-rack STARDOM architectures, a communication module fault can cascade into system-wide alarm floods that mask the true fault source.

Finally, review the condition of terminal blocks and field wiring connected to I/O modules. Corroded or over-torqued terminals introduce resistance that degrades signal accuracy and can generate heat sufficient to damage module connectors. Pairing a backplane replacement with a full terminal inspection and re-torque cycle maximizes the value of the maintenance window and extends the operational life of the entire FCN rack assembly.

Strategic Replacement Solutions

Many STARDOM FCN installations have been in continuous service for 10–20 years. YOKOGAWA’s long-lifecycle support philosophy means that the F3BU13-0N remains the correct replacement for racks originally commissioned in the early 2000s through to current installations, with no hardware revision incompatibilities for standard FCN configurations. This backward compatibility is a significant advantage over competing DCS platforms that require full rack replacement when backplane components reach end-of-life.

For facilities managing multiple FCN racks, a standardized spare strategy — maintaining at least one F3BU13-0N per three operational racks — is a widely adopted industry benchmark. This ratio balances inventory carrying cost against the financial exposure of an unplanned rack-down event, which in process industries can exceed tens of thousands of dollars per hour in lost production. Procuring the F3BU13-0N through TOPNLMS provides access to tested, warranty-backed units with documented provenance, eliminating the quality risk associated with uncertified grey-market sources.

For sites transitioning from legacy STARDOM FCN to newer YOKOGAWA STARDOM FCN-RTU or CENTUM VP architectures, the F3BU13-0N continues to serve as the correct spare for any FCN rack that remains in service during the migration period. Hybrid architectures — where legacy FCN racks handle non-critical loops while new hardware manages primary control — are common during phased modernization projects, and maintaining FCN spare inventory through the transition is essential to avoiding unplanned outages during the cutover window.

Support FAQ

Q1: Is the F3BU13-0N compatible with all STARDOM FCN CPU and I/O modules?
Yes. The F3BU13-0N is the standard 13-slot backplane for the YOKOGAWA STARDOM FCN platform and is compatible with all FCN-series CPU modules (F3SP28, F3SP38, F3SP58, F3SP67), all standard I/O modules, power supply modules (F3PU20-0S), and communication modules. No firmware or hardware modification is required for direct replacement.

Q2: What pre-shipment testing does TOPNLMS perform on the F3BU13-0N?
Each unit undergoes visual inspection for physical damage, connector pin integrity verification, and bus continuity testing prior to shipment. Units are packed in anti-static, shock-absorbing packaging with a test report included. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: How quickly can the F3BU13-0N be replaced in the field during an unplanned outage?
With the FCN rack de-energized and all modules removed, a trained maintenance technician can complete a backplane swap in approximately 30–60 minutes, including module re-seating and system restart verification. TOPNLMS recommends maintaining a pre-configured spare rack with the backplane and power supply pre-installed to reduce mean time to repair (MTTR) to under 15 minutes.
