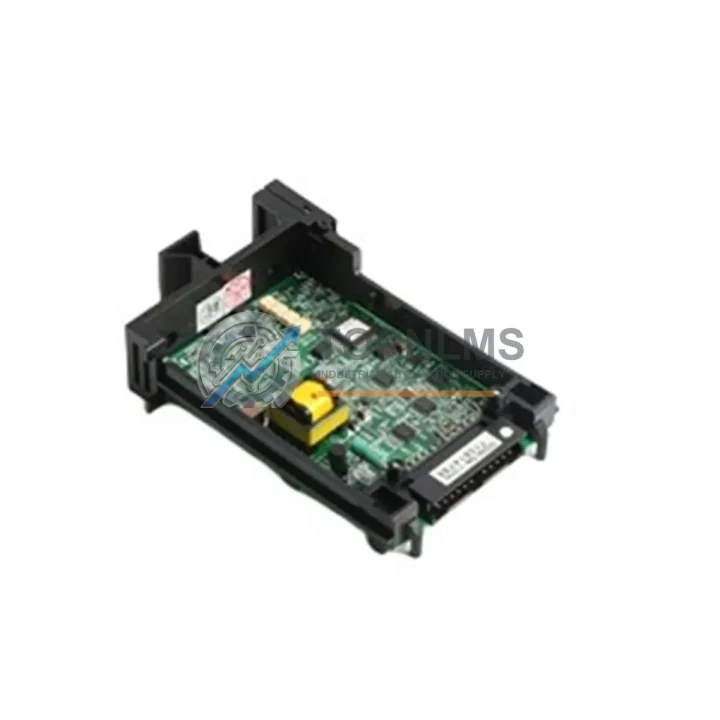

YOKOGAWA ER5*C Original Industrial Spare CENTUM Compatible

The YOKOGAWA ER5*C is an original RTD (Resistance Temperature Detector) input module designed for the YOKOGAWA CENTUM distributed control system (DCS) platform. As a precision temperature signal acquisition card, the ER5*C plays a mission-critical role in continuous process monitoring across refineries, chemical plants, power generation facilities, and heavy industrial environments. Whether you are executing a planned shutdown, responding to an unplanned fault, or building a strategic spare parts inventory, the ER5*C represents one of the highest-priority replacement components in any CENTUM-based control cabinet.

In industrial maintenance operations, temperature measurement accuracy is non-negotiable. The ER5*C accepts multi-channel RTD inputs — typically Pt100 or Pt1000 sensors — and converts resistance signals into precise digital values for the CENTUM DCS controller. Signal drift, connector wear, or module aging can introduce measurement errors that cascade into process instability, product quality deviations, or safety shutdowns. Replacing a degraded ER5*C with a genuine original module restores full measurement fidelity and eliminates the risk of false readings that could trigger unnecessary process trips or mask real temperature anomalies.

TOPNLMS maintains verified stock of the YOKOGAWA ER5*C, sourced from authorized supply chains. Every unit undergoes functional inspection and electrical verification prior to shipment, ensuring that the module you receive is ready for immediate installation without additional bench testing. A 12-month warranty is included with every order, covering manufacturing defects and functional failures under normal operating conditions.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for CENTUM DCS systems goes well beyond replacing a single module. When scheduling downtime to service or replace the ER5*C RTD input module, experienced maintenance engineers use the opportunity to inspect the entire signal acquisition chain and associated control infrastructure. This approach minimizes the number of planned shutdowns per year and reduces the risk of secondary failures occurring shortly after a primary repair.

During an ER5*C replacement, it is standard practice to simultaneously inspect the YOKOGAWA AAI141-S00 analog input module installed in adjacent I/O slots, as both modules share the same FCS backplane and power distribution rail. If the backplane shows signs of connector oxidation or mechanical stress, the YOKOGAWA ANB10D node unit or equivalent nest assembly should be evaluated for replacement as well. The YOKOGAWA AIP588 I/O power supply module that feeds the field control station should be load-tested during the same maintenance window — a marginal power supply is one of the most common root causes of intermittent RTD signal errors that are incorrectly attributed to the input module itself.

Signal wiring integrity is equally important. RTD circuits are low-resistance, low-signal-level connections that are highly sensitive to connector resistance and cable insulation degradation. Inspecting and re-terminating the field wiring at the YOKOGAWA TB series terminal blocks or equivalent marshalling cabinet terminal strips eliminates a significant source of measurement error. If the plant uses signal isolators between the field RTD sensors and the DCS input module, the YOKOGAWA MTL series signal conditioners or equivalent isolation barriers should be verified for calibration drift at the same time.

For CENTUM CS 3000 and CENTUM VP installations, the YOKOGAWA ACF11 communication module and YOKOGAWA ACP76 controller processor card are high-value components to keep in the spare parts cabinet alongside the ER5*C. A single unplanned failure of any of these modules can halt an entire process unit. Maintaining a minimum of one spare unit for each critical module type — including the ER5*C — is the industry-standard approach for continuous process plants operating 24/7.

Finally, HMI and engineering workstation connectivity should be verified during the maintenance window. The YOKOGAWA CENTUM VP EWS (Engineering Workstation) software configuration should be backed up before any module swap, ensuring that the replacement ER5*C can be commissioned with the correct tag assignments and range configurations without delay.

Strategic Replacement Solutions

The YOKOGAWA ER5*C has been deployed across multiple generations of CENTUM DCS installations, many of which have been in continuous operation for 15 to 25 years. As original equipment manufacturers progressively phase out legacy module variants, sourcing genuine original spare parts becomes increasingly challenging through standard distribution channels. TOPNLMS specializes in bridging this supply gap by maintaining verified inventory of hard-to-find CENTUM modules, including the ER5*C, for customers who need to extend the operational life of their existing DCS infrastructure without undertaking a full system migration.

Replacing an aging ER5*C with a genuine original module — rather than an unverified aftermarket substitute — preserves full compatibility with the CENTUM FCS backplane, eliminates firmware and calibration uncertainty, and ensures that the module integrates seamlessly with the existing CENTUM system configuration. This is particularly important in regulated industries such as pharmaceuticals, nuclear power, and food processing, where control system component changes may require formal change management documentation and validation. Using an original YOKOGAWA ER5*C simplifies the validation process and reduces the administrative burden associated with introducing non-original components.

For plants considering a phased migration from CENTUM CS or CENTUM CS 3000 to CENTUM VP, maintaining a reliable supply of ER5*C modules allows the migration to proceed on a planned schedule rather than being forced by an emergency failure. This strategic approach to spare parts management protects capital investment, maintains production continuity, and gives engineering teams the time needed to plan and execute a controlled system upgrade.

Support FAQ

Q1: What is the warranty coverage for the YOKOGAWA ER5*C?
Every ER5*C shipped by TOPNLMS includes a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If the module fails within the warranty period due to a covered defect, we will arrange replacement or repair at no additional cost.

Q2: Is the ER5*C tested before shipment?
Yes. All modules undergo electrical continuity checks and functional verification prior to dispatch. We do not ship untested stock. Inspection records are available upon request for quality-critical procurement processes.

Q3: How do I confirm compatibility with my existing CENTUM system?
The ER5*C is compatible with YOKOGAWA CENTUM CS, CENTUM CS 3000, and CENTUM VP field control stations. Please provide your FCS model number and I/O nest configuration when placing your order, and our technical team will confirm slot compatibility and any firmware considerations before shipment.

Q4: Can you support long-term or repeat procurement of the ER5*C?
Yes. TOPNLMS maintains ongoing inventory of CENTUM series modules and can support blanket orders, scheduled deliveries, and emergency same-day dispatch for critical maintenance situations. Contact us to discuss a supply agreement tailored to your plant’s maintenance schedule.
