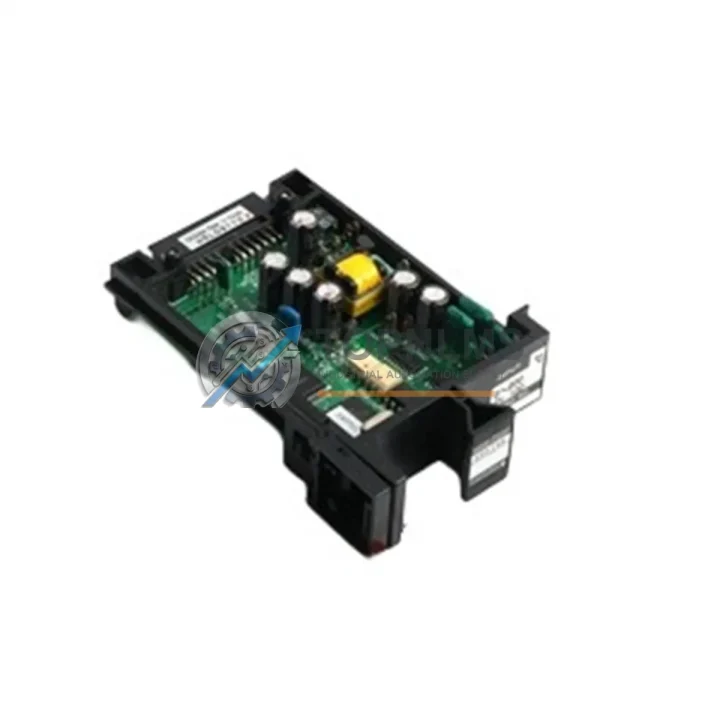

YOKOGAWA ER5*B Replacement/Upgrade for CENTUM VP CS 3000

Product Overview

YOKOGAWA ER5*B Replacement/Upgrade Solution for CENTUM VP & CS 3000: Seamless Transition from Legacy RTD Input Modules

The YOKOGAWA ER5*B is a 16-channel RTD (Resistance Temperature Detector) input module designed for use within the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. As YOKOGAWA progressively phases out legacy I/O hardware, many facilities operating CS 3000 or early-generation CENTUM VP systems are now facing the challenge of sourcing direct replacements for discontinued or end-of-life modules. The ER5*B remains one of the most critical field I/O components in temperature-intensive process industries including petrochemical, refinery, pharmaceutical, and power generation plants.

At TOPNLMS, we maintain verified stock of the YOKOGAWA ER5*B to support your DCS modernization, emergency replacement, and planned maintenance programs. Each unit is sourced from authorized supply chains, inspected prior to dispatch, and backed by a 12-month warranty covering manufacturing defects and functional failures.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the ER5*B is rarely an isolated task — it is typically part of a broader DCS I/O refresh or emergency maintenance event. During a CENTUM VP or CS 3000 I/O upgrade, engineers commonly need to address the entire signal chain and control architecture simultaneously to minimize downtime and ensure system integrity.

In most retrofit projects, the ER5*B is installed alongside the YOKOGAWA AMM12 analog input multiplexer or paired with AAI141 and AAI143 analog input modules to consolidate temperature and process variable acquisition across the same I/O rack. Where the system architecture includes fieldbus segments, the ALF111 FOUNDATION Fieldbus H1 communication module is often co-located in the same node unit to handle smart transmitter integration without requiring a separate gateway.

For facilities migrating from CS 3000 to CENTUM VP R6, the ANB10D node unit and AIP588 I/O power supply module are standard infrastructure components that must be verified for compatibility before the ER5*B swap is executed. In cases where the existing terminal assembly is worn or corroded, the TB805 terminal board provides a direct field-wiring interface that preserves existing cable runs without re-termination.

Control cabinet space is a frequent constraint in brownfield upgrades. The ER5*B’s compact form factor fits within the standard CENTUM VP I/O nest, and when combined with the AIP588 redundant power supply module, the overall footprint remains within the original cabinet envelope. For sites requiring signal isolation between legacy 4–20 mA loops and the new RTD inputs, a DIN-rail mounted signal isolator or the YOKOGAWA JUXTA series signal conditioner can be inserted at the marshalling panel without modifying the DCS rack configuration.

Where programming continuity is a concern, the ER5*B is recognized natively by CENTUM VP Engineering Environment (CAMS for HIS) and CS 3000 SCS Builder. No function block reassignment or I/O address remapping is required when replacing a like-for-like module in the same slot. For cross-generation migrations — such as moving from a CS 3000 FCS to a CENTUM VP PFCS — the YOKOGAWA RM-series engineering cable and associated download tools allow offline configuration verification before the module is inserted into the live rack.

Retrofit Guidance FAQ

Q: Can I replace the ER5*B without modifying field wiring?
A: Yes. The ER5*B uses the same 2-wire and 3-wire RTD terminal assignment as its predecessors in the CENTUM VP and CS 3000 I/O family. Existing field cables can be reconnected to the replacement module’s terminal board without re-labeling or re-routing, provided the terminal board (TB805 or equivalent) is in serviceable condition.

Q: Do I need to update the DCS program after swapping the module?
A: No program changes are required for a direct slot-for-slot replacement. The CENTUM VP FCS and CS 3000 FCS recognize the ER5*B by its hardware ID during the next controller scan cycle. Function blocks referencing the original I/O address remain valid. A forced download or partial download of the FCS configuration is not necessary unless the module is being installed in a new slot.

Q: Is the ER5*B compatible with FOUNDATION Fieldbus or HART instruments?
A: No. The ER5*B is a hardwired RTD input module and does not support FOUNDATION Fieldbus or HART communication. For smart transmitter integration, the ALF111 or AFF-series fieldbus modules should be used in parallel within the same node unit.

Q: What are the physical installation requirements?
A: The ER5*B occupies a single slot in the standard CENTUM VP or CS 3000 I/O nest. No tools are required for insertion — the module uses the standard card-edge locking mechanism. Ensure the node unit power supply (AIP588 or equivalent) is within its rated load capacity before adding the module to an existing rack.

Q: How do I verify the module is functioning after installation?
A: After insertion, the CENTUM VP HIS or CS 3000 operator station will display the module status in the hardware configuration view. Each channel can be individually verified by comparing the live RTD reading against a calibrated reference thermometer at the field junction box. YOKOGAWA’s CAMS for HIS diagnostic tool provides channel-level fault isolation without requiring a system shutdown.

Q: What communication protocol does the ER5*B use internally?
A: The ER5*B communicates with the FCS (Field Control Station) via YOKOGAWA’s proprietary V-net/IP or ESB bus, depending on the generation of the node unit. This is handled transparently by the DCS infrastructure — no protocol configuration is required at the module level.

Warranty Assurance

Every YOKOGAWA ER5*B shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes functional verification of all 16 RTD input channels, communication bus handshake testing, and visual inspection for physical damage or counterfeit indicators. Units that do not pass inspection are quarantined and never dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours for documented failures. We maintain reserve stock of the ER5*B specifically to support emergency replacement requests, with same-day dispatch available for orders confirmed before 15:00 CST from our Xiamen warehouse.

For procurement teams requiring documentation, we can provide a Certificate of Conformance, packing list, and commercial invoice with HS code declaration for customs clearance. Bulk orders for planned maintenance shutdowns are eligible for priority allocation and extended lead-time reservation.

TOPNLMS serves industrial facilities across Asia-Pacific, the Middle East, and Southeast Asia with a focus on DCS, PLC, and industrial automation spare parts. Our technical team is available to assist with compatibility verification, cross-reference checks, and retrofit planning before purchase.
