Yokogawa DX11*A S9081BE-0 Replacement for CENTUM

Product Overview

Yokogawa DX11*A S9081BE-0 Replacement for CENTUM: Smooth Migration & Upgrade Solution

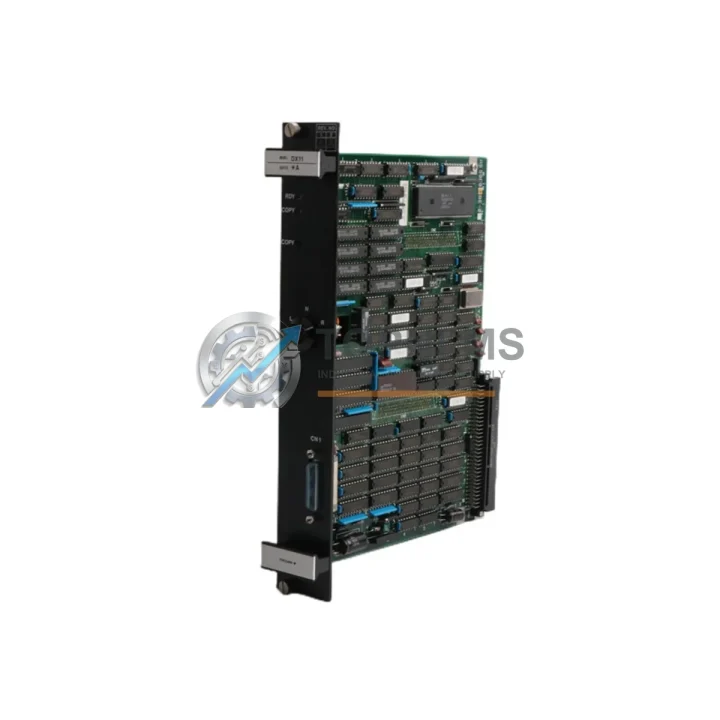

The Yokogawa DX11*A S9081BE-0 Duplex Control Card is a critical redundancy-capable processor module deployed across Yokogawa’s CENTUM VP, CENTUM CS 3000, and legacy CENTUM XL distributed control systems. As aging DCS infrastructure reaches end-of-life, facilities running on obsolete or discontinued control cards face escalating risks: unplanned shutdowns, unavailable spare parts, and mounting maintenance costs. TOPNLMS stocks verified DX11*A S9081BE-0 units to support seamless migration, emergency replacement, and planned system upgrades — minimizing downtime and protecting your process continuity.

Whether you are retiring a CENTUM CS 3000 node, consolidating control cabinets, or migrating to CENTUM VP architecture, the DX11*A S9081BE-0 provides a direct hardware replacement path with full compatibility across the existing CENTUM field control station (FCS) chassis and I/O bus infrastructure. No re-engineering of the control cabinet is required in most retrofit scenarios, and existing field wiring, terminal blocks, and I/O modules can be retained.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM DCS migration involves more than swapping the control card. During the upgrade process, engineers typically evaluate the entire field control station assembly. The DX11*A S9081BE-0 is commonly deployed alongside the Yokogawa PW481 power supply module, which provides the regulated 24 VDC rail required by the FCS chassis. In duplex configurations, a secondary power module is recommended to maintain redundancy at the power layer.

On the I/O side, the DX11*A S9081BE-0 interfaces with Yokogawa’s range of analog and digital I/O modules — including the AAI141-S00 analog input module and ADV151-P00 digital output module — via the ESB or RIO bus. These modules connect to field instruments through Yokogawa TB series terminal boards, which can be retained from the existing installation, eliminating the need for field rewiring during the control card swap.

For facilities migrating from CENTUM CS 3000 to CENTUM VP, the Vnet/IP communication module (such as the CP451 or equivalent network interface card) may need to be verified for firmware compatibility. In most cases, the existing Vnet/IP network infrastructure — including Ethernet switches and fiber optic couplers — remains fully usable. The Yokogawa CENTUM VP engineering workstation software (EWS) supports online download of control logic to the replacement DX11*A S9081BE-0 without requiring a full system shutdown, significantly reducing planned maintenance windows.

Where the legacy system included a Yokogawa HIS (Human Interface Station) running CENTUM CS 3000 HMI software, the migration to a replacement control card does not require HMI reconfiguration, as the process data tags and Vnet/IP addressing remain consistent. For sites also upgrading the operator interface, the Yokogawa FAST/TOOLS SCADA or a modern HMI panel can be integrated without disrupting the field control layer.

In applications where signal isolation is required between legacy field devices and the new control card — particularly in mixed-voltage or high-noise environments — signal isolators and Zener barriers compatible with the CENTUM I/O bus can be inserted without modifying the existing cabinet layout. The physical footprint of the DX11*A S9081BE-0 matches the original card slot dimensions, ensuring that control cabinet space allocation and cable management remain unchanged throughout the retrofit.

Retrofit Guidance FAQ

Q: Can I replace the DX11*A S9081BE-0 without shutting down the entire DCS?
A: In duplex (redundant) configurations, the standby control card can be replaced while the active card continues process control. A bumpless switchover is performed after the replacement card is installed and synchronized. For simplex installations, a planned shutdown window is required.

Q: Is the existing control logic compatible with the replacement card?
A: Yes. Control logic developed in the CENTUM CS 3000 or CENTUM VP Engineering Environment can be downloaded directly to the DX11*A S9081BE-0 without modification, provided the firmware version is compatible. TOPNLMS recommends verifying the target firmware revision prior to installation.

Q: Do I need to reconfigure the Vnet/IP communication settings?
A: No. The replacement card inherits the existing FCS domain address and Vnet/IP node configuration. Communication with the HIS, EWS, and other FCS nodes resumes automatically after the card initializes.

Q: Will the existing field wiring and terminal blocks need to be changed?
A: No. The DX11*A S9081BE-0 uses the same I/O bus interface as the original card. Field wiring connected to terminal boards and I/O modules does not need to be disturbed.

Q: What physical space is required in the control cabinet?
A: The DX11*A S9081BE-0 occupies a standard CENTUM FCS card slot. No additional space or bracket modification is required. The card slides directly into the existing slot position.

Q: How do I verify the card is functioning correctly after installation?
A: After installation, use the CENTUM VP or CS 3000 Engineering Environment to perform an online status check. The card’s LED indicators will confirm power, communication, and control status. TOPNLMS provides pre-shipment functional test documentation upon request.

Warranty Assurance

Every Yokogawa DX11*A S9081BE-0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each card undergoes a functional verification process including power-on testing, communication interface checks, and visual inspection for component integrity. Units that do not meet our quality standards are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed defect. Our after-sales response team is reachable within one business day for warranty inquiries, technical questions, and return merchandise authorization (RMA) processing. We maintain buffer stock of the DX11*A S9081BE-0 to support rapid replacement dispatch for critical process environments.

For procurement teams requiring documentation, we can provide a certificate of conformance, packing list, and commercial invoice at the time of shipment. Export compliance documentation for cross-border shipments is prepared in accordance with applicable trade regulations.

TOPNLMS ships globally from Xiamen, China, with standard lead times of 3–7 business days for in-stock units. Express courier options (DHL, FedEx, UPS) are available for emergency replacement scenarios. All units are packaged in anti-static protective packaging with foam cushioning to prevent transit damage.

Contact our industrial automation procurement team to confirm stock availability, request a quotation, or discuss your CENTUM DCS migration requirements.
