YOKOGAWA CP99A*A S9581AS-0 Replacement for CENTUM CS 3000

Product Overview

YOKOGAWA CP99A*A S9581AS-0 Replacement for CENTUM CS 3000: Smooth Migration & Legacy System Upgrade

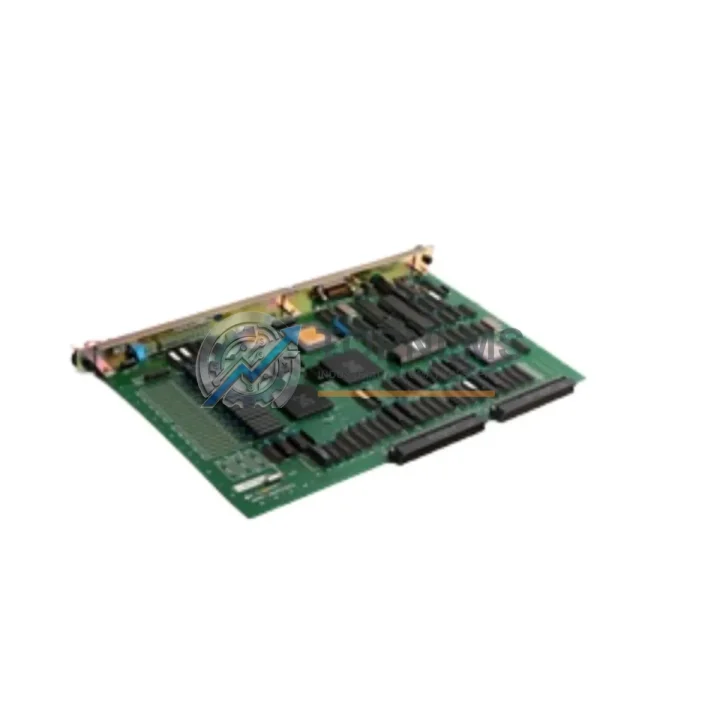

The YOKOGAWA CP99A*A S9581AS-0 is the Field Control Station (FCS) CPU Card at the heart of the CENTUM CS 3000 Distributed Control System. As YOKOGAWA progressively transitions its installed base toward the CENTUM VP platform, many facilities operating CS 3000 systems face the dual challenge of sourcing genuine replacement cards for ongoing maintenance while simultaneously planning a structured migration path. Whether your priority is an immediate like-for-like swap to restore production continuity or a phased upgrade that preserves existing wiring, I/O infrastructure, and control logic, this CP99A*A S9581AS-0 unit is sourced, tested, and ready to ship.

The CP99A*A S9581AS-0 functions as the central processing unit within the FCS node, executing control strategies downloaded from the CENTUM CS 3000 Engineering Environment. It communicates with the supervisory layer via the Vnet/IP or legacy Vnet control bus, depending on the generation of your CS 3000 installation. When replacing a failed or end-of-life CPU card, engineers must verify the firmware revision stamped on the card label against the system’s current software version to ensure compatibility. In most CS 3000 R3 and later installations, the CP99A*A S9581AS-0 is a direct plug-in replacement within the existing FCS chassis — no rewiring of field terminals, no modification to the EB401 or EB501 node bus couplers, and no changes to the ANB10D or ANB10S analog I/O modules already installed in the field.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FCS CPU card replacement rarely involves a single component in isolation. During a planned maintenance window or an emergency swap, field engineers typically work across several interconnected modules within the same FCS chassis and control cabinet. The CP99A*A S9581AS-0 sits alongside the CP345 communication processor, which manages Vnet/IP segment traffic; if the CP345 shows elevated error counts, it is prudent to inspect and potentially replace it during the same outage window. Similarly, the EB501 node bus coupler connecting the FCS to remote I/O nodes should be verified for contact integrity, as intermittent node bus faults are sometimes misdiagnosed as CPU failures.

On the I/O side, the AAI141-S analog input module and the AAI543-S analog output module are the most common field-side components that interact directly with the FCS CPU’s scan cycle. If the system has been running for more than a decade, proactive replacement of aging AAI141-S cards alongside the CPU card reduces the risk of a secondary failure shortly after the primary repair. The ADV151-P digital input module and ADV551-P digital output module serving discrete field devices should also be inspected for relay wear and terminal oxidation.

For facilities planning a longer-term migration from CS 3000 to CENTUM VP, the AFV10D Vnet/IP interface card and the FFCS-V Field Control Unit represent the next-generation equivalents. A phased migration strategy often involves running the new FFCS-V node in parallel with the existing CS 3000 FCS, using the AIP588 engineering workstation to manage dual-platform configurations during the transition period. The BCV1D bulk data conversion tool facilitates control logic migration, reducing manual re-engineering effort. Throughout this process, the existing field wiring, marshalling panels, and junction boxes typically remain unchanged, which is the primary cost justification for a phased rather than a full cutover approach.

Power supply integrity is another critical factor: the PW481 or PW482 redundant power supply modules feeding the FCS chassis should be load-tested before and after the CPU card replacement to confirm stable 24 VDC rail voltage. A marginal power supply that has been sustaining a degraded CPU card may itself be at end of life.

Retrofit Guidance FAQ

Q: Do I need to rewrite my control logic after replacing the CP99A*A S9581AS-0?
A: No. The control database resides in the CENTUM CS 3000 engineering server and is downloaded to the FCS after the new card is installed and the node comes online. No logic rewrite is required for a like-for-like replacement.

Q: Is field rewiring necessary?
A: No. The CP99A*A S9581AS-0 is an internal FCS card. All field wiring terminates at the I/O modules (e.g., AAI141-S, ADV151-P) and node bus couplers (EB401/EB501), which remain untouched during a CPU card swap.

Q: What communication protocols does this card support?
A: The FCS CPU communicates over Yokogawa’s proprietary Vnet and Vnet/IP control bus. It does not natively expose PROFIBUS, MODBUS, or HART at the CPU level — those protocols are handled by dedicated communication modules within the same FCS chassis.

Q: How do I verify firmware compatibility before installation?
A: Check the firmware revision printed on the card label and cross-reference it with the CS 3000 system software version documented in your engineering server. Contact our technical team with your system’s software version and we will confirm compatibility before shipment.

Q: Can this card be used in a redundant FCS configuration?
A: Yes. The CP99A*A S9581AS-0 supports redundant FCS pairing. Ensure both the primary and secondary CPU cards carry matching firmware revisions for seamless bumpless switchover.

Q: What is the physical installation procedure?
A: Power down the FCS node (or switch to the redundant node if configured), extract the failed card from its slot, insert the replacement CP99A*A S9581AS-0, restore power, and initiate a database download from the engineering server. Total installation time is typically under 30 minutes for experienced engineers.

Warranty Assurance

Every CP99A*A S9581AS-0 unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each card undergoes functional verification including power-on self-test, communication bus check, and visual inspection for component integrity. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

If a unit exhibits any defect in materials or workmanship within the warranty period, TOPNLMS will provide a replacement unit or full refund at no additional cost. Our technical support team is available to assist with installation queries, firmware compatibility questions, and system integration guidance. Typical order processing time is 1–3 business days, with express shipping options available for emergency breakdown situations. We ship globally from Xiamen, China, with DHL, FedEx, and UPS express services covering most industrial regions within 3–7 business days.

For volume procurement, long-term supply agreements, or consignment stock arrangements, please contact our sales team directly to discuss pricing, lead times, and quality documentation packages including test reports and certificates of conformance.
