YOKOGAWA CP461-50-S2 Original Industrial Spare CS3000: System Stability & Redundant Control Assurance

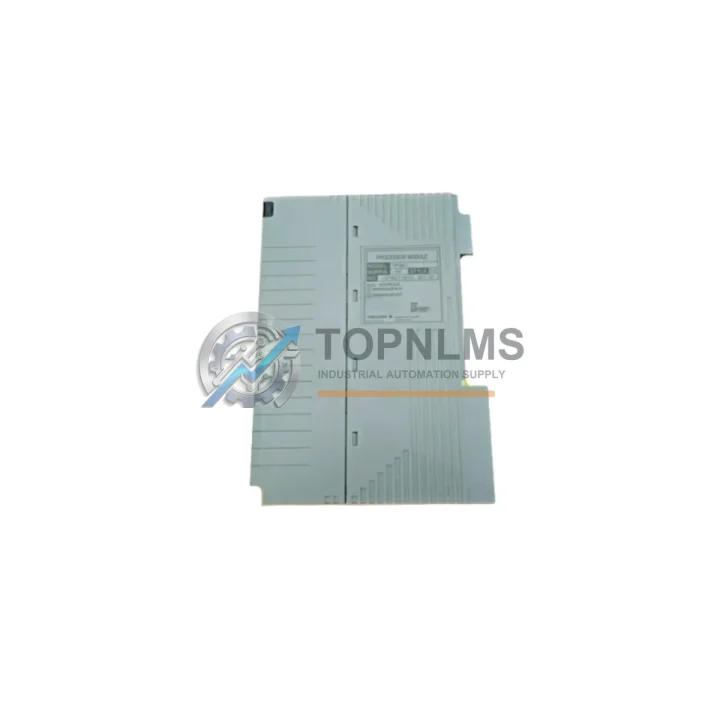

The YOKOGAWA CP461-50-S2 is an original redundant Field Control Station (FCS) processor module engineered for the CENTUM CS3000 Distributed Control System. In continuous-process industries — oil refining, petrochemicals, power generation, and specialty chemicals — the FCS processor is the heartbeat of the control loop. A failed or degraded processor module can cascade into full unit shutdown within seconds. Holding a verified original CP461-50-S2 in your critical spare inventory is one of the highest-return investments a reliability team can make to protect process uptime and operator safety.

The CENTUM CS3000 architecture is built around tight hardware-software integration. The CP461-50-S2 operates in a dual-redundant configuration, with the standby module performing continuous self-diagnostics and hot-standby switchover in under 100 milliseconds. This seamless bumpless transfer is only guaranteed when the replacement module is a genuine YOKOGAWA original — third-party or counterfeit modules risk incompatible firmware handshake protocols that can prevent successful switchover, defeating the entire purpose of redundancy.

Critical Technical Specs Table

Preventive Maintenance Strategy

The CP461-50-S2 processor module sits at the top of the FCS hardware hierarchy, but its reliability depends on the health of every module in the same station chassis. A disciplined preventive maintenance program for a CENTUM CS3000 FCS cabinet should treat the processor module as part of an integrated system, not an isolated component.

During a planned turnaround or annual inspection, maintenance teams should simultaneously audit the YOKOGAWA PW481 or PW482 FCS power supply module for output voltage stability and capacitor aging. A power supply that is drifting toward its lower voltage tolerance will cause intermittent processor resets long before it triggers a hard fault alarm. Replacing an aging power supply at the same time as a scheduled processor swap eliminates a common source of repeat callouts.

The YOKOGAWA EB401 or EB501 ESB bus coupler connecting the processor to the I/O nest should be inspected for connector wear and firmware version compatibility. Mismatched firmware between the CP461-50-S2 and the ESB coupler is a known source of communication timeouts that can be misdiagnosed as processor failure. Verifying coupler firmware during the same maintenance window prevents this diagnostic trap.

On the I/O side, the YOKOGAWA AAI141 analog input module and AAI543 analog output module should be checked for channel drift using a calibrated signal source. Drifted I/O channels can cause the FCS to generate spurious control actions that stress the processor’s scan cycle. Addressing I/O calibration before restoring the processor to active duty ensures the control loop returns to stable operation immediately after switchover.

The YOKOGAWA ALR111 alarm module and any DI/DO relay output modules (such as the ADV151 or ADV161) in the same FCS nest should also be tested for contact integrity and response time. Sticky relay contacts or slow digital output response can mask process upsets that the new processor module would otherwise detect and respond to correctly.

For sites using the YOKOGAWA AIP588 Vnet/IP interface module to bridge the CS3000 V-net to an Ethernet backbone, the interface module’s link status and packet error rate should be logged before and after the processor replacement. A degraded network interface can cause the new processor to appear unresponsive on the engineering workstation, leading to unnecessary re-replacement of a perfectly functional module.

Finally, the YOKOGAWA CENTUM CS3000 engineering workstation (running R3.09 or later) should have its project database backed up and the FCS definition file exported before any processor swap. This ensures that if the replacement module requires a firmware download, the correct FCS configuration is available immediately without searching for archived project files.

Strategic Replacement Solutions

The CP461-50-S2 is a direct replacement for failed or end-of-life processor modules in any CENTUM CS3000 FCS cabinet configured for dual-redundant operation. No hardware modification to the FCS chassis is required — the module slots into the existing backplane and adopts the active FCS configuration from the surviving redundant partner within one scan cycle.

For sites running the older YOKOGAWA CENTUM CS (first generation) or CENTUM-XL platforms, the CP461-50-S2 is not a direct cross-series replacement, but it is the correct migration target when upgrading an FCS cabinet to CS3000 specification. YOKOGAWA’s documented migration path allows the CS3000 FCS to coexist on the same V-net segment as legacy CS stations during a phased upgrade, reducing the capital cost and operational risk of a full cutover.

Sites that have already migrated to YOKOGAWA CENTUM VP can use the CP461-50-S2 as a backward-compatible spare for any CS3000 FCS cabinets retained in the plant during the transition period. This cross-generation compatibility makes the CP461-50-S2 a strategically valuable spare that protects both the legacy CS3000 investment and the VP migration timeline.

Stocking one CP461-50-S2 per redundant FCS pair — rather than one per plant — is a common and cost-effective strategy for sites with multiple identical FCS cabinets. A single verified spare can cover any cabinet in the plant, provided the FCS configuration files are maintained in a central project database and can be downloaded to the replacement module within the maintenance window.
