Yokogawa ASS9881 DE-02 Replacement for CENTUM VP CS 3000

Product Overview

Yokogawa ASS9881 DE-02 Replacement for CENTUM VP CS 3000: Smooth Migration & Legacy System Upgrade

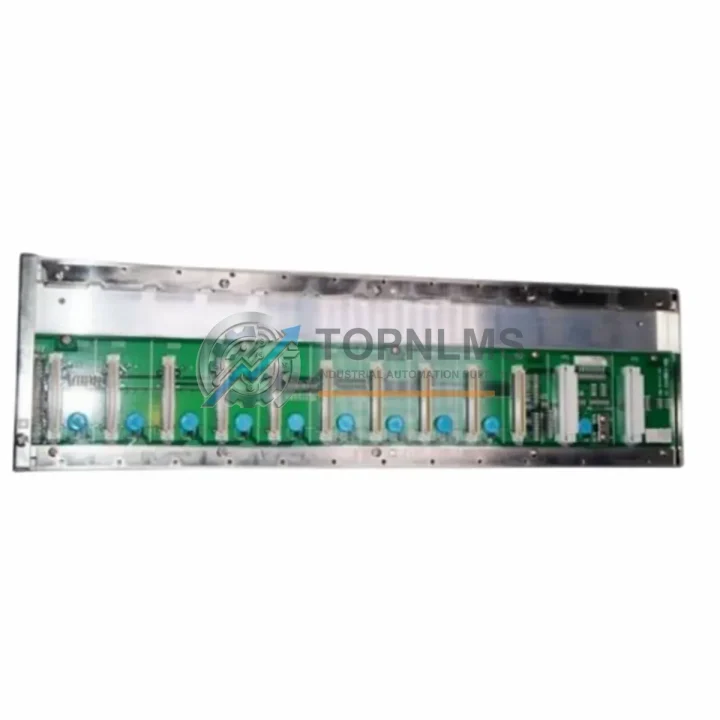

The Yokogawa ASS9881 DE-02 is a critical DCS backplane module used extensively in CENTUM VP and CS 3000 distributed control system architectures. As Yokogawa progressively phases out legacy CS 3000 hardware, many process plants, refineries, chemical facilities, and power generation sites are facing urgent decisions: source a verified replacement module to extend the life of their existing system, or plan a structured migration to the current CENTUM VP platform. TOPNLMS supplies the ASS9881 DE-02 as a tested, ready-to-ship replacement module with a 12-month warranty, supporting both strategies.

Whether your facility is running a CS 3000 R3 system with aging backplanes or managing a hybrid CENTUM VP environment where a failed DE-02 module has caused a partial shutdown, this replacement unit is engineered to restore full system operation with minimal downtime. Our stock is sourced from verified industrial channels, inspected against Yokogawa’s original hardware specifications, and dispatched from Xiamen with full documentation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ASS9881 DE-02 replacement rarely happens in isolation. In most CS 3000 to CENTUM VP migration projects, the backplane module is just one component in a broader system refresh. During the upgrade process, engineers typically also address the Yokogawa PW481 or PW482 power supply module to ensure stable 24 VDC rail delivery to the new backplane. If the facility is transitioning from V-net to Vnet/IP communication, the Yokogawa CP451 or CP461 field control station (FCS) may need to be updated or replaced alongside the backplane to support the new network topology.

For I/O-intensive applications, the migration often involves re-terminating existing field wiring to Yokogawa AAI141 or AAI143 analog input modules, which slot directly into the DE-series backplane and retain the original 4–20 mA signal wiring without modification. Digital I/O channels are commonly handled by ADV151 or ADV161 digital input/output modules, which are fully compatible with the ASS9881 DE-02 backplane slot architecture.

In facilities where the CS 3000 system communicates with third-party PLCs or SCADA systems via Modbus or PROFIBUS, the Yokogawa ALR111 communication module is frequently part of the migration BOM, enabling protocol bridging without changes to the host control program. For sites upgrading their HMI layer in parallel, the Yokogawa FAST/TOOLS or Exaopc OPC server interface is often reconfigured to recognize the new backplane addressing after the DE-02 swap.

Cabinet-level upgrades may also involve replacing aging Yokogawa ESB bus interface modules or adding signal isolators and terminal multipliers to accommodate expanded I/O counts in the modernized rack. TOPNLMS can source these complementary components to support a complete, single-vendor procurement for your migration project.

Retrofit Guidance FAQ

Q: Can I replace the ASS9881 DE-02 without modifying field wiring?
A: Yes. The DE-02 backplane uses the same terminal block interface as the original CS 3000 backplane. Field wiring connected to I/O modules mounted on the backplane does not need to be changed for a like-for-like replacement.

Q: Do I need to re-download the FCS program after replacing the backplane?
A: In a pure CS 3000 environment, a like-for-like DE-02 replacement typically does not require a full FCS re-download. However, if the replacement is part of a CENTUM VP migration or if the FCS node address has changed, a parameter re-download from the Engineering Workplace (EWS) is recommended.

Q: Is the ASS9881 DE-02 compatible with Vnet/IP communication?
A: The DE-02 backplane itself is passive in terms of network protocol — communication is managed by the FCS controller seated in the backplane. If your FCS supports Vnet/IP (e.g., CP451-50 or later), the backplane will operate correctly on a Vnet/IP network.

Q: What physical space does the ASS9881 DE-02 require?
A: The module fits standard Yokogawa 19-inch DCS cabinets and is dimensionally identical to the original CS 3000 backplane it replaces. No cabinet modification, rail adjustment, or additional mounting hardware is required.

Q: Can this backplane support both analog and digital I/O modules simultaneously?
A: Yes. The DE-02 backplane supports mixed I/O configurations. Analog modules (e.g., AAI141, AAR181) and digital modules (e.g., ADV151, ADO141) can be installed in the same backplane according to the slot assignment defined in the FCS configuration.

Q: What if my system uses a discontinued CS 3000 FCS that is no longer available?
A: TOPNLMS maintains stock of multiple CS 3000 and CENTUM VP controller and I/O modules. Contact our team at [email protected] to discuss a complete system assessment and sourcing plan for discontinued components.

Warranty Assurance

Every ASS9881 DE-02 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and compatibility with Yokogawa DE-series slot specifications. Units that do not pass inspection are not shipped.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a refund, subject to return inspection. Our after-sales response time is within 24 business hours for warranty claims submitted via email. We support customers across mainland China, Southeast Asia, the Middle East, and international markets with DHL, FedEx, and sea freight options depending on urgency and order volume.

For procurement teams requiring documentation, we can provide a commercial invoice, packing list, and test report upon request. Bulk orders for plant turnaround or MRO stocking programs are welcome — contact us to discuss lead times, pricing, and consignment options.
