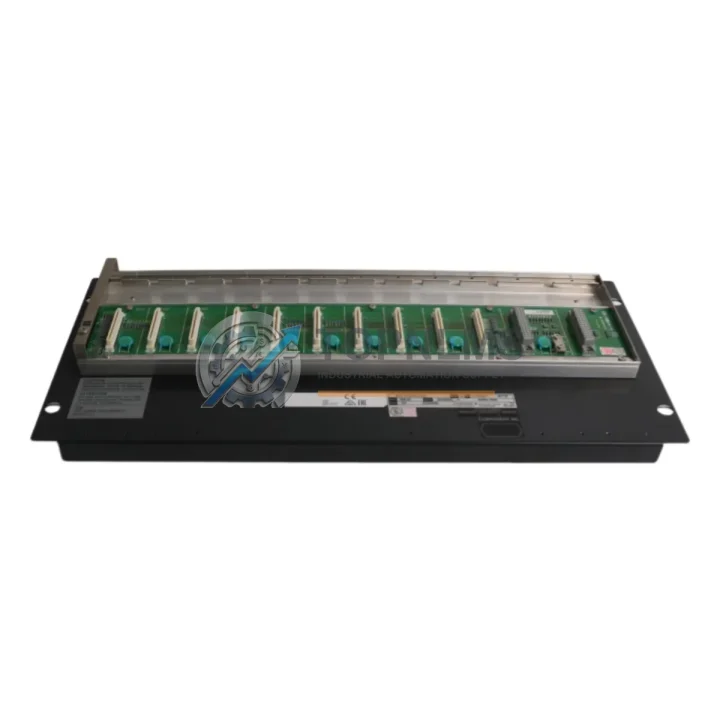

Yokogawa ANB10D-427/CU2T Ruggedized ESB Bus Node for Harsh Environments

Product Overview

Yokogawa ANB10D-427/CU2T Ruggedized ESB Bus Node for Harsh Environments

The Yokogawa ANB10D-427/CU2T is a high-integrity ESB (Enhanced Serial Bus) Bus Node Unit engineered for the CENTUM series Distributed Control System (DCS) platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and electrically noisy heavy manufacturing floors — this module delivers the field-level communication backbone that modern continuous production lines depend on.

As a critical field interface component within the CENTUM VP and CENTUM CS 3000 architectures, the ANB10D-427/CU2T bridges the gap between field instruments and the central control domain. Its ruggedized construction ensures stable ESB bus communication even under persistent mechanical vibration, electromagnetic interference (EMI), and wide ambient temperature swings — conditions routinely encountered in oil and gas upstream facilities, petrochemical refineries, power generation plants, and metallurgical processing lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The ANB10D-427/CU2T does not operate in isolation — it is the communication hub that ties together an entire ecosystem of field-level and cabinet-level hardware. In a typical CENTUM DCS cabinet, this bus node unit works in concert with Yokogawa AAI141-S00 Analog Input Modules and AAI543-H00 Analog Output Modules, receiving and transmitting 4–20 mA process signals from transmitters and positioners across the plant floor. Paired with ADV151-P00 Digital Input Modules and ADV551-P00 Digital Output Modules, the ANB10D-427/CU2T enables discrete control of motor starters, solenoid valves, and safety interlocks without introducing latency into the control loop.

For power integrity — a non-negotiable requirement in continuous process environments — the ANB10D-427/CU2T is typically installed alongside Yokogawa PW481 DCS Power Supply Units, which provide the stable 24 VDC rail that the ESB subsystem requires. In facilities where power redundancy is mandated by functional safety standards, dual PW481 configurations are common, and the ANB10D-427/CU2T is fully compatible with such redundant power architectures.

Communication integrity is further reinforced when the ANB10D-427/CU2T is deployed alongside Yokogawa ALR111 FOUNDATION Fieldbus H1 Interface Modules or ALE111 PROFIBUS DP Interface Modules, enabling the CENTUM system to communicate with field devices using open industrial protocols. In safety-instrumented systems (SIS), the bus node unit frequently operates in the same control cabinet as Yokogawa ProSafe-RS Safety Controller Modules, ensuring that the DCS and SIS layers share a common physical infrastructure while maintaining logical independence as required by IEC 61511.

Terminal block assemblies — including Yokogawa TB Series Field Terminal Boards — provide the physical wiring interface between the ANB10D-427/CU2T’s I/O subsystem and field cable trays, simplifying maintenance and reducing the risk of wiring errors during commissioning or module replacement. In high-vibration environments such as compressor stations or rolling mills, these terminal boards are secured with anti-vibration mounting hardware to prevent intermittent connections that could trigger spurious alarms or process shutdowns.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the ANB10D-427/CU2T serves as the field communication backbone for wellhead control panels, separator control loops, and pipeline SCADA integration points. Its tolerance for wide temperature ranges and high EMI environments — characteristic of facilities with large rotating machinery and high-voltage switchgear — makes it a preferred choice for operators who cannot afford unplanned downtime.

In thermal and hydroelectric power generation plants, the module manages the ESB communication between boiler control I/O subsystems and the CENTUM VP operator stations, supporting turbine speed control, steam pressure regulation, and generator protection relay interfaces. The deterministic communication latency of the ESB bus ensures that control loop response times remain within the tight tolerances required for grid-frequency regulation.

In water and wastewater treatment facilities, the ANB10D-427/CU2T is deployed in high-humidity pump stations and chemical dosing control rooms, where its non-condensing humidity tolerance and corrosion-resistant construction provide long service life without requiring frequent preventive maintenance. Municipal utilities operating CENTUM-based SCADA systems rely on this module for continuous monitoring of flow rates, chemical feed rates, and effluent quality parameters.

In metallurgical and mining operations — including blast furnace control, continuous casting lines, and ore processing plants — the module withstands the combination of high ambient temperatures, heavy dust loading, and intense electromagnetic interference generated by large electric arc furnaces and variable-frequency drives. Its robust ESB bus communication ensures that process data from hundreds of field instruments reaches the control room without corruption or packet loss, even under these extreme conditions.

Security & Quality FAQ

Q1: What warranty coverage is provided with the ANB10D-427/CU2T?
Every ANB10D-427/CU2T unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our warranty process is straightforward: if a unit fails within the warranty period, we arrange replacement or repair with minimal lead time to protect your production continuity.

Q2: How is each unit tested before shipment?
All ANB10D-427/CU2T modules undergo a multi-point functional verification process prior to dispatch. This includes power-on self-test confirmation, ESB bus communication integrity checks, and visual inspection for physical damage or component degradation. Units that do not pass our outgoing quality control protocol are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the ANB10D-427/CU2T compatible with both CENTUM VP and CENTUM CS 3000 systems?
Yes. The ANB10D-427/CU2T is designed for use within the Yokogawa CENTUM DCS platform and is compatible with both the CENTUM CS 3000 and CENTUM VP system architectures. It integrates directly into the ESB I/O subsystem without requiring firmware modifications or additional interface hardware, making it a direct drop-in replacement for failed or end-of-life units in existing installations.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. TOPNLMS maintains ongoing inventory of Yokogawa CENTUM DCS components, including the ANB10D-427/CU2T, to support both emergency spare-part replacement and planned maintenance procurement programs. We work with plant engineers and procurement teams to establish standing supply agreements, ensuring that critical spare modules are available when needed — without the extended lead times associated with OEM direct orders. Contact us at [email protected] or +86 18359293191 to discuss your site’s long-term spare parts strategy.
