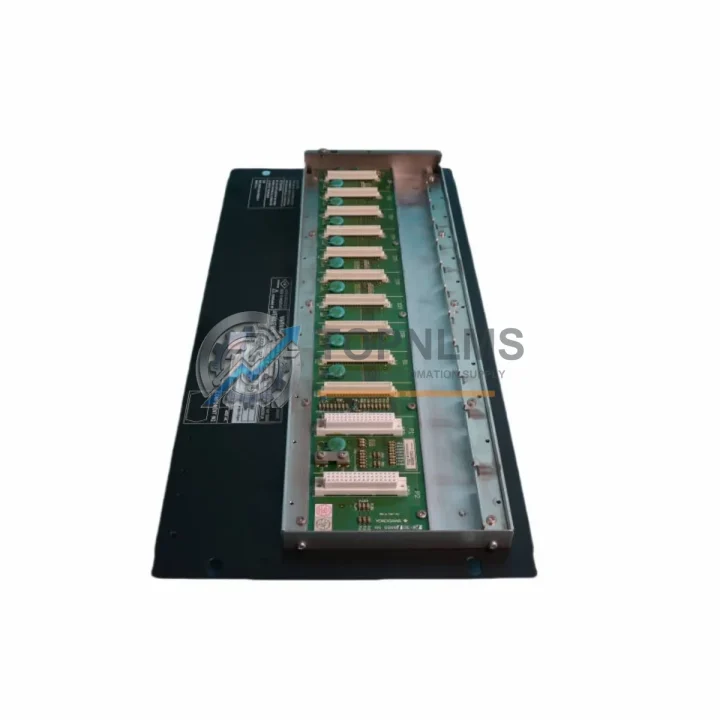

Yokogawa ANB10D-421-S1 Replacement for CENTUM CS/VP: Seamless ESB Bus Node Migration

When a Yokogawa CENTUM CS or CENTUM VP distributed control system loses its ESB Bus Node Unit, every minute of unplanned downtime translates directly into lost production and escalating maintenance costs. The Yokogawa ANB10D-421-S1 is the original ESB Bus Node module designed to restore full communication integrity between field control stations and the engineering/operator stations in both legacy CENTUM CS and current CENTUM VP architectures. Whether you are executing a planned migration from an aging CENTUM CS installation or performing an emergency replacement on a running CENTUM VP system, the ANB10D-421-S1 provides the exact electrical and protocol compatibility required for a smooth, low-risk transition.

The ESB (Enhanced Serial Backplane) bus is the communication backbone that links Field Control Units (FCUs), I/O modules, and the supervisory layer in Yokogawa’s CENTUM platform. A degraded or failed bus node introduces intermittent communication faults, I/O scan delays, and in worst cases, a complete loss of process visibility. Sourcing a verified, tested ANB10D-421-S1 from stock — rather than waiting weeks for a factory order — is often the difference between a four-hour maintenance window and a multi-day production halt.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from CENTUM CS to CENTUM VP — or a like-for-like replacement within an existing VP system — rarely involves a single module in isolation. The ANB10D-421-S1 sits at the heart of the ESB communication chain, and its replacement is most effective when the surrounding architecture is evaluated at the same time.

During the bus node swap, maintenance engineers should inspect the FCU (Field Control Unit) chassis — typically an AFV10D or AFV30D series unit — for signs of backplane connector wear or corrosion, as a degraded backplane can cause the same communication symptoms as a failed bus node and will shorten the life of a newly installed ANB10D-421-S1. If the FCU itself is a legacy CENTUM CS model, this is an ideal opportunity to evaluate migration to a CENTUM VP-compatible FCU to future-proof the control node.

The ESB cable assemblies connecting the ANB10D-421-S1 to adjacent nodes and to the V-net/ESB trunk should be tested for continuity and shielding integrity. Aged or kinked ESB cables are a common source of intermittent bus errors that are frequently misdiagnosed as module failures. Replacing the bus node without inspecting the cable plant can result in repeat faults within months.

On the I/O side, the AAI141-S03 and AAI841-S03 analog input/output modules mounted in the same FCU station should be verified for firmware compatibility with the CENTUM VP release running on the engineering workstation. In mixed CS/VP environments, I/O module firmware mismatches can cause subtle scaling errors that only appear under specific process conditions. Similarly, ADV151-P00 and ADV551-P00 digital I/O modules should be confirmed against the current CENTUM VP I/O module compatibility matrix.

For sites migrating from CENTUM CS 3000 to CENTUM VP, the BCV1D Vnet/IP communication module is often introduced alongside the ANB10D-421-S1 replacement to enable the higher-bandwidth Vnet/IP supervisory network while retaining the existing ESB field bus infrastructure. This hybrid architecture allows a phased migration — upgrading the supervisory layer first without disturbing field wiring or FCU configurations.

The power supply modules feeding the FCU station — typically the PW481 or PW482 series — should be load-tested during any bus node maintenance window. A bus node replacement that coincides with a marginal power supply can result in a system restart that is incorrectly attributed to the new module. Confirming power supply health before and after the swap eliminates this diagnostic ambiguity.

If the site uses CENTUM VP Engineering Workstation (EWS) software for online monitoring, ensure the system builder project is backed up before any hardware change. The ANB10D-421-S1 node address must match the address defined in the system builder configuration; a mismatch will prevent the node from being recognized by the supervisory layer even if the module is electrically functional.

For facilities managing multiple CENTUM nodes across a large plant, maintaining a small buffer stock of ANB10D-421-S1 units — alongside spare communication interface cards and terminal assembly modules — is a recognized best practice in Yokogawa DCS lifecycle management. The cost of holding two spare bus nodes is negligible compared to the production loss from a single unplanned outage caused by a failed node with no replacement on hand.

All units supplied by TOPNLMS are sourced from verified industrial channels, individually powered-on and communication-tested prior to shipment, and shipped with full ESD-protective packaging. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express courier options available for urgent requirements.

Retrofit Guidance FAQ

Q1: Can the ANB10D-421-S1 be installed in a running CENTUM VP system without a full shutdown?
Yes, in most CENTUM VP configurations the ESB Bus Node supports hot-swap replacement while the FCU station remains in run mode, provided the replacement procedure in Yokogawa’s maintenance manual (IM 33J01B30-01EN or equivalent) is followed precisely. The node address must be set on the replacement module before insertion, and the system builder must be in online mode to recognize the new node automatically. A brief I/O scan interruption of 1–3 seconds is typical during node re-initialization.

Q2: Is the ANB10D-421-S1 compatible with both CENTUM CS 3000 and CENTUM VP without hardware modification?
Yes. The ANB10D-421-S1 uses the same ESB bus protocol and physical connector standard across both platforms. No hardware modification is required. However, sites running CENTUM CS 3000 R3 or earlier should verify that the system builder software version supports the -S1 hardware revision before installation. In practice, the vast majority of CS 3000 installations from R3.08 onward are fully compatible.

Q3: How do I verify the node address configuration before installing the replacement module?
The node address of the failed module can be read from the CENTUM VP system builder’s hardware configuration view, or from the physical label on the original module if it is still partially functional. The ANB10D-421-S1 uses a rotary switch on the module front panel to set the node address (0–F in hexadecimal). Set the address on the bench before installation to avoid a node conflict on the ESB bus, which would prevent both the old and new nodes from communicating.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers all electrical and functional defects from the date of shipment. Each ANB10D-421-S1 unit is tested for ESB bus communication, power consumption within specification, and LED status indicator function before dispatch. In the event of a warranty claim, contact TOPNLMS at [email protected] with the order number and a description of the fault. Replacement units are dispatched within 3 business days of claim verification. Physical damage caused by incorrect installation, ESD mishandling, or overvoltage is excluded from warranty coverage.

Warranty Assurance

Every Yokogawa ANB10D-421-S1 supplied by TOPNLMS carries a 12-month warranty from the date of shipment. Our pre-shipment testing protocol includes ESB bus communication verification, power rail measurement, visual inspection for connector pin integrity, and functional LED status confirmation. Units that do not pass all test criteria are quarantined and not shipped.

We understand that industrial spare parts procurement is a trust-based decision. Maintenance managers and procurement engineers need confidence that a replacement module will perform identically to the original — not just on arrival, but throughout the warranty period. Our after-sales support team responds to technical inquiries within 24 hours on business days, and warranty replacement logistics are handled without requiring the customer to return the defective unit before the replacement is dispatched in most cases.

For bulk orders or standing purchase agreements covering multiple ANB10D-421-S1 units or related CENTUM VP spare parts, please contact our sales team directly to discuss pricing, lead times, and consignment stock arrangements.
