Yokogawa ANB10D-415/CU2N Replacement for CENTUM CS3000

Product Overview

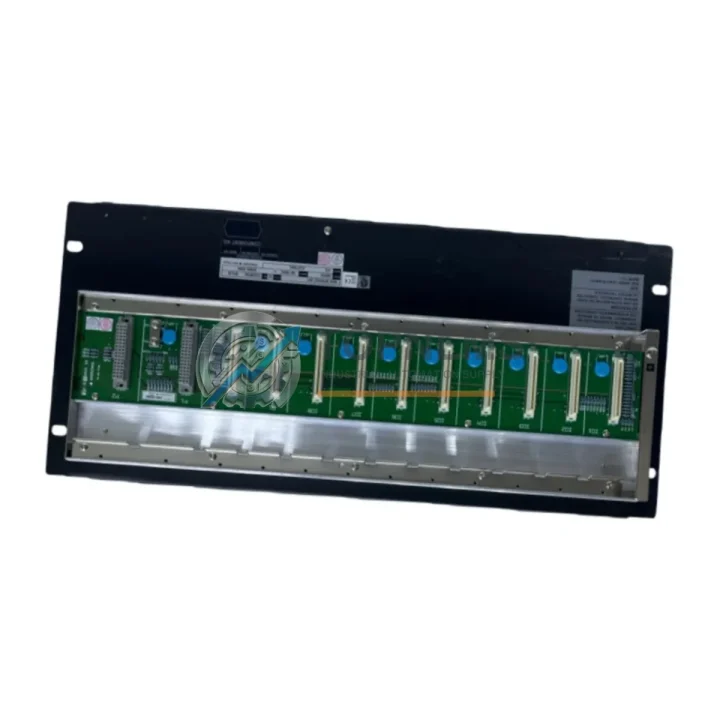

Yokogawa ANB10D-415/CU2N Replacement for CENTUM CS3000: Seamless ESB Bus Node Upgrade

The Yokogawa ANB10D-415/CU2N is a critical ESB (Enhanced Signal Bus) Bus Node Unit designed for the CENTUM CS3000 Distributed Control System platform. As legacy CENTUM CS3000 installations age and original ANB10D-series modules approach end-of-life or become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to secure reliable, drop-in replacements that preserve system integrity without triggering a full DCS migration.

TOPNLMS maintains verified stock of the ANB10D-415/CU2N and its closely related variants, sourced from original Yokogawa supply chains and rigorously tested prior to dispatch. Whether you are managing an emergency breakdown, building a critical-spares inventory, or executing a phased modernization of your CENTUM CS3000 architecture, this module ships ready for immediate installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM CS3000 ESB bus node replacement rarely involves a single module in isolation. In practice, the ANB10D-415/CU2N sits at the heart of a broader field control station architecture, and its upgrade or replacement typically coincides with related work on adjacent components.

When the bus node is replaced, engineers frequently audit the AAI141-S00 analog input modules and ADV151-P00 digital input modules mounted on the same node, since these I/O cards share the ESB segment and may have accumulated similar service hours. If the field control station itself — typically an AFV10D Field Control Unit or AFV30D — is also being refreshed, the ANB10D-415/CU2N replacement becomes part of a coordinated station-level overhaul rather than a spot repair.

Power integrity is equally important. The APW11D power supply module feeding the node rail should be verified for output stability before commissioning the new bus node, as voltage fluctuations on the 24 V DC bus can cause intermittent ESB communication faults that are difficult to distinguish from a faulty node unit. Similarly, the ACN11D node cable connecting the bus node to the field control unit should be inspected for connector wear, especially in high-vibration environments such as compressor halls or offshore platforms.

For sites running parallel FOUNDATION Fieldbus or HART segments alongside the ESB network, the ANB10D-415/CU2N coexists with ALF111 FOUNDATION Fieldbus communication modules in the same control station. Ensuring that the new bus node’s firmware revision is aligned with the station’s existing ALF111 cards prevents protocol handshake issues during restart.

Where the modernization scope extends to the operator interface layer, the replacement of the bus node is often timed with an upgrade of the HIS (Human Interface Station) software or a migration from older CENTUM CS3000 R3 to CENTUM VP. In these cases, the ANB10D-415/CU2N remains fully compatible with CENTUM VP field control stations operating in CS3000 emulation mode, protecting the investment in existing field wiring and I/O marshalling.

Procurement teams building critical-spares kits alongside the ANB10D-415/CU2N commonly include the AAT141-S00 terminal board, KS1 signal cables, and a spare APW11D power module to ensure a complete, self-sufficient replacement package that can be deployed without waiting for additional parts.

Retrofit Guidance FAQ

Q: Is the ANB10D-415/CU2N a direct wiring-compatible replacement for an existing ANB10D unit?
A: Yes, provided the existing unit is also an ESB-type bus node (suffix /CU2N or equivalent). The field wiring terminations and rail mounting dimensions are identical. If the existing unit is an older SB-type node, the ESB and SB buses are electrically and logically incompatible — a full node segment upgrade is required.

Q: Do I need to re-download the control logic after replacing the bus node?
A: In most cases, no. The ANB10D-415/CU2N stores no application logic itself; all function blocks reside in the Field Control Unit (AFV10D/AFV30D). After physical replacement and node address confirmation via DIP switch, the FCS will automatically re-establish communication with the new bus node on power-up. A cold download is only required if the FCS database has been modified.

Q: How do I confirm the correct node address before installation?
A: Record the DIP switch settings on the outgoing module before removal. The node address must match exactly to avoid address conflicts on the ESB segment. CENTUM CS3000 System View will display a node communication alarm if there is a mismatch.

Q: Is the module compatible with CENTUM VP systems?
A: The ANB10D-415/CU2N is natively a CS3000 component. CENTUM VP field control stations operating in CS3000 compatibility mode will recognize and communicate with this bus node. Confirm your VP station’s compatibility mode setting with your Yokogawa system integrator before installation.

Q: What is the lead time and shipping arrangement?
A: Stock units ship from Xiamen within 1–3 business days. International express delivery (DHL / FedEx) typically reaches most destinations within 3–7 business days. Emergency same-day dispatch is available upon request.

Warranty Assurance

Every ANB10D-415/CU2N unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification check including power-on self-test, ESB communication handshake simulation, and visual inspection for connector integrity and PCB condition.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgement and 72 hours for resolution proposal. Customers are not required to return the defective unit before a replacement is dispatched for critical-downtime situations — contact us directly to arrange expedited warranty support.

Procurement documentation including test reports, packing lists, and certificates of conformity is available upon request to support your incoming inspection and asset management processes.
