YOKOGAWA AMM52 S4 Ruggedized Analog Input Module

Product Overview

YOKOGAWA AMM52 S4 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

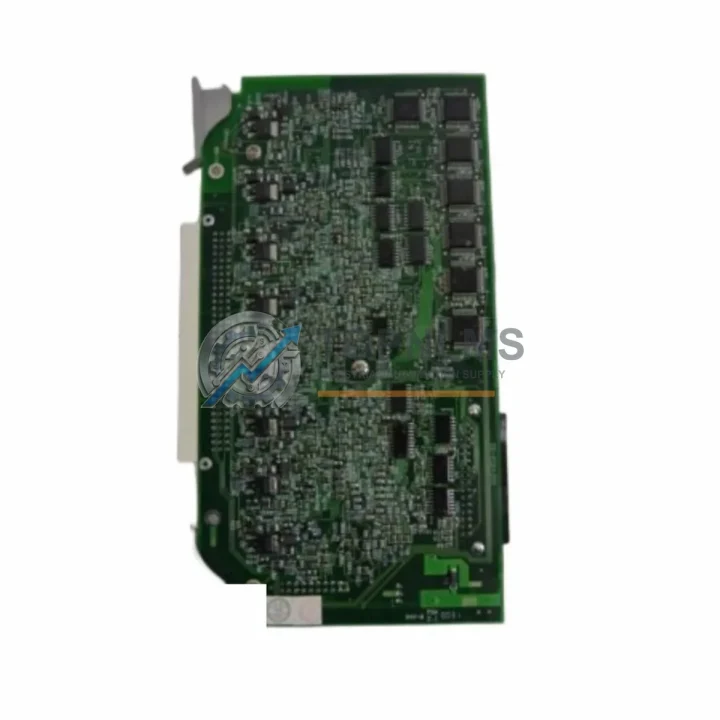

The YOKOGAWA AMM52 S4 is a high-precision analog input module engineered for continuous, fault-tolerant operation within the CENTUM VP and CENTUM CS 3000 distributed control system (DCS) architectures. Designed to meet the uncompromising demands of heavy industry, this module delivers stable signal acquisition across extreme temperature ranges, high-humidity zones, dusty production floors, and electromagnetically noisy environments — making it a mission-critical component wherever process uptime cannot be negotiated.

Built on YOKOGAWA’s proven field-device philosophy, the AMM52 S4 integrates seamlessly into existing CENTUM VP field control stations (FCS), providing reliable 4–20 mA analog signal conditioning for process variables including temperature, pressure, flow, and level. Its ruggedized PCB design, conformal coating, and vibration-resistant construction allow it to perform consistently in oil refineries, chemical plants, power generation facilities, and offshore platforms where lesser modules fail prematurely.

Rugged Specifications Table

Comprehensive Protection Solutions

The AMM52 S4 does not operate in isolation — it is the sensing backbone of a broader YOKOGAWA CENTUM VP control architecture. In a typical field control station, it works in concert with the AMM12 and AMM22 analog input modules to handle diverse signal ranges across the same process unit. Analog output commands are issued through companion modules such as the AAM51 and AAM11, closing the control loop with precision actuator positioning.

Digital I/O coordination is handled by modules like the ADM51 discrete input module and the ADM12 digital output module, which manage on/off signals from field switches, solenoid valves, and motor starters. For process safety applications, the AMM52 S4 feeds real-time analog data into YOKOGAWA’s ProSafe-RS safety instrumented system (SIS), enabling SIL 2 and SIL 3 safety function execution without interrupting normal DCS operation.

Power integrity across the control cabinet is maintained by YOKOGAWA PW481 and PW482 power supply modules, which provide redundant 24 VDC rails to the I/O bus — ensuring the AMM52 S4 continues acquiring signals even during a primary power fault. Communication between the field control station and the operator workstation is routed through the ESB bus and Vnet/IP network interface cards, delivering deterministic, low-latency data transmission across the plant-wide control network.

For installations requiring intrinsic safety barriers or galvanic isolation in Zone 1 or Zone 2 hazardous areas, the AMM52 S4 is typically paired with YOKOGAWA KFDO-CS series Zener barriers or equivalent isolator modules, maintaining ATEX and IECEx compliance at the field junction. Terminal modules such as the TB811 marshalling terminal board provide the physical wiring interface between field cables and the I/O module slot, simplifying maintenance and reducing rewiring risk during module replacement.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the AMM52 S4 monitors wellhead pressure transmitters, separator level gauges, and pipeline flow meters — all feeding into the CENTUM VP FCS for real-time process optimization and emergency shutdown coordination. Its conformal-coated PCB withstands the corrosive hydrogen sulfide (H₂S) atmospheres common in sour gas processing facilities, where standard electronics degrade within months.

At coal-fired and combined-cycle power plants, the module acquires thermocouple and RTD signals from boiler drum temperature sensors, turbine bearing monitors, and flue gas analyzers. The 16-bit resolution ensures that small deviations in steam temperature or combustion efficiency are detected early, enabling operators to intervene before a minor anomaly escalates into an unplanned outage.

In water and wastewater treatment facilities, the AMM52 S4 handles pH, dissolved oxygen, turbidity, and chlorine residual signals from field analyzers distributed across multiple treatment stages. Its high channel density (16 channels per module) reduces the number of I/O slots required in the control cabinet, lowering both capital cost and maintenance complexity for municipal utilities operating on constrained budgets.

Metallurgical and mining operations subject control hardware to extreme vibration from crushers, ball mills, and conveyor drives. The AMM52 S4’s vibration-rated construction and secure card-edge connector locking mechanism prevent intermittent signal loss — a failure mode that can trigger false alarms or, worse, mask genuine process upsets in smelting or flotation circuits.

In chemical and petrochemical batch plants, where recipe-driven processes demand precise analog measurement repeatability, the module’s 16-bit A/D conversion and per-channel isolation eliminate cross-talk between signals, ensuring that a fault on one channel does not corrupt adjacent measurements — a critical requirement for GMP-compliant pharmaceutical manufacturing and specialty chemical production.

Security & Quality FAQ

Q1: What warranty coverage does the YOKOGAWA AMM52 S4 carry?
Every AMM52 S4 unit shipped by TOPNLMS is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to dispatch, each module undergoes a full functional test including channel-by-channel signal verification, power consumption check, and communication bus handshake validation. A test report is available upon request.

Q2: Is this module compatible with both CENTUM VP and CENTUM CS 3000 systems?
Yes. The AMM52 S4 is hardware-compatible with YOKOGAWA CENTUM VP R5/R6 and CENTUM CS 3000 R3 field control stations. It slots directly into standard I/O nest positions without requiring adapter hardware. For CENTUM VP R6 systems, firmware version alignment with the FCS CPU is recommended — our technical team can advise on version compatibility before shipment.

Q3: How quickly can the module be shipped, and is long-term supply guaranteed?
In-stock units are dispatched within 1–3 business days via DHL Express, FedEx International Priority, or sea freight depending on order volume and destination. TOPNLMS maintains a dedicated inventory of YOKOGAWA CENTUM VP and CS 3000 spare parts to support long-term plant maintenance contracts. For projects requiring guaranteed supply over 12–36 months, blanket order arrangements are available.

Q4: Can the AMM52 S4 be used as a direct replacement for a failed module without reconfiguring the DCS?
In most cases, yes. The AMM52 S4 is a hot-swap-capable module within a powered CENTUM VP I/O nest, provided the replacement unit carries the same hardware revision. Channel configuration parameters (range, tag assignment, alarm limits) are stored in the FCS CPU and are automatically downloaded to the replacement module upon insertion. TOPNLMS recommends verifying the hardware suffix (S4) matches the original module to ensure full pin and firmware compatibility.
