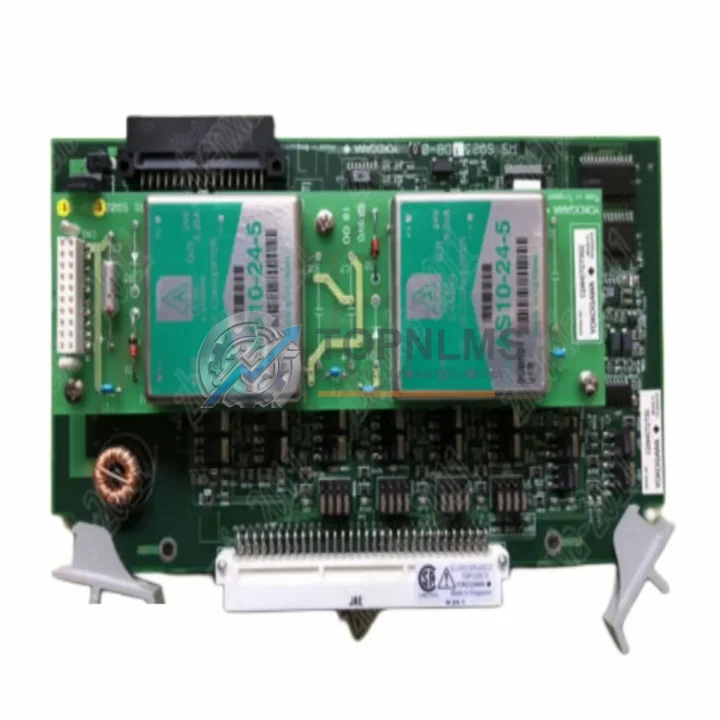

YOKOGAWA AMM42 S4 Replacement Solution for CENTUM CS3000

Product Overview

YOKOGAWA AMM42 S4 Replacement Solution for CENTUM CS3000: Seamless Transition to Modern DCS Infrastructure

The YOKOGAWA AMM42 S4 is a critical power supply module within the CENTUM CS3000 S4 Series distributed control system architecture. As aging CS3000 installations approach end-of-life or face discontinued spare-part availability, plant engineers and procurement teams are increasingly seeking verified replacement and upgrade pathways that preserve existing wiring infrastructure, control logic, and cabinet layouts. TOPNLMS supplies the AMM42 S4 from certified inventory, enabling facilities to execute controlled modernization without full system overhaul.

The AMM42 S4 provides regulated DC power distribution to field control units (FCUs) and I/O modules within the CENTUM CS3000 S4 rack architecture. Its form factor, connector pinout, and power rail specifications are designed for direct slot-for-slot replacement within the existing S4 field control station (FCS) cabinet. Facilities running parallel redundant power configurations — pairing the AMM42 S4 with a second power supply module such as the AMM12 or AMM22 — can replace one unit at a time without interrupting the live control loop, dramatically reducing planned downtime windows.

When migrating from earlier CENTUM CS1000 or CS3000 R3 installations, the AMM42 S4 maintains backward-compatible power rail voltages, allowing existing terminal boards such as the TB820V or TB830 to remain in service. Field wiring connected to analog input modules like the AAI141-S or AAI543-S, and digital output modules such as the ADO141-P, does not require re-termination during a power supply swap, preserving the integrity of loop calibration records and reducing commissioning time on the plant floor.

For sites integrating VNET/IP or Ethernet-based communication between FCS nodes and the HIS (Human Interface Station), the power supply stability delivered by the AMM42 S4 is essential to maintaining deterministic scan cycle performance. Unstable or aging power modules are a common root cause of intermittent communication faults between the FCS and the engineering workstation running CENTUM VP or CS3000 R3 software. Replacing the AMM42 S4 proactively — rather than reactively after a fault — is a recognized best practice in DCS lifecycle management.

Sites planning a phased migration from CENTUM CS3000 to CENTUM VP can retain the AMM42 S4 in service during the transition period. The module’s compatibility with the existing S4 FCS backplane means that I/O modules, communication modules such as the ACM12 Vnet communication module, and the FCS processor card can be upgraded independently without requiring simultaneous power supply replacement. This staged approach allows engineering teams to validate each subsystem change before proceeding to the next, reducing project risk and capital expenditure in any single maintenance window.

Procurement teams sourcing the AMM42 S4 as a long-term spare should note that TOPNLMS maintains stock of associated S4 Series components including power distribution modules, rack assemblies, and communication interface cards. Having verified spares on-site eliminates lead-time risk for unplanned outages in continuous-process industries such as oil and gas, petrochemical, pulp and paper, and power generation, where DCS availability is directly tied to production throughput.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete AMM42 S4 replacement or DCS modernization project typically involves more than a single module swap. During the power supply replacement process, engineers commonly audit adjacent components within the same FCS cabinet. The ACM12 Vnet/IP communication module, which handles data exchange between the FCS and the HIS operator station, is frequently inspected and replaced in the same maintenance window to eliminate a second planned outage. Similarly, the FCS processor card — the core computation unit managing scan cycles and control logic execution — may be upgraded if the existing unit is approaching its recommended service interval.

On the I/O side, analog input modules such as the AAI141-S (4–20 mA current input) and the AAI543-S (multi-range analog input) are often replaced alongside the power supply when field calibration records indicate drift or when the modules have accumulated significant operating hours. Digital output modules including the ADO141-P are similarly evaluated during the same cabinet access, since the labor cost of a second entry into a live cabinet is significant in safety-instrumented environments.

For sites transitioning communication infrastructure from legacy Vnet token-ring topology to VNET/IP Ethernet, the ESB10D Vnet/IP interface module and associated Ethernet switches become part of the upgrade bill of materials. Terminal boards such as the TB820V provide the physical wiring interface between field instruments and the I/O modules, and their condition is assessed during any power supply replacement to confirm that screw terminal torque and insulation integrity remain within specification.

In control cabinets where space is constrained, signal isolators and marshalling components may also be reviewed. Ensuring that the replacement AMM42 S4 is installed with correct DIN rail clearance and that adjacent modules — including any installed relay output modules or pulse input modules — are properly seated and latched is part of the standard commissioning checklist that TOPNLMS provides with each shipment.

Retrofit Guidance FAQ

Q: Can I replace the AMM42 S4 without shutting down the entire FCS?
A: In a redundant dual-power-supply configuration, the AMM42 S4 can be replaced while the redundant unit maintains power to the rack. Confirm redundancy status in the CENTUM CS3000 system status display before proceeding. In a single-supply configuration, a controlled FCS shutdown is required.

Q: Does replacing the AMM42 S4 require any changes to the control program or function blocks?
A: No. The AMM42 S4 is a power infrastructure component and does not interact with the application-layer control logic. Function blocks, PID loops, and sequence tables stored in the FCS processor are unaffected by a power supply replacement.

Q: Is the AMM42 S4 compatible with both VNET/IP and legacy Vnet communication?
A: The AMM42 S4 itself is a power supply module and is communication-protocol agnostic. Communication protocol compatibility is determined by the FCS communication card (e.g., ACM12 for VNET/IP). Confirm the communication card model installed in your FCS before ordering communication-related components.

Q: What physical checks should be performed before installing the replacement AMM42 S4?
A: Inspect the backplane connector for bent pins or contamination, verify that the slot is correctly identified in the FCS hardware configuration, confirm input voltage selection matches site power supply (AC or DC), and ensure the module firmware revision is compatible with the installed FCS software version.

Q: How long does commissioning take after installing the AMM42 S4?
A: In a standard replacement scenario with no wiring changes, commissioning typically takes 15–30 minutes, including power-on self-test verification, FCS status confirmation in the engineering workstation, and alarm acknowledgment. TOPNLMS provides a commissioning checklist with each unit.

Q: Can the AMM42 S4 be used in a CENTUM VP system?
A: The AMM42 S4 is designed for the CENTUM CS3000 S4 platform. CENTUM VP uses a different hardware generation. Consult TOPNLMS technical support to confirm cross-generation compatibility for your specific installation before ordering.

Warranty Assurance

Every YOKOGAWA AMM42 S4 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment functional inspection that verifies power output stability, connector integrity, and module identification data. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions as specified in the YOKOGAWA AMM42 S4 hardware manual.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformance, packing list, and commercial invoice with each shipment. Export documentation for international shipments is prepared in compliance with applicable customs regulations. Standard lead time from confirmed order to shipment is 1–3 business days for in-stock units, with DHL, FedEx, and UPS express options available for time-critical plant maintenance requirements.

For technical pre-sales consultation, compatibility verification, or bulk procurement inquiries, contact the TOPNLMS team directly.
