YOKOGAWA AMM22T Ruggedized Thermocouple Input Module: Industrial Resilience for Harsh Environments

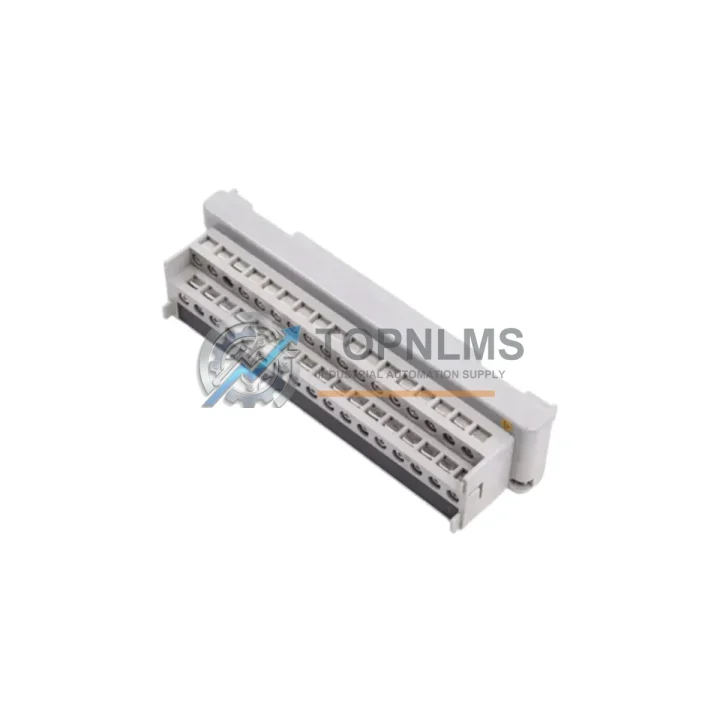

The YOKOGAWA AMM22T is a 16-channel thermocouple input multiplexer module engineered for mission-critical process control within the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. Designed to operate continuously in the most demanding industrial environments — including high-temperature furnace areas, high-humidity coastal facilities, dust-laden mining sites, and electromagnetically noisy heavy manufacturing floors — the AMM22T delivers the signal integrity and measurement accuracy that safety-critical operations demand.

Built to YOKOGAWA’s stringent quality standards, this module provides stable multi-point thermocouple acquisition across Type K, J, T, E, R, S, B, N, and W thermocouples, making it a universal sensing front-end for temperature-intensive processes. Its ruggedized design incorporates advanced EMI shielding, vibration-tolerant PCB construction, and conformal coating options that protect internal circuitry from corrosive atmospheres and condensation — characteristics that are non-negotiable in oil refinery control rooms, chemical reactor monitoring systems, and steel mill automation networks.

Rugged Specifications Table

Comprehensive Protection Solutions

The AMM22T does not operate in isolation — it is the sensing front-end of a tightly integrated control architecture. In a typical CENTUM VP field control station (FCS), the AMM22T works in concert with the AAM21 analog input module for 4–20 mA current loop signals and the AAM51 analog output module that drives final control elements. Together, these modules share the same node unit backplane, ensuring synchronized scan cycles and deterministic data delivery to the CENTUM VP HIS (Human Interface Station).

For installations where thermocouple signals must travel long distances from field junction boxes to the control room, the AMM22T is typically paired with YOKOGAWA JUXTA signal conditioners and isolators, which suppress ground loops and common-mode interference before signals reach the module’s input terminals. In high-vibration environments such as compressor stations or rolling mills, the ADM12 digital input module and ADM51B digital output module are co-located in the same field control station, providing discrete I/O for motor starters, solenoid valves, and safety interlocks alongside the AMM22T’s continuous temperature monitoring.

Power integrity is equally critical. The AMM22T’s host FCS is typically powered by redundant YOKOGAWA PW481 or PW482 power supply modules, which provide N+1 redundancy and automatic switchover in under 20 milliseconds — ensuring that a power supply failure never interrupts thermocouple scanning on a live process. For safety-instrumented system (SIS) integration, the AMM22T temperature data feeds into YOKOGAWA ProSafe-RS safety controllers via the CENTUM VP integration gateway, enabling SIL 2-rated high-temperature trip functions without additional signal conditioning hardware.

Communication continuity is maintained through the ACM12 communication module, which bridges the CENTUM VP V-net to Modbus TCP or FOUNDATION Fieldbus H1 segments where field transmitters and smart positioners reside. This architecture allows the AMM22T to serve as the authoritative temperature reference while field devices provide supplementary process variables — a configuration common in ethylene crackers, LNG liquefaction trains, and continuous casting lines where temperature excursions must be detected within milliseconds.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the AMM22T is deployed in wellhead control panels and gas compression stations where ambient temperatures can swing from -10°C in winter shutdowns to +50°C during summer peak operations. Its automatic cold junction compensation ensures that thermocouple readings remain accurate regardless of the control cabinet’s internal temperature drift — a common failure mode for lesser-quality modules in outdoor enclosures.

In coal-fired and gas-fired power generation plants, the AMM22T monitors boiler tube skin temperatures, turbine exhaust temperatures, and flue gas temperatures simultaneously across its 16 channels. The module’s high channel density reduces the number of I/O cards required per FCS node, lowering both capital cost and the number of potential failure points in the control cabinet — a key reliability metric for plant operators targeting 99.9%+ availability.

In metallurgical and steel production environments, where electric arc furnaces, continuous annealing lines, and hot rolling mills generate intense electromagnetic interference from high-current bus bars and variable-frequency drives, the AMM22T’s IEC 61000-4 compliant EMI shielding prevents spurious temperature readings that could trigger false alarms or, worse, mask genuine overtemperature conditions. Maintenance teams in these facilities value the module’s hot-swap capability within the CENTUM VP architecture, which allows replacement during scheduled maintenance windows without full FCS shutdown.

In water and wastewater treatment plants, the AMM22T monitors heat exchanger performance, sludge digester temperatures, and UV disinfection system thermal profiles. Its low power consumption and wide humidity tolerance make it well-suited for the damp, chemically aggressive atmospheres found in biological treatment buildings and chemical dosing rooms.

In mining and mineral processing operations, including copper smelters, gold roasters, and cement kilns, the AMM22T provides reliable temperature telemetry from rotating kiln shell scanners and fixed thermocouple arrays embedded in refractory linings. The module’s vibration resistance per IEC 60068-2-6 ensures that the constant mechanical vibration from crushers, mills, and conveyors does not induce measurement errors or connector fatigue failures.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the YOKOGAWA AMM22T?
Every AMM22T shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If the module fails within the warranty period, we provide a replacement or full refund after technical verification. Our warranty process is straightforward — contact [email protected] with your order number and fault description to initiate a claim.

Q2: How is each AMM22T tested before shipment?
All modules undergo a pre-shipment functional inspection that includes power-on verification, channel continuity checks, and firmware version confirmation. Modules sourced from certified distribution channels are cross-referenced against YOKOGAWA’s serial number database where applicable. We do not ship modules that show signs of physical damage, corrosion, or tampered firmware. A test report is available upon request for critical infrastructure procurement.

Q3: Is the AMM22T compatible with both CENTUM VP and CS 3000 systems?
Yes. The AMM22T is hardware-compatible with both the CENTUM VP and CENTUM CS 3000 field control station node units. However, firmware and software configuration must match the target system version. TOPNLMS recommends confirming your FCS node unit model and CENTUM software revision before ordering to ensure seamless integration. Our technical team can assist with compatibility verification at no charge.

Q4: Can TOPNLMS support long-term or repeat procurement of the AMM22T?
Yes. TOPNLMS maintains standing inventory of high-demand YOKOGAWA CENTUM VP and CS 3000 modules, including the AMM22T, to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts programs. We offer priority reservation for customers with scheduled turnaround maintenance (TAM) windows and can provide advance shipping documentation for customs clearance in most international destinations. Contact us at [email protected] or +86 18359293191 to discuss volume pricing and long-term supply agreements.
