YOKOGAWA AMM21-S2 Replacement for CENTUM VP DCS

Product Overview

YOKOGAWA AMM21-S2 Replacement for CENTUM VP DCS: Seamless Migration & Smooth Transition

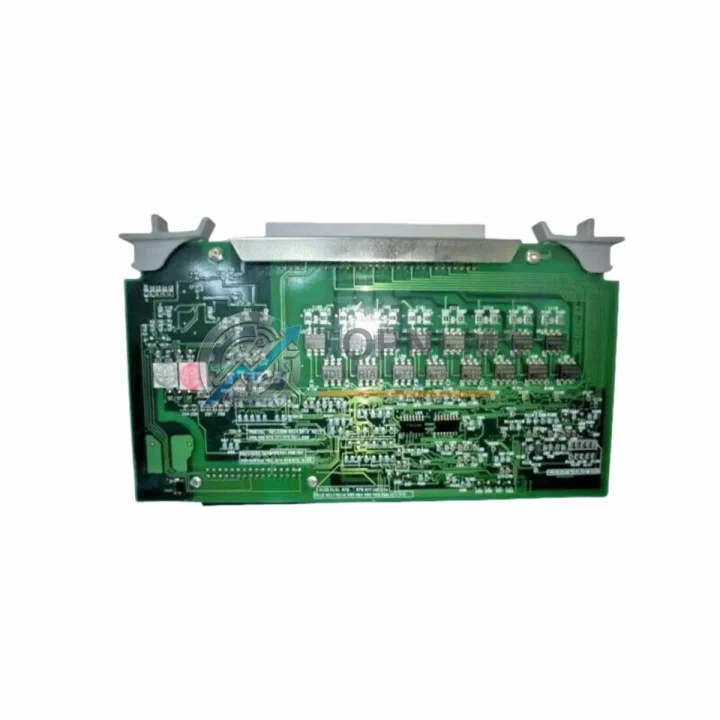

The YOKOGAWA AMM21-S2 is a 4-channel analog output module designed for the CENTUM VP Distributed Control System platform. As legacy CENTUM CS 3000 and early CENTUM VP installations approach end-of-life or face discontinued spare-parts availability, plant engineers and procurement teams are increasingly seeking verified replacement and upgrade paths that minimize engineering rework, reduce downtime, and preserve existing wiring infrastructure.

The AMM21-S2 outputs 4–20 mA signals across four independent channels, interfacing directly with field instruments such as control valves, positioners, and variable-frequency drives. Its compatibility with the CENTUM VP I/O bus architecture means that in most retrofit scenarios, the module can be swapped into an existing FCS (Field Control Station) node without requiring changes to the control logic or function block assignments in the CENTUM VP engineering environment. This plug-compatible characteristic is a critical advantage when planning a hot-standby or scheduled-maintenance replacement window.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM VP analog output module replacement rarely involves a single component in isolation. During a typical migration from a CS 3000 node or an aging CENTUM VP FCS cabinet, engineers must also evaluate the surrounding I/O infrastructure. The AMM11-S2 analog input module is commonly replaced in the same maintenance window, since input and output channels are often paired in the same process loop. Similarly, the ADM12-S digital output module and ADM11-S digital input module may require attention if the control cabinet is undergoing a broader I/O refresh.

For nodes operating over the ESB (Enhanced Serial Bus) or RIO (Remote I/O) architecture, the ACM11 communication module governs data exchange between the FCS and the I/O nodes. Verifying the firmware revision of the ACM11 before installing the AMM21-S2 ensures protocol-level compatibility and avoids unexpected diagnostic alarms during commissioning. In remote I/O configurations, the RIO bus coupler and associated node terminators should also be inspected for wear, particularly in installations exceeding ten years of continuous operation.

Power integrity is another key consideration. The PW481 or PW482 power supply modules feeding the I/O node should be load-tested prior to adding or replacing output modules, as 4–20 mA output channels draw loop power that accumulates across the node. If the existing power supply is operating near capacity, a parallel redundant power supply configuration using a second PW48x unit is advisable before the replacement is commissioned.

For plants that use HART-enabled field devices on the analog output loops, confirming that the AMM21-S2 variant supports HART pass-through is essential. In such cases, the HART multiplexer or the CENTUM VP HART DTM configuration within the engineering station must be updated to reflect the new module address. This step is often overlooked during rapid replacement scenarios and can result in HART communication faults post-installation.

Finally, if the replacement is part of a broader migration toward the CENTUM VP R6 platform or a future path to CENTUM VP RM (Remote Monitoring), the AMM21-S2 is fully compatible with the updated FCS architecture, protecting the capital investment in field wiring and termination assemblies while enabling a phased modernization strategy.

Retrofit Guidance FAQ

Q: Can I replace the AMM21-S2 without modifying existing field wiring?
A: Yes. The AMM21-S2 uses the same terminal block footprint as its predecessors. Field wiring connected to the marshalling cabinet or junction box does not need to be re-terminated, provided the terminal block assembly is in good condition.

Q: Do I need to re-download the control logic after replacement?
A: In most cases, only a module re-registration and function block re-assignment is required within the CENTUM VP engineering environment. A full logic download is generally not necessary unless the FCS firmware has been updated simultaneously.

Q: Is the AMM21-S2 compatible with both ESB and RIO node configurations?
A: Yes. The module is compatible with both ESB-connected local I/O nodes and RIO-connected remote I/O nodes, subject to the node type and FCS configuration. Confirm the node model (e.g., ANB10D, ANR10D) before ordering.

Q: What is the physical installation space requirement?
A: The AMM21-S2 occupies a single standard I/O slot in the CENTUM VP I/O node. No additional DIN rail space or cabinet modification is required.

Q: How do I verify the module is functioning correctly after installation?
A: Use the CENTUM VP HIS (Human Interface Station) diagnostic screen to confirm module status, channel output values, and alarm states. A loop calibration check using a 4–20 mA calibrator on each channel is recommended before returning the loop to automatic control.

Warranty Assurance

Every YOKOGAWA AMM21-S2 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, channel output accuracy check, and bus communication validation. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial diagnosis and 72 hours for replacement dispatch. We maintain bonded stock of high-demand CENTUM VP I/O modules to support urgent plant maintenance requirements.

Procurement documentation including test reports, packing lists, and certificates of conformity is available upon request. Express shipping via DHL, FedEx, or UPS is available for time-critical plant shutdowns. All units are shipped from our Xiamen warehouse with full export documentation for international customs clearance.

For volume procurement, scheduled delivery agreements, or consignment stock arrangements, contact our technical sales team directly.
