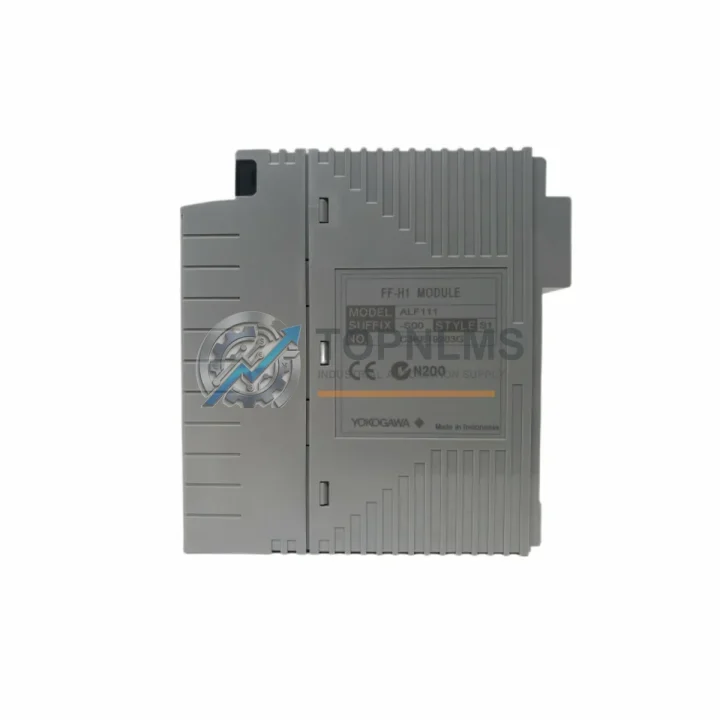

YOKOGAWA ALF111-S00 Ruggedized Fieldbus Module for Harsh Environments

Product Overview

YOKOGAWA ALF111-S00 Ruggedized Fieldbus Module for Harsh Environments

The YOKOGAWA ALF111-S00 is a Foundation Fieldbus H1 (FF-H1) communication module engineered for the CENTUM VP distributed control system — one of the most trusted DCS platforms in continuous-process industries worldwide. Designed to operate reliably in the most demanding industrial environments, the ALF111-S00 delivers deterministic, high-integrity fieldbus communication between the CENTUM VP controller and field instruments, even under conditions of extreme temperature variation, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI).

In heavy industrial facilities — oil refineries, LNG terminals, chemical plants, power generation stations, water treatment works, and metallurgical smelters — control system uptime is not optional. A single communication failure on a live process loop can trigger unplanned shutdowns, safety interlocks, or regulatory non-compliance events. The ALF111-S00 addresses this reality with galvanic isolation on its H1 segment ports, robust surge protection circuitry, and a conformal-coated PCB that resists corrosive atmospheres and condensation. Its wide operating temperature range and vibration-rated mounting make it equally at home in a climate-controlled central control room cabinet and in a field junction box exposed to ambient extremes.

Within the CENTUM VP architecture, the ALF111-S00 integrates seamlessly with the CENTUM VP Field Control Station (FCS), communicating over the Vnet/IP control network on one side and managing up to 16 FF-H1 field devices per segment on the other. This allows engineers to connect YOKOGAWA EJX-series differential pressure transmitters, YTA-series temperature transmitters, and third-party FF-H1 instruments — including control valves with positioners — directly into the DCS without additional signal converters or marshalling panels. The result is a leaner, more maintainable control cabinet with fewer potential failure points.

The module’s Link Active Scheduler (LAS) function ensures that cyclic process data — flow rates, pressures, temperatures, valve positions — is published to the FCS on a deterministic schedule, maintaining loop integrity even when the segment is under heavy acyclic traffic from configuration tools or diagnostics. This is critical in safety-instrumented applications where the SIS (Safety Instrumented System) relies on timely, accurate process values from field transmitters connected via the same FF-H1 segment.

For facilities running mixed automation architectures, the ALF111-S00 coexists in the same control cabinet with YOKOGAWA’s CENTUM VP I/O modules — including the AAI141-S, AAI543-S, and ADV151-P — as well as safety modules from the ProSafe-RS SIS platform. Engineers integrating the ALF111-S00 into an existing CENTUM VP system will find that it slots into the standard CENTUM VP I/O nest without additional hardware adapters, and is fully configurable through YOKOGAWA’s PRM (Plant Resource Manager) and the CENTUM VP Engineering Environment. Firmware updates and segment diagnostics can be performed online without interrupting live process control.

In mining and mineral processing environments, where vibration from crushers and conveyors is constant and airborne silica dust is a persistent contamination risk, the ALF111-S00’s sealed construction and conformal coating provide a meaningful service-life advantage over standard commercial-grade communication modules. Similarly, in offshore oil and gas platforms where salt-laden air accelerates corrosion and space inside Ex-rated enclosures is at a premium, the module’s compact form factor and high MTBF rating reduce both installation cost and long-term maintenance burden.

Power generation facilities — whether coal-fired, gas turbine, nuclear auxiliary systems, or renewable energy integration substations — rely on the ALF111-S00 to maintain communication integrity between the CENTUM VP FCS and critical field instruments monitoring steam flow, turbine speed, cooling water temperature, and generator output. In these applications, the module operates alongside YOKOGAWA’s CENTUM VP communication modules such as the ACF11 Vnet/IP interface card and the ALR111 FOUNDATION Fieldbus HSE linking device, forming a layered, redundant communication architecture that meets IEC 61511 functional safety requirements.

Water and wastewater treatment plants present a different set of challenges: high ambient humidity, chemical vapors from chlorination and dosing systems, and the need for continuous 24/7 operation with minimal maintenance windows. The ALF111-S00’s low power consumption and passive cooling design eliminate the need for forced-air cooling in sealed enclosures, reducing the risk of fan failure-induced overheating — a common cause of communication module degradation in humid tropical climates.

From a procurement and lifecycle management perspective, the ALF111-S00 is a direct replacement for aging FF-H1 communication cards in installed CENTUM VP systems. Facilities that have operated CENTUM VP since the CS 3000 era will find that YOKOGAWA’s backward-compatible engineering philosophy means the ALF111-S00 can often be introduced into an existing system during a planned turnaround without requiring a full DCS upgrade. This makes it an exceptionally cost-effective spare parts investment for asset managers responsible for aging process control infrastructure.

Rugged Specifications Table

Comprehensive Protection Solutions

The ALF111-S00 is rarely deployed in isolation. In a fully engineered CENTUM VP control system, it operates alongside a suite of complementary modules and components that together form a resilient, layered automation architecture. Within the same I/O nest, YOKOGAWA AAI141-S analog input modules handle 4–20 mA HART signals from conventional field instruments, while ADV151-P digital input modules monitor discrete process states such as valve open/closed feedback and motor run/stop status. For applications requiring redundant power distribution, YOKOGAWA’s PW481 and PW482 power supply modules provide N+1 redundancy within the FCS cabinet, ensuring that a single power supply failure does not interrupt the ALF111-S00’s segment communication.

In safety-critical loops, the ALF111-S00 coexists with ProSafe-RS safety I/O modules — including the SSI143-S safety analog input and SDV144-S safety digital output — which handle SIL 2-rated safety functions independently of the process control network. The ALF111-S00’s FF-H1 segments can carry both process control and partial stroke test (PST) data for smart valve positioners, reducing the need for separate wiring infrastructure. For facilities requiring remote I/O expansion, YOKOGAWA’s RIO (Remote I/O) nodes connected via the ALR111 FOUNDATION Fieldbus HSE linking device extend the reach of the CENTUM VP system to remote field locations without running additional copper cable back to the central control room.

Terminal modules and marshalling components — including YOKOGAWA’s TB series terminal blocks and third-party DIN-rail mounted surge arrestors — protect the ALF111-S00’s H1 segment ports from lightning-induced transients and ground potential differences common in large industrial facilities with extensive cable runs. In facilities where Profibus PA instruments coexist with FF-H1 devices, segment couplers and protocol gateways can be integrated into the same cabinet, with the ALF111-S00 managing the FF-H1 portion of the fieldbus network. Industrial Ethernet switches with managed VLAN support complete the communication infrastructure, isolating Vnet/IP control traffic from corporate IT networks and maintaining deterministic control loop performance.

Application in Critical Infrastructure

In petroleum refining, the ALF111-S00 is deployed in crude distillation units, catalytic crackers, and hydrotreatment reactors — environments where process temperatures exceed 400°C and the consequences of a communication failure can include uncontrolled exothermic reactions or emergency flare events. The module’s deterministic LAS scheduling ensures that temperature and pressure readings from EJX910A multivariable transmitters and YTA610 temperature transmitters reach the CENTUM VP FCS within the required scan cycle, supporting advanced process control (APC) applications that optimize energy consumption and product yield.

In LNG liquefaction and regasification terminals, the ALF111-S00 operates in cryogenic-adjacent environments where ambient temperatures can swing dramatically between day and night cycles. Its wide thermal operating range and low self-heating design make it suitable for installation in field junction boxes located in open-air process areas, provided appropriate enclosure ratings are maintained. The module’s galvanic isolation is particularly valuable in these facilities, where large ground potential differences between remote field structures and the central control building are common.

Coal-fired and gas turbine power stations rely on the ALF111-S00 to maintain communication with boiler instrumentation, turbine control loops, and emissions monitoring systems. In these applications, the module must tolerate high levels of conducted and radiated EMI from large rotating machines, high-voltage switchgear, and variable-frequency drives (VFDs). YOKOGAWA’s EMC design philosophy — incorporating common-mode chokes, transient voltage suppressors, and careful PCB ground plane layout — ensures that the ALF111-S00 maintains BER (bit error rate) performance within FF-H1 specification even in the presence of severe electromagnetic disturbances.

In municipal and industrial water treatment facilities, the ALF111-S00 connects CENTUM VP controllers to FF-H1 instruments monitoring chlorine dosing, pH, turbidity, and flow — parameters that must be measured and controlled continuously to meet regulatory discharge standards. The module’s 24/7 continuous operation capability, combined with YOKOGAWA’s online firmware update feature, allows maintenance teams to apply security patches and functional improvements during normal operation without requiring a process shutdown.

Mining and mineral processing operations — including copper smelters, gold processing plants, and iron ore beneficiation facilities — subject control system hardware to some of the harshest conditions in industry: fine conductive dust, aggressive chemical vapors, high ambient temperatures, and constant mechanical vibration from crushers, mills, and conveyors. The ALF111-S00’s conformal-coated PCB and sealed connector design provide meaningful protection against these contaminants, extending service life and reducing the frequency of unplanned module replacements.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The ALF111-S00 supplied by TOPNLMS carries a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions as defined by YOKOGAWA’s published specifications. In the event of a warranty claim, customers contact TOPNLMS at [email protected] with the order reference and a description of the fault. TOPNLMS will arrange return shipping, conduct functional testing, and provide either a repaired unit or a direct replacement within an agreed lead time. Damage caused by incorrect installation, overvoltage events outside the module’s rated surge protection, or unauthorized modification is excluded from warranty coverage.

Q2: How is each ALF111-S00 unit tested before shipment?
Every ALF111-S00 unit dispatched by TOPNLMS undergoes pre-shipment functional verification, including power-on self-test (POST) confirmation, FF-H1 segment communication integrity check, and visual inspection for physical damage or counterfeit indicators. Units sourced directly from YOKOGAWA’s authorized distribution network are accompanied by original manufacturer documentation. For customers requiring additional assurance, TOPNLMS can provide a factory test report or arrange third-party inspection prior to shipment upon request.

Q3: Is the ALF111-S00 compatible with older CENTUM VP versions and the legacy CS 3000 system?
The ALF111-S00 is designed for the CENTUM VP platform and is fully compatible with current CENTUM VP R6.x software releases. Compatibility with specific earlier CENTUM VP revisions (R4.x, R5.x) should be confirmed against YOKOGAWA’s compatibility matrix for the target FCS firmware version. The ALF111-S00 is not a direct plug-in replacement for CS 3000 ALF111 variants without engineering review, as the I/O nest backplane interface differs between platforms. TOPNLMS technical support can assist customers in confirming compatibility for their specific installed system revision before purchase.

Q4: Can TOPNLMS guarantee long-term supply and support for the ALF111-S00 as CENTUM VP systems age?
Yes. TOPNLMS maintains strategic inventory of YOKOGAWA CENTUM VP spare parts — including the ALF111-S00 and related I/O and communication modules — specifically to support facilities operating aging DCS infrastructure between major upgrade cycles. Customers with long-term maintenance contracts or turnaround schedules are encouraged to contact TOPNLMS to discuss reserved stock arrangements, ensuring that critical spare parts are available when needed without relying on spot-market availability. TOPNLMS’s procurement network spans authorized YOKOGAWA channels and certified secondary market sources, with full traceability documentation provided for every unit.
