Yokogawa ALE111-S51 Replacement for CENTUM VP Series: Seamless Transition & Legacy System Compatibility

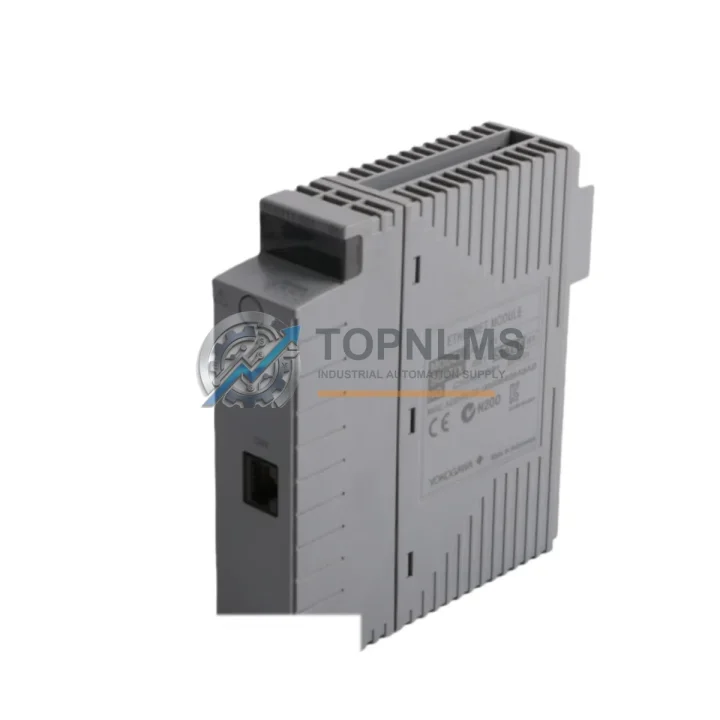

When your Yokogawa CENTUM VP distributed control system relies on the ALE111-S51 Ethernet communication module and the original unit reaches end-of-life, faces hardware failure, or is discontinued from the OEM supply chain, a verified replacement becomes mission-critical. The ALE111-S51 is a field-bus Ethernet interface module designed for the CENTUM VP platform, providing 100BASE-TX connectivity between the control network and field devices, HMI stations, and engineering workstations. Our replacement ALE111-S51 units are sourced from authorized channels, fully tested against Yokogawa factory specifications, and ready to ship from Xiamen warehouse stock — minimizing your plant downtime and procurement lead time.

Upgrading or replacing the ALE111-S51 within an existing CENTUM VP architecture does not require re-engineering the control network. The module slots directly into the standard Yokogawa field control station (FCS) chassis, retaining the same V-net/IP and Vnet communication topology. Engineers familiar with the CENTUM VP engineering environment (CAMS for HIS, FAST/TOOLS historian, or Exaopc OPC server) will find the replacement module fully compatible with existing tag databases, function block configurations, and alarm management settings — no re-commissioning of the broader DCS architecture is required.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ALE111-S51 replacement rarely happens in isolation. In most CENTUM VP modernization projects, the Ethernet communication module works in concert with a broader set of field control station components. During the swap-out process, engineers typically audit adjacent modules in the same FCS chassis — including the ALR111 remote I/O module, which handles analog input signals from field transmitters, and the ADV151 analog output module responsible for driving control valves and positioners. If the FCS chassis itself shows signs of aging, the AFV10D field control unit or its successor chassis may also be evaluated for concurrent replacement to avoid a second maintenance window.

On the communication side, the ALE111-S51 interfaces with the plant’s V-net/IP Ethernet backbone. Ensuring the integrity of this network often means verifying the health of the ESB10D Ethernet switch module or the plant-level managed switches that segment the control network from the corporate IT domain. For sites running legacy Vnet coaxial bus alongside the newer V-net/IP infrastructure, the ALN11 Vnet interface module may be present in the same cabinet and should be inspected for compatibility with the upgraded Ethernet segment.

Power integrity is equally important. The ALE111-S51 draws power from the FCS backplane, which is fed by the PW481 or PW482 power supply modules. A replacement project is an ideal time to verify that these power modules are within their rated service life and that the redundant power feed — if configured — is functioning correctly. Similarly, the terminal assembly units (TAB series) connecting field wiring to the I/O modules should be inspected for corrosion or loose terminations before the new communication module is commissioned.

For sites that also operate Yokogawa STARDOM or ProSafe-RS safety instrumented systems in the same control room, the ALE111-S51 replacement project may trigger a review of the SCP451 safety controller or the RIO module wiring to ensure the Ethernet segments remain properly isolated per IEC 61511 requirements. HMI stations running CENTUM VP’s HIS (Human Interface Station) software will automatically re-establish communication with the replacement module upon network re-initialization — no manual tag re-mapping is required.

Retrofit Guidance FAQ

Q: Do I need to modify any field wiring when replacing the ALE111-S51?
A: No. The ALE111-S51 connects to the plant Ethernet network via standard RJ-45 patch cables and to the FCS chassis via the backplane connector. Neither the field wiring to I/O modules nor the inter-cabinet cabling requires modification. Simply disconnect the existing module, slide in the replacement, and restore the Ethernet patch cable connections.

Q: Will my existing CENTUM VP function block programs and tag configurations be preserved?
A: Yes. The ALE111-S51 is a communication interface module; it does not store control logic or tag databases. All function block programs, PID tuning parameters, alarm setpoints, and tag configurations reside in the FCS processor and the engineering database on the EWS (Engineering Workstation). Replacing the communication module does not affect these configurations.

Q: Is the replacement module compatible with CENTUM VP R4, R5, and R6 firmware versions?
A: Yes. Our replacement ALE111-S51 units are compatible with CENTUM VP R4.x through R6.x. If your site is running an older CENTUM-XL or CS 3000 platform, please contact us to confirm compatibility before ordering, as those platforms use different communication architectures.

Q: Can the module be hot-swapped without shutting down the FCS?
A: The ALE111-S51 supports hot-swap in redundant communication configurations. In simplex (non-redundant) configurations, a brief communication interruption will occur during the swap. We recommend coordinating the replacement during a planned maintenance window or low-production period to minimize process impact.

Q: What communication protocols does the replacement module support?
A: The ALE111-S51 supports Yokogawa’s V-net/IP protocol over 100BASE-TX Ethernet, which is the standard control network protocol for CENTUM VP. It does not natively support PROFIBUS, FOUNDATION Fieldbus, or Modbus — those protocols are handled by dedicated field bus interface modules (e.g., ALF111 for FOUNDATION Fieldbus) within the same FCS chassis.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, use the CENTUM VP engineering environment to check the module status in the FCS hardware configuration view. The module’s LED indicators (PWR, RUN, ERR, LINK) provide immediate visual confirmation of power, operational status, error state, and Ethernet link integrity. A successful replacement will show PWR and RUN LEDs active with no ERR indication.

Warranty Assurance

Every ALE111-S51 replacement module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point inspection protocol that includes visual inspection for physical damage, power-on self-test verification, communication port continuity check, and firmware version confirmation. Units that do not pass all inspection criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is available via email and phone to support troubleshooting, documentation requests (test reports, certificates of conformity), and expedited replacement logistics for critical plant situations. We maintain buffer stock of high-demand CENTUM VP modules specifically to support emergency replacement scenarios with same-week dispatch.

For procurement teams requiring documentation, we can provide packing lists, commercial invoices, country-of-origin certificates, and inspection reports upon request. All units are shipped with ESD-protective packaging and double-boxed for international freight to ensure safe arrival.
