YOKOGAWA AIP532 S1 Replacement for CENTUM DCS

Product Overview

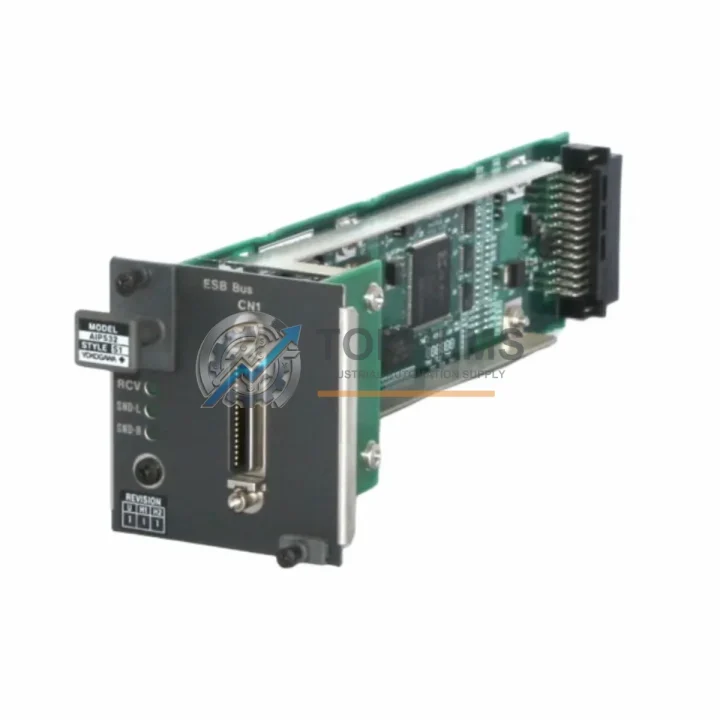

YOKOGAWA AIP532 S1 Replacement for CENTUM DCS: Smooth Migration from Legacy ESB Bus Architecture

The YOKOGAWA AIP532 S1 is an ESB (Extended Serial Backplane) Bus Coupler Module designed for use within the CENTUM series Distributed Control System (DCS) platform. As YOKOGAWA progressively phases out legacy CENTUM CS and CENTUM CS 3000 hardware, many facilities operating on the original ESB bus architecture face urgent replacement decisions when the AIP532 S1 reaches end-of-life or becomes unavailable through standard distribution channels. TOPNLMS maintains verified stock of the AIP532 S1 to support exactly these migration and emergency replacement scenarios, enabling engineering teams to restore system integrity without committing to a full DCS platform overhaul.

The AIP532 S1 functions as the communication bridge between the Field Control Station (FCS) processor and the I/O modules mounted on the ESB bus. In a typical CENTUM CS 3000 architecture, the FCS unit — such as the AFV10S or AFV30S Field Control Unit — relies on the ESB bus coupler to coordinate real-time data exchange across multiple I/O nest assemblies. Replacing a failed or degraded AIP532 S1 with a verified unit restores this communication path without requiring re-engineering of the I/O wiring, nest configuration, or control logic. The module slots directly into the existing ESB bus nest, maintaining the same physical footprint, connector pinout, and bus addressing scheme as the original.

For facilities running mixed CENTUM generations, the AIP532 S1 replacement is often the most cost-effective path to extending the operational life of an existing FCS cabinet. Rather than migrating to the CENTUM VP platform immediately — which would require replacing the FCS processor, I/O modules such as the AAI141 analog input module or the ADV151 digital output module, and potentially the engineering workstation software — a direct AIP532 S1 swap preserves the existing investment in field wiring, marshalling panels, and loop tuning parameters. This is particularly valuable in continuous process industries where unplanned shutdowns carry significant production cost.

The ESB bus architecture used by the AIP532 S1 supports a deterministic, high-speed communication cycle between the FCS and its associated I/O nests. When sourcing a replacement, it is critical to verify that the firmware revision of the replacement module is compatible with the FCS processor version in service. TOPNLMS pre-inspects each AIP532 S1 unit and can provide firmware version documentation upon request, reducing the risk of compatibility issues during commissioning. In cases where the existing FCS is running an older firmware baseline, our technical team can advise on whether a firmware update is required before installation.

Physical installation of the AIP532 S1 follows the standard CENTUM ESB nest mounting procedure. The module is secured to the nest backplane via the front-panel locking lever, with no additional cabling required beyond the ESB bus ribbon connection already present in the cabinet. Power is supplied through the nest backplane from the existing nest power supply unit — typically a PW481 or equivalent CENTUM power supply module — so no separate power wiring is needed. Cabinet space requirements are identical to the original module, making this a true drop-in replacement with no modifications to the control cabinet layout.

For sites planning a phased migration from CENTUM CS 3000 to CENTUM VP, the AIP532 S1 serves as a critical bridge component during the transition period. A common migration strategy involves upgrading the FCS processor and engineering workstation first, while retaining the existing ESB bus I/O infrastructure — including the AIP532 S1 bus coupler, analog I/O modules, and digital I/O modules — until a scheduled maintenance window allows full I/O nest replacement. This approach minimizes the scope of any single outage and allows control engineers to validate the new FCS configuration against the live process before committing to full I/O cutover.

Communication protocol compatibility is a key consideration when replacing the AIP532 S1. The ESB bus uses a proprietary YOKOGAWA serial protocol that is distinct from the Vnet/IP Ethernet-based communication used in newer CENTUM VP systems. The AIP532 S1 is not interchangeable with Vnet/IP-based bus couplers, and any migration plan that involves transitioning from ESB to Vnet/IP will require replacement of both the bus coupler and the associated I/O nest assemblies. For sites remaining on the ESB bus architecture, the AIP532 S1 is the correct and only compatible bus coupler for that nest generation.

Procurement lead times for legacy CENTUM components can extend to several weeks through standard channels, particularly for modules that have been discontinued or placed on allocation. TOPNLMS maintains a dedicated inventory of hard-to-source YOKOGAWA modules — including the AIP532 S1, as well as related components such as the AIP531 ESB bus coupler, AAI141 analog input modules, ADV151 digital output modules, and ALR111 relay output modules — to support emergency replacement and planned maintenance scenarios. Orders placed before the daily cutoff are typically dispatched within 24 hours, with express international shipping available to minimize total downtime from fault to restoration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AIP532 S1 replacement rarely occurs in isolation. In most CENTUM CS 3000 cabinets, the bus coupler works in concert with a range of I/O and infrastructure modules that may also require attention during a planned maintenance window or emergency repair. The AAI141-S00 analog input module is one of the most commonly co-replaced components, as aging analog I/O modules in the same nest often exhibit drift or channel failures concurrent with bus coupler degradation. Similarly, the ADV151-P00 digital output module and ALR111 relay output module are frequently inspected and replaced as part of the same service event to avoid repeat outages.

On the power infrastructure side, the PW481 nest power supply module should be verified for output stability before commissioning a new AIP532 S1, as an under-voltage condition on the nest backplane can cause the bus coupler to fail initialization. For sites where the FCS processor itself is under evaluation, the AFV10S Field Control Unit is the standard processor pairing for smaller CENTUM CS 3000 configurations, while the AFV30S supports larger I/O counts. Engineering teams performing a concurrent FCS processor swap alongside the bus coupler replacement should plan for a full FCS download and loop checkout sequence.

Communication infrastructure between the FCS and the operator station also warrants review during this type of migration. The Vnet coaxial bus interface cards and associated Vnet repeater units that connect the FCS to the CENTUM HIS (Human Interface Station) should be confirmed operational before the replacement AIP532 S1 is brought online, as a degraded Vnet segment can mask bus coupler faults and complicate post-replacement diagnostics. For sites transitioning toward Ethernet-based supervision, the ALF111 Ethernet communication module provides a migration path for supervisory data without requiring full platform replacement.

Finally, for field engineers performing on-site commissioning, the YOKOGAWA SCP440 programming and communication cable is required for direct FCS configuration access during the bus coupler replacement procedure. Having this cable and the associated CENTUM CS 3000 engineering software (such as CENTUM CS 3000 R3) available on-site before beginning the replacement minimizes commissioning time and ensures that any firmware or configuration adjustments can be made immediately upon module installation.

Retrofit Guidance FAQ

Q: Can I replace the AIP532 S1 without modifying field wiring?
A: Yes. The AIP532 S1 connects to the ESB nest backplane only. All field wiring terminates at the I/O module terminal blocks, which are unaffected by a bus coupler replacement. No field wiring changes are required.

Q: Do I need to take the FCS offline to replace the AIP532 S1?
A: In most CENTUM CS 3000 configurations, the ESB bus coupler is not hot-swappable. A controlled FCS shutdown is recommended before removing the AIP532 S1. Consult your site’s FCS shutdown procedure and coordinate with the control room before proceeding.

Q: Will the replacement AIP532 S1 require firmware updates?
A: Firmware compatibility depends on the FCS processor revision in service. TOPNLMS provides firmware version documentation with each unit. If a firmware mismatch is identified, our technical team can advise on the update procedure before shipment.

Q: Is the AIP532 S1 compatible with CENTUM VP?
A: No. The AIP532 S1 is specific to the ESB bus architecture used in CENTUM CS and CENTUM CS 3000. CENTUM VP uses Vnet/IP Ethernet-based communication and requires different bus coupler hardware. If you are migrating to CENTUM VP, please contact us for a migration assessment.

Q: What is the physical space requirement for installation?
A: The AIP532 S1 occupies a single standard ESB nest slot. No additional cabinet space is required beyond the slot vacated by the failed unit.

Q: Can the AIP532 S1 be used in a redundant FCS configuration?
A: The AIP532 S1 supports the ESB bus coupler function in both simplex and redundant FCS configurations, depending on the nest and FCS processor type. Verify the redundancy configuration of your existing system before ordering to ensure the correct quantity of replacement units.

Warranty Assurance

Every YOKOGAWA AIP532 S1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a pre-shipment functional inspection to verify physical integrity, connector condition, and basic operational status. Units that do not pass inspection are not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, depending on the customer’s preference and the nature of the fault. Our after-sales response target is within 24 hours of a warranty claim submission. Customers are not required to return the faulty unit before a replacement is dispatched in urgent cases — we prioritize minimizing your downtime above all else.

For procurement teams requiring documentation, we can provide inspection reports, packing lists, and commercial invoices suitable for customs clearance and internal audit purposes. Express shipping via DHL, FedEx, or UPS is available to all major industrial regions, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East.
