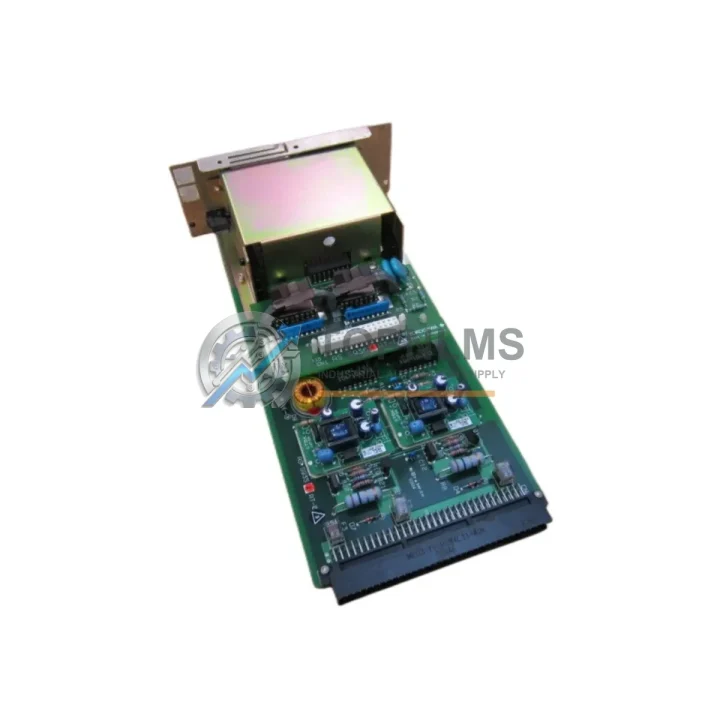

YOKOGAWA AIP502 Original Industrial Spare CENTUM CS

Product Overview

YOKOGAWA AIP502 V-Net Coupler: System Stability & Industrial Spare Maintenance Value

The YOKOGAWA AIP502 is an original V-Net coupler module designed for the CENTUM CS and CENTUM CS3000 Distributed Control System (DCS) platforms. As a critical bus interface component, the AIP502 maintains the integrity of the V-Net communication backbone — the real-time control network that links field control stations, engineering workstations, and operator stations across the entire process control architecture. In aging CENTUM CS installations still operating in refineries, chemical plants, power generation facilities, and continuous manufacturing environments, the AIP502 represents one of the highest-priority spare parts to maintain in stock. A single failed coupler can isolate an entire control loop segment, triggering unplanned shutdowns and costly production losses.

Sourced directly from verified supply channels, each AIP502 unit supplied by TOPNLMS is an original YOKOGAWA component — not a substitute or compatible replacement — ensuring full electrical and protocol compatibility with your existing CENTUM CS or CS3000 system without any firmware reconfiguration or system re-engineering.

Critical Technical Specs

Preventive Maintenance Strategy

In a CENTUM CS or CS3000 control system, the V-Net coupler does not operate in isolation. Its reliability is directly tied to the health of the surrounding communication and power infrastructure. When scheduling a planned maintenance window or responding to a V-Net communication fault, maintenance engineers should treat the AIP502 replacement as part of a broader inspection protocol rather than a single-point fix.

Begin by verifying the integrity of the V-Net coaxial cables and BNC connectors that terminate at the AIP502. Degraded cable shielding or loose terminations are a common root cause of intermittent bus errors that are often misdiagnosed as coupler failure. At the same time, inspect the AIB802 V-Net Bus Terminator at each end of the V-Net segment — a failed terminator produces reflection noise that can destabilize the entire bus even when the AIP502 itself is functioning correctly.

The AIP502 draws its operating power from the CENTUM CS system bus, which means the health of the AIP811 or AIP812 Power Supply Module directly affects coupler stability. During any cabinet inspection, measure the DC output voltage of the power supply under load and compare against YOKOGAWA’s specified tolerance band. Voltage sag or ripple outside specification will cause intermittent coupler resets that are difficult to trace without power quality measurement.

Field Control Stations (FCS) connected via the V-Net should also be inspected during the same maintenance cycle. The ACM11 or ACM12 Communication Module within each FCS handles the V-Net protocol stack; a degraded ACM module can generate malformed bus traffic that stresses the coupler. Similarly, the ALR111 or ALR121 I/O Module racks connected downstream of the FCS should be checked for loose backplane connectors and corrosion on the rack bus contacts, as these are common failure points in systems operating beyond 10 years.

For facilities running CENTUM CS3000 with an integrated FOUNDATION Fieldbus or PROFIBUS segment, the ALF111 Fieldbus Communication Module and associated field junction boxes should be included in the inspection scope. A V-Net fault that isolates an FCS will also interrupt all fieldbus segments managed by that station, compounding the impact of a single coupler failure.

Preventive maintenance planning should also account for the HIS (Human Interface Station) workstation hardware — specifically the V-Net interface card installed in the engineering or operator workstation. These cards are subject to the same aging and connector fatigue as field-side couplers and are frequently overlooked until a workstation loses visibility of the control network entirely.

Finally, maintain a minimum stock of one spare AIP502 per V-Net segment in your facility, alongside spares for the AIP811 power supply, at least one ACM communication module, and a set of BNC terminators. This baseline spare parts inventory allows a trained technician to restore V-Net communication within a single shift, minimizing mean time to repair (MTTR) and protecting production continuity.

Strategic Replacement Solutions

Many CENTUM CS installations have been in continuous operation for 15 to 25 years. YOKOGAWA’s long-term parts support policy means that original modules such as the AIP502 remain available through authorized and verified secondary-market channels, but lead times from standard distributors can extend to 8–16 weeks for less common modules. Maintaining a pre-positioned spare eliminates this lead time risk entirely.

The AIP502 is a direct drop-in replacement for any failed or degraded V-Net coupler in a CENTUM CS or CS3000 system. No software configuration changes are required at the DCS level — the replacement module is recognized automatically by the system upon power-up, provided the V-Net segment addressing and termination are correctly maintained. This plug-and-play replacement characteristic makes the AIP502 one of the most operationally efficient spares to stock: installation time is typically under 30 minutes for a trained field engineer, and the system can be returned to full automatic control without an engineering workstation session in most configurations.

For facilities planning a phased migration from CENTUM CS to CENTUM VP or CENTUM VP R6, the AIP502 remains fully compatible with the legacy CS hardware during the transition period, allowing mixed-generation systems to operate on a shared V-Net backbone while new FCS hardware is commissioned in parallel. This compatibility significantly reduces the capital expenditure and operational risk associated with full system cutover.

Support FAQ

Q1: Is the AIP502 compatible with both CENTUM CS and CENTUM CS3000?
Yes. The AIP502 V-Net coupler is compatible with both CENTUM CS (all revisions) and CENTUM CS3000 (R3.x and R4.x). It operates on the same V-Net bus architecture used across both platforms. If you are uncertain about your specific system revision, please contact us with your FCS model number and we will confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on each AIP502 unit?
Each AIP502 unit undergoes a functional power-on test and bus communication verification before dispatch. Units that do not pass functional testing are not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the buyer.

Q4: How should I manage AIP502 spare parts inventory for a multi-segment CENTUM CS system?
As a general guideline, maintain one spare AIP502 per two V-Net segments, with a minimum of one unit per facility regardless of segment count. For critical process areas (reactor control, compressor control, safety-instrumented system interfaces), a dedicated spare per segment is recommended. Rotate spares on a 5-year cycle or upon any evidence of connector oxidation or housing degradation.
