YOKOGAWA AIP434-S1 Replacement for FA-M3 Series

Product Overview

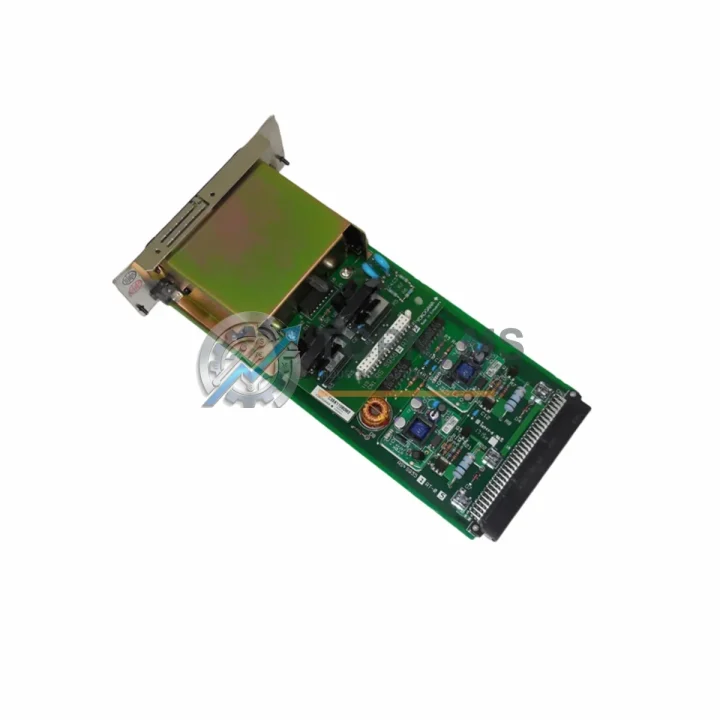

YOKOGAWA AIP434-S1 Replacement for FA-M3 Series: Seamless Analog Input Upgrade

When your FA-M3 control system requires a reliable analog input replacement or your existing AIP434-S1 module has reached end-of-life, a smooth migration is critical to maintaining process continuity. The YOKOGAWA AIP434-S1 is a 4-channel isolated analog input module designed for the FA-M3 modular PLC platform — one of YOKOGAWA’s most widely deployed automation architectures across petrochemical, power generation, water treatment, and discrete manufacturing facilities.

Upgrading or replacing the AIP434-S1 within an active FA-M3 rack does not require reprogramming the entire control application. The module slots directly into the FA-M3 base unit, maintaining the same I/O address mapping as the original installation. Engineers migrating from older analog input cards such as the AIP434 (non-S1 variant) or transitioning from a legacy YOKOGAWA STARDOM or CENTUM CS 3000 distributed control architecture will find the AIP434-S1 fully compatible with standard 4–20 mA and 1–5 V signal wiring conventions, eliminating the need for signal conditioning adapters or rewiring of field junction boxes.

Each of the four input channels is galvanically isolated, which is essential when replacing modules in environments with ground loop interference — a common challenge in older control cabinets where multiple analog loops share a common reference. The isolation architecture mirrors that of the AIP434-S1’s predecessor modules, ensuring that existing shielded twisted-pair field wiring can be reconnected directly to the terminal block without modification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete FA-M3 analog input migration rarely involves a single module swap. In practice, field engineers replacing the AIP434-S1 often simultaneously address adjacent system components to minimize future downtime. The FA-M3 base unit — available in F3BU04, F3BU16, and F3BU32 configurations — may require inspection or replacement if the backplane connectors show signs of oxidation from years of service in humid or chemically aggressive environments.

Power supply modules such as the F3PU20-0N or F3PU30-0N are frequently evaluated during the same maintenance window, as analog input accuracy is directly dependent on supply rail stability. If the existing power module is approaching its rated service life, replacing it alongside the AIP434-S1 eliminates a common root cause of signal drift and measurement error.

For systems where the AIP434-S1 communicates process values upstream to a CENTUM VP or CENTUM CS 3000 DCS via an F3LC11-1N or F3LC12-1N Ethernet communication module, the migration plan should verify that the communication module firmware supports the updated I/O configuration. In most cases, no firmware update is required, but the WideField3 programming software should be used to confirm the I/O parameter table after module replacement.

Sites transitioning from older YOKOGAWA UT series loop controllers or from a standalone STARDOM FCN/FCJ controller to a centralized FA-M3 architecture will find the AIP434-S1 a natural fit for consolidating analog signal acquisition. The module’s isolated channel design supports direct connection of thermocouple transmitters, pressure transducers, and flow transmitters without additional signal isolators — reducing panel wiring complexity and cabinet footprint.

Digital output modules such as the F3YD32-0N are commonly installed in the same rack to provide interlock and actuator control signals, while the F3SP71-4N sequence CPU module handles ladder logic execution. For HMI integration, YOKOGAWA’s ProSafe-RS safety controller or a third-party SCADA system connected via Modbus TCP through the FA-M3 Ethernet module can read AIP434-S1 channel data without any additional protocol conversion hardware.

When the control cabinet also houses older analog output modules such as the AOP434-S1, replacing both the input and output modules during the same scheduled outage is strongly recommended to restore full analog loop integrity and avoid asymmetric aging between paired I/O cards.

Retrofit Guidance FAQ

Q: Can the AIP434-S1 replace an older AIP434 (without the -S1 suffix) directly?
A: Yes. The AIP434-S1 is the enhanced revision of the AIP434, featuring improved channel isolation. It occupies the same rack slot, uses the same 20-pin terminal block wiring layout, and is recognized by the FA-M3 CPU without any configuration change in WideField2 or WideField3.

Q: Is rewiring of field cables required?
A: No rewiring is required for standard 4–20 mA two-wire transmitter loops. The terminal block pin assignment is identical to the predecessor module. Shielded cable connections and drain wire grounding points are preserved.

Q: What programming software is needed after replacement?
A: WideField3 is recommended for FA-M3R systems; WideField2 is compatible with legacy FA-M3 configurations. No I/O address reassignment is needed if the module is installed in the same slot position.

Q: Does the AIP434-S1 support HART protocol for smart transmitters?
A: The AIP434-S1 passes the 4–20 mA HART signal transparently. A separate HART multiplexer or handheld communicator connected to the field wiring can communicate with HART-enabled transmitters without interference from the module.

Q: What is the physical installation clearance requirement?
A: The AIP434-S1 occupies a single standard FA-M3 slot (approximately 25 mm width). No additional clearance beyond standard FA-M3 rack spacing is required. The module can be hot-swapped on FA-M3R racks with hot-swap capability enabled.

Q: Can this module be used in a CENTUM VP I/O expansion rack?
A: No. The AIP434-S1 is designed exclusively for the FA-M3 backplane bus. CENTUM VP uses a separate I/O module family (e.g., AAI141, AAI143). For CENTUM VP analog input replacement, a different module series is required.

Warranty Assurance

Every YOKOGAWA AIP434-S1 module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including channel signal accuracy testing, isolation resistance measurement, and backplane connector inspection. Modules that do not meet YOKOGAWA’s published specifications are quarantined and not shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund at the buyer’s discretion. Our technical support team responds to warranty claims within 24 business hours. Replacement units are dispatched from our Xiamen warehouse with priority freight to minimize control system downtime.

For procurement teams requiring documentation, we provide a test report, packing list, and commercial invoice with each shipment. Export compliance documentation for cross-border shipments is prepared in accordance with applicable trade regulations. Bulk orders for MRO stocking programs are eligible for extended warranty negotiation — contact our sales team for details.
