YOKOGAWA AI-917-00 Ruggedized Analog Input Module

Product Overview

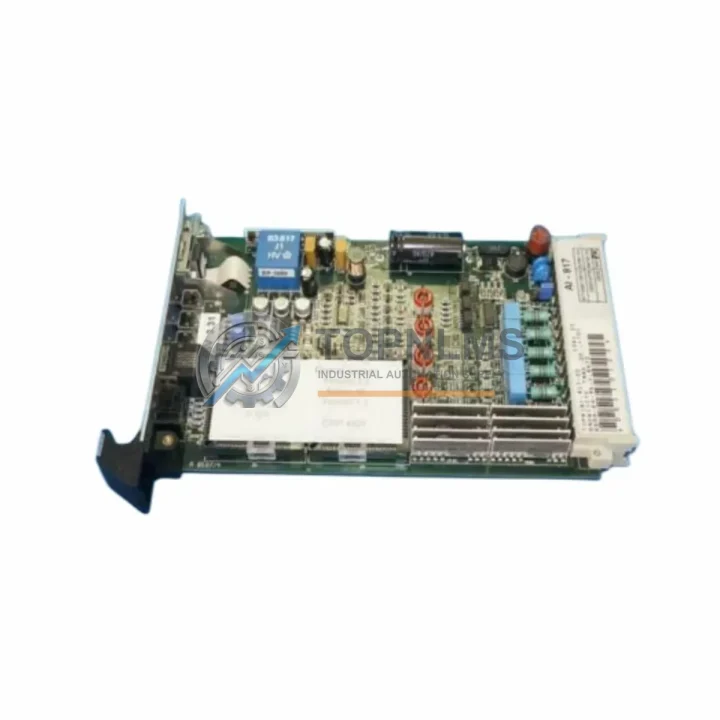

YOKOGAWA AI-917-00 Ruggedized Analog Input Module for Harsh Industrial Environments

The YOKOGAWA AI-917-00 is an 8-channel analog input module engineered for continuous, reliable operation within the CENTUM VP Distributed Control System (DCS) platform. Designed to meet the demanding requirements of heavy industry, this module delivers stable signal acquisition in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI). Whether deployed in a coastal petrochemical refinery, an underground mining control room, or a high-voltage power generation facility, the AI-917-00 maintains measurement integrity where lesser components fail.

At its core, the AI-917-00 accepts standard 4–20 mA analog signals from field transmitters, converting them with high-resolution accuracy into digital values processed by the CENTUM VP controller. Its robust internal shielding and galvanic isolation architecture suppress common-mode noise and ground loop interference — critical in facilities where variable-frequency drives (VFDs), large motor starters, and high-current bus bars operate in close proximity to control wiring. Engineers integrating this module alongside the YOKOGAWA AAI143-S00 HART analog input module or the AAI141-S00 series will find consistent signal conditioning behavior across the I/O subsystem, simplifying loop calibration and commissioning.

The module slots directly into the CENTUM VP field control station (FCS) node unit, sharing the same backplane architecture as the AO-917-00 analog output module and the DI-917-00 digital input module. This physical and electrical compatibility means that a control cabinet originally configured for legacy CS 3000 I/O can be upgraded incrementally — replacing individual modules without redesigning the entire rack layout or rewiring terminal blocks. The AI-917-00 is fully compatible with the YOKOGAWA ANB10D node unit and the ANT1D terminal board, preserving existing field wiring during modernization projects.

In oil and gas upstream facilities, the AI-917-00 is routinely deployed to monitor pressure transmitters, flow meters, and temperature sensors across wellhead control panels and separator skids. Its sealed housing and conformal-coated PCB resist condensation and corrosive atmospheres — a prerequisite for installations in classified hazardous areas where hydrogen sulfide or hydrocarbon vapors may be present. Power plant operators rely on the module within boiler management systems and turbine control loops, where millisecond-level scan consistency is non-negotiable. Water treatment authorities integrate it into SCADA-linked CENTUM VP systems to monitor dosing pump flow rates and tank level transmitters across geographically distributed pump stations.

For mining and mineral processing operations, the AI-917-00 withstands the vibration profiles generated by crushers, conveyors, and ball mills. Its wide operating temperature range accommodates both the heat generated by adjacent power electronics and the cold ambient conditions of high-altitude or northern-climate installations. Metallurgical plants processing aluminum, copper, or steel benefit from the module’s EMI immunity when installed near induction furnaces and arc welding equipment — environments where standard I/O hardware frequently suffers from data corruption or spurious alarms.

Procurement teams evaluating the AI-917-00 as a spare part or direct replacement for a failed or end-of-life module will find that TOPNLMS maintains verified stock sourced through established industrial distribution channels. Each unit undergoes functional testing prior to dispatch, verifying channel-by-channel signal accuracy, power consumption within specification, and backplane communication integrity. Units are shipped in anti-static packaging with individual test records. Standard lead time from order confirmation to dispatch is 3–7 business days for in-stock units, with expedited options available for critical plant shutdowns.

Rugged Specifications Table

Comprehensive Protection Solutions

A resilient CENTUM VP control architecture depends on more than a single I/O module. The AI-917-00 operates most effectively when paired with a complete ecosystem of compatible, ruggedized components. The YOKOGAWA AO-917-00 analog output module provides the corresponding control signal path back to final control elements such as control valves and positioners, maintaining closed-loop integrity even under high-noise conditions. For digital status monitoring — limit switches, motor run feedback, and safety interlock confirmation — the DI-917-00 digital input module shares the same node unit slot architecture, simplifying cabinet layout and spare parts management.

Communication between the field control station and the human-machine interface (HMI) or engineering workstation relies on the CENTUM VP communication bus. The YOKOGAWA ACM12 communication module manages this data highway, and its reliability directly affects how quickly the AI-917-00’s measured values reach the operator display. In facilities where redundant communication paths are required, a secondary ACM12 unit in hot-standby configuration ensures no single point of failure interrupts process visibility.

Power supply integrity is equally critical. The YOKOGAWA PW481 power supply module provides the regulated 24 VDC rail that feeds the node unit, and its built-in surge protection and wide input voltage tolerance make it well-suited for facilities with unstable grid power or frequent switching transients. Pairing the PW481 with a redundant power supply module eliminates power-related downtime — a common root cause of unexpected I/O module failures in continuous process plants.

For installations requiring signal conditioning between legacy 2-wire transmitters and the AI-917-00 input channels, DIN-rail-mounted signal isolators and loop-powered barriers provide an additional layer of protection against ground faults and voltage spikes originating in the field. Terminal modules such as the YOKOGAWA TB820V simplify field wiring connections and allow individual channel disconnection for maintenance without interrupting adjacent loops — a significant advantage during partial-plant turnarounds.

Application in Critical Infrastructure

The AI-917-00 has established a proven service record across the most demanding sectors of critical infrastructure. In offshore oil and gas platforms, it monitors subsea wellhead pressure and temperature transmitters within topside process control systems, where salt-laden air and constant mechanical movement demand the highest levels of hardware robustness. Onshore LNG liquefaction terminals deploy it within cold-box temperature monitoring loops, where cryogenic process conditions create extreme thermal gradients between field instruments and the control room.

Power generation facilities — both conventional thermal plants and combined-cycle gas turbine installations — rely on the AI-917-00 within their distributed control systems to monitor boiler drum levels, steam flow rates, and turbine exhaust temperatures. The module’s scan rate consistency ensures that protective interlocks receive accurate, timely data, reducing the risk of spurious trips or, more critically, missed process excursions. Municipal water authorities operating large-scale desalination or wastewater treatment plants integrate the module into CENTUM VP systems managing chemical dosing, filtration pressure differentials, and effluent quality parameters.

In the metals and mining sector, the AI-917-00 is found in smelter process control systems monitoring furnace temperatures, electrode current densities, and cooling water flow rates. Its ability to maintain signal accuracy in the presence of high-frequency electrical noise generated by arc furnaces and rectifier banks makes it a preferred choice for engineers specifying I/O hardware in these environments. Cement and aggregate producers similarly depend on it for kiln temperature profiling and raw mill process control, where dust ingress and vibration are constant operational realities.

Security & Quality FAQ

Q: What warranty coverage is provided with the AI-917-00?
A: Every AI-917-00 unit supplied by TOPNLMS carries a 12-month functional warranty from the date of dispatch. If the module fails to perform within its published specifications during this period, we provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receiving the returned item.

Q: How is each unit tested before shipment?
A: Each AI-917-00 undergoes a pre-shipment functional test covering channel-by-channel signal accuracy verification, backplane communication handshake confirmation, and power consumption measurement. A test record is included with every shipment. Units that do not pass all test criteria are quarantined and not dispatched.

Q: Is the AI-917-00 compatible with both CENTUM VP and CS 3000 systems?
A: The AI-917-00 is designed for the CENTUM VP platform. Compatibility with CS 3000 depends on the specific node unit generation and firmware revision in your installation. We recommend providing your FCS model number and software version when inquiring, so our technical team can confirm compatibility before order placement.

Q: Can TOPNLMS support long-term or repeat procurement for maintenance programs?
A: Yes. TOPNLMS supports planned maintenance procurement programs for industrial operators requiring regular spare part replenishment. We can provide volume pricing, reserved stock allocation, and priority dispatch agreements for customers with ongoing CENTUM VP maintenance requirements. Contact our team to discuss a tailored supply arrangement.
