YOKOGAWA AFV10D S2 Replacement for CENTUM VP DCS

Product Overview

YOKOGAWA AFV10D S2 Replacement for CENTUM VP DCS: Smooth Migration & Backward-Compatible Upgrade

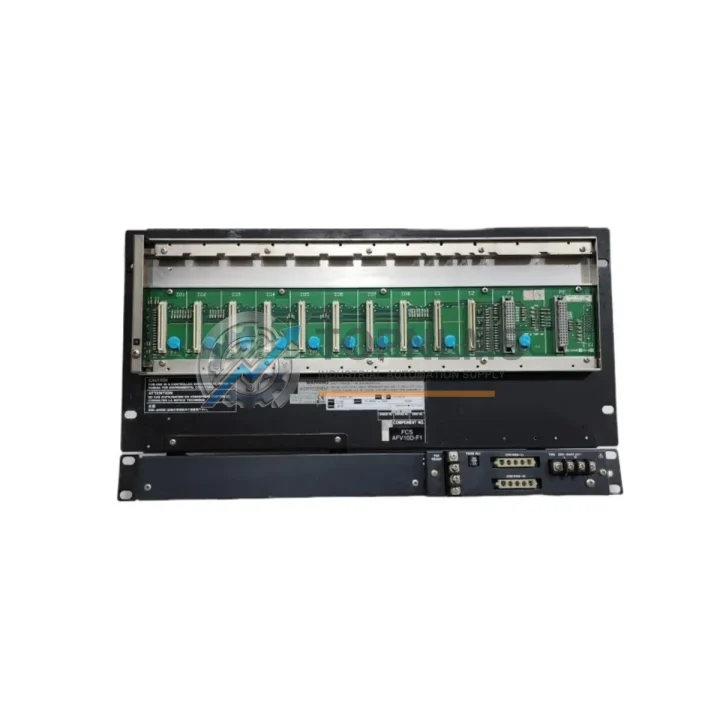

The YOKOGAWA AFV10D S2 is a redundant field control unit (FCU) designed for the CENTUM VP distributed control system platform. As legacy CENTUM CS 3000 and early CENTUM VP installations approach end-of-life, plant engineers and procurement teams are actively seeking verified replacement units and upgrade paths that minimize engineering rework, preserve existing I/O wiring, and reduce unplanned downtime. The AFV10D S2 addresses all of these requirements directly — it is a drop-in compatible FCU that supports the same Vnet/IP communication backbone, the same FCS (Field Control Station) architecture, and the same IOM (I/O Module) expansion chassis used across the CENTUM VP ecosystem.

Whether you are replacing a failed AFV10D unit, refreshing aging control hardware ahead of a planned turnaround, or migrating from a CENTUM CS 3000 platform, the AFV10D S2 provides a validated, low-disruption upgrade path. Its dual-redundant CPU architecture ensures bumpless switchover in the event of a primary processor fault, making it suitable for continuous process industries including refining, petrochemicals, power generation, and pharmaceutical manufacturing.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AFV10D S2 migration rarely involves the FCU in isolation. In practice, field engineers replacing or upgrading a CENTUM VP field control station will also evaluate the surrounding hardware to ensure system-wide reliability. During the commissioning of an AFV10D S2 replacement, the following components are commonly reviewed and, where necessary, replaced in parallel.

The PW481 and PW482 power supply modules that feed the FCU chassis are frequently assessed during any FCU swap — aging capacitors in power modules are a common secondary failure point. Similarly, the EB401 Vnet/IP communication bus coupler and associated EB501 node interface units should be verified for firmware compatibility with the AFV10D S2’s Vnet/IP stack before going live. If the plant is running a mixed-generation network, the BCV1 Vnet/IP bus converter may be required to bridge legacy Vnet segments to the current Vnet/IP backbone.

On the I/O side, the AAI141-S00 analog input module and ADV151-P00 digital input module are the most commonly paired IOM cards in CENTUM VP FCS installations. Both are fully compatible with the AFV10D S2 and can remain in place without re-termination. If the existing TB805 terminal board or TB810 field terminal assembly wiring is intact, no field cable changes are needed — a significant advantage in hazardous-area installations where re-cabling requires hot-work permits and extended outage windows.

For plants that are simultaneously upgrading their operator interface, the YOKOGAWA FAST/TOOLS SCADA or a ProSafe-RS safety controller integration should be validated against the AFV10D S2’s function block library to confirm that existing SFC (Sequential Function Chart) and FBD (Function Block Diagram) logic transfers cleanly. In multi-FCS architectures, the AFV30D domain controller may also be part of the upgrade scope, particularly where domain-level redundancy is being introduced for the first time.

Finally, procurement teams should confirm availability of the KS1 programming cable and CENTUM VP Builder license before scheduling the cutover window, as these are required for online FCU replacement procedures and post-swap function block verification.

Retrofit Guidance FAQ

Q: Can I replace the AFV10D with the AFV10D S2 without modifying existing field wiring?
A: Yes. The AFV10D S2 uses the same IOM expansion bus and terminal board interface as its predecessor. Existing AAI, ADV, AAO, and ADO series I/O modules and their associated TB-series terminal boards remain fully compatible. No field wiring changes are required.

Q: Do I need to re-download the control program after swapping the FCU?
A: An online download is supported via CENTUM VP Builder. The replacement procedure allows the new AFV10D S2 to be loaded with the existing FCS database while the plant remains in operation, provided the redundant partner FCU is healthy. A cold restart is not required under normal replacement conditions.

Q: Is the AFV10D S2 compatible with both Vnet and Vnet/IP networks?
A: The AFV10D S2 natively supports Vnet/IP. Plants still operating legacy Vnet segments will require a BCV1 bus converter to interface with the AFV10D S2. YOKOGAWA’s migration documentation recommends completing the Vnet-to-Vnet/IP transition as part of any FCU upgrade project to ensure long-term supportability.

Q: What physical space does the AFV10D S2 require in the control cabinet?
A: The AFV10D S2 occupies the same FCU slot dimensions as the original AFV10D. No cabinet modifications, additional DIN rail space, or ventilation changes are required. The S2 redundant configuration uses the same dual-slot chassis footprint as the non-redundant variant.

Q: Can the AFV10D S2 be used as a direct replacement for a CENTUM CS 3000 FCS unit?
A: The AFV10D S2 is a CENTUM VP platform component and is not a direct plug-in replacement for CENTUM CS 3000 hardware. A CS 3000 to CENTUM VP migration requires a system-level engineering project, including database conversion using YOKOGAWA’s migration tools. However, the AFV10D S2 is the target FCU for such migrations and is the recommended replacement controller for CS 3000 end-of-life projects.

Q: What communication protocols does the AFV10D S2 support for field device integration?
A: The AFV10D S2 supports FOUNDATION Fieldbus H1, HART (via compatible I/O modules such as the AAI141-H), and PROFIBUS DP through dedicated communication modules. Existing HART-enabled field instruments can be retained without modification during an FCU replacement.
