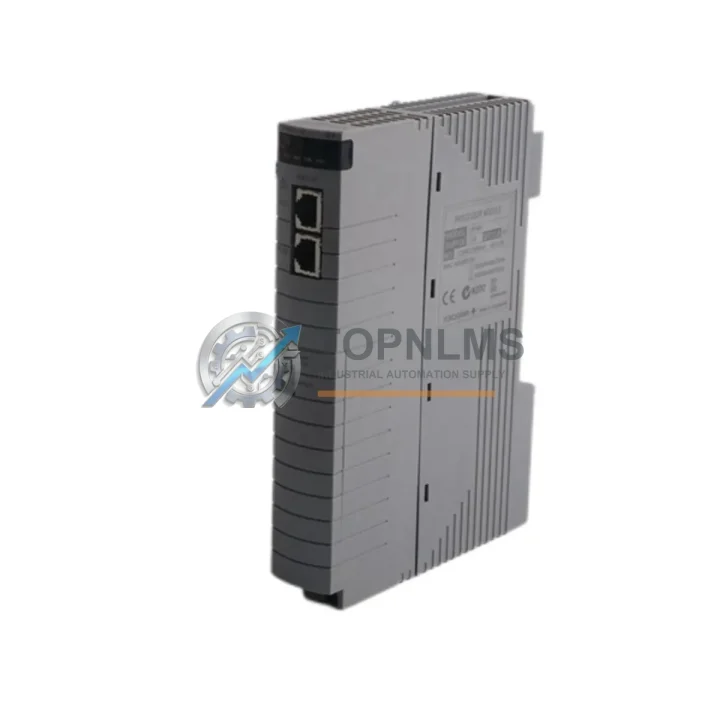

YOKOGAWA ADV161-P00 S2 Ruggedized Digital Input Module

Product Overview

YOKOGAWA ADV161-P00 S2 Ruggedized Digital Input Module: Industrial Resilience in the Harshest Environments

The YOKOGAWA ADV161-P00 S2 is a 64-channel digital input module engineered for the CENTUM VP distributed control system — one of the most trusted DCS platforms in continuous process industries worldwide. Designed to operate reliably under extreme thermal stress, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference, this module delivers the signal integrity and system stability that mission-critical industrial facilities demand.

In environments where a single point of failure can halt an entire production line or trigger a safety shutdown, the ADV161-P00 S2 provides the ruggedized digital input acquisition that plant engineers and control system integrators rely on. Its robust hardware architecture, combined with YOKOGAWA’s proven CENTUM VP platform engineering, ensures that field signals from sensors, switches, and interlock circuits are captured accurately — even when the surrounding environment is anything but forgiving.

Rugged Specifications Table

Comprehensive Protection Solutions

The ADV161-P00 S2 does not operate in isolation — it is a critical node within a broader CENTUM VP control architecture. In a typical process plant control cabinet, this digital input module works in concert with analog input modules such as the AAI141-S00 and AAI543-H00, which handle 4–20 mA field signals from transmitters and flow meters. Digital output modules like the ADV551-P00 respond to the logic processed from the DI signals captured by the ADV161-P00 S2, driving solenoid valves, motor starters, and interlock relays.

Within the CENTUM VP node architecture, the ANB10D node unit provides the backplane and power distribution that the ADV161-P00 S2 slots into, while the ACM12 communication module manages V-net data transmission between field control stations and the human interface station. For installations requiring functional safety compliance, the ADV161-P00 S2 is often deployed alongside YOKOGAWA’s ProSafe-RS safety instrumented system modules, ensuring that the standard control layer and the safety layer share consistent field signal data without cross-contamination.

Power integrity is equally critical. Industrial power supply units rated for 24 VDC panel distribution — such as those from the YOKOGAWA PW481 series — provide the stable, noise-filtered DC power that the I/O module rack requires. Surge protection terminal blocks and EMI filtering components installed at the cabinet entry points further shield the ADV161-P00 S2 from transient voltage spikes common in heavy industrial environments. Communication redundancy is maintained through dual V-net ring topology, ensuring that even if one network segment experiences interference or a cable fault, the digital input data continues to flow uninterrupted to the field control station.

Application in Critical Infrastructure

The YOKOGAWA ADV161-P00 S2 has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, it monitors the status of wellhead safety valves, pipeline isolation valves, and emergency shutdown (ESD) interlock circuits — environments where ambient temperatures can swing dramatically between day and night cycles and where hydrocarbon vapors create both explosion risk and accelerated corrosion of electronic components.

In coal-fired and gas-fired power generation plants, the module acquires digital status signals from turbine protection systems, boiler interlock circuits, and generator breaker positions. The high-vibration environment generated by rotating machinery — turbines, pumps, compressors — demands that every I/O module in the control cabinet maintain solid electrical contact and stable signal acquisition without false triggering. The ADV161-P00 S2’s robust module locking mechanism and CENTUM VP’s built-in signal validation logic address this challenge directly.

In water and wastewater treatment facilities, the module handles digital inputs from pump run/fail feedback, valve open/close confirmation, and level switch signals across multiple treatment stages. High humidity, chemical vapors, and the continuous 24/7 operational profile of water utilities make component reliability non-negotiable. Similarly, in metallurgical and mining operations — blast furnaces, ore processing lines, and smelting facilities — the ADV161-P00 S2 endures extreme dust loading, high ambient temperatures, and powerful electromagnetic fields generated by large electric arc furnaces and variable frequency drives (VFDs), all while maintaining the signal fidelity that safe, automated production requires.

For chemical and petrochemical process plants operating under IEC 61511 functional safety requirements, the ADV161-P00 S2 serves as the digital input acquisition layer for both the basic process control system (BPCS) and, in some architectures, as a monitored input to the safety instrumented system. Its compatibility with the CENTUM VP platform’s redundant field control station (FCS) configurations means that even in the event of a single module failure, the system can continue operating on the redundant path while maintenance personnel replace the faulty unit — minimizing unplanned downtime and protecting production continuity.
