Yokogawa ADV159-P01 Ruggedized DCS I/O Module for Harsh Environments

Product Overview

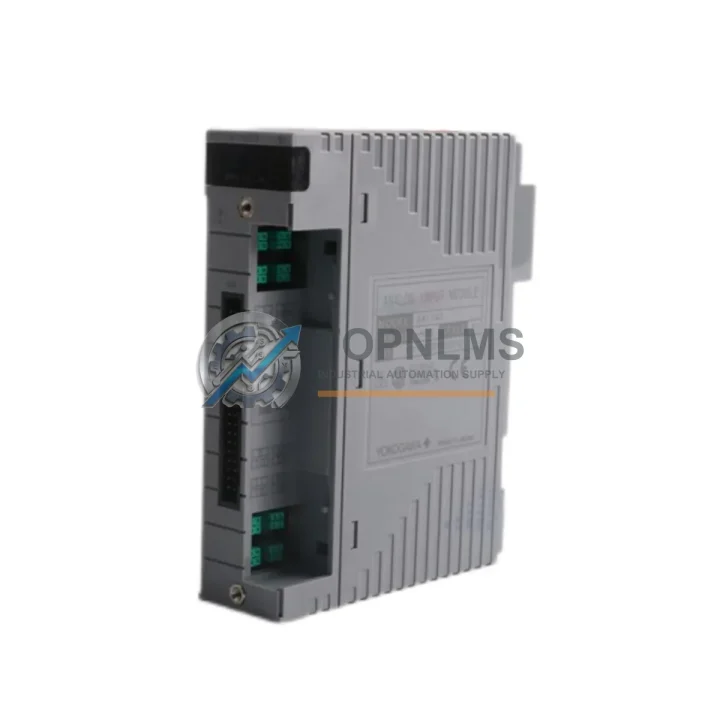

Yokogawa ADV159-P01 Ruggedized DCS Digital I/O Module for Harsh Environments

The Yokogawa ADV159-P01 is a 32-channel digital input/output module engineered for the CENTUM VP and CS 3000 distributed control systems — two of the most widely deployed DCS platforms in continuous-process industries worldwide. Designed to operate reliably under the demanding conditions found in oil refineries, chemical plants, power generation facilities, and heavy manufacturing environments, the ADV159-P01 delivers the signal integrity, thermal stability, and electromagnetic resilience that mission-critical automation demands.

In high-stakes industrial environments, a single unreliable I/O module can cascade into unplanned shutdowns, safety incidents, or costly production losses. The ADV159-P01 addresses this risk directly. Its ruggedized construction tolerates wide operating temperature ranges, high relative humidity, airborne particulates, and the persistent vibration common to compressor rooms, turbine halls, and heavy-press lines. The module’s shielded signal paths and onboard filtering circuits suppress electromagnetic interference generated by variable frequency drives, large motor starters, and high-current bus bars operating in close proximity — conditions that routinely degrade lesser components.

Within the CENTUM VP architecture, the ADV159-P01 integrates seamlessly with field control stations, engineering workstations, and the system’s redundant communication bus. It works in concert with analog I/O modules such as the AAI143-S and AAI841-S, pulse input modules, and the RIO (Remote I/O) node infrastructure to form a complete, distributed field-signal acquisition layer. When paired with Yokogawa’s ESB bus coupler modules and field network interface cards, the ADV159-P01 participates in a fully redundant control loop that maintains process continuity even during partial hardware failures.

For facilities running legacy CS 3000 systems, the ADV159-P01 provides a direct, validated replacement path. Procurement teams managing aging DCS infrastructure frequently source this module as a critical spare to protect against obsolescence risk. Its pin-compatible form factor and firmware compatibility with existing CS 3000 field control stations mean that replacement can be executed during a scheduled maintenance window without requiring system reconfiguration or engineering rework — a significant operational advantage in continuous-production environments where downtime is measured in tens of thousands of dollars per hour.

Rugged Specifications Table

Comprehensive Protection Solutions

The ADV159-P01 does not operate in isolation — it is one node in a layered protection and control architecture. In a typical CENTUM VP control cabinet, it shares the backplane with analog input modules such as the AAI143-S (4–20 mA analog input, 16-channel) and the AAV542-S analog output module, which together handle continuous process variable measurement and final control element actuation. The digital signals managed by the ADV159-P01 — motor run/stop status, valve open/close confirmation, interlock trip signals — feed directly into the safety logic executed by the field control station processor card.

In facilities where functional safety is governed by IEC 61511, the ADV159-P01 is often deployed alongside Yokogawa’s ProSafe-RS safety instrumented system modules, which handle SIL-rated shutdown logic. The digital I/O data from the ADV159-P01 provides process state information to the safety layer, enabling coordinated emergency shutdown sequences without manual intervention. Surge protection terminal blocks and shielded field wiring, routed through marshalling cabinets equipped with Yokogawa TB series terminal modules, further protect the module’s input circuits from transient overvoltages caused by lightning strikes or switching surges on long field cable runs.

Power integrity is maintained by redundant 24 VDC power supply units — commonly the Yokogawa PW481 or equivalent industrial DIN-rail power supplies — which feed the control cabinet bus. Redundant power architecture ensures that a single PSU failure does not interrupt the ADV159-P01’s operation or cause spurious digital output transitions that could trigger unintended actuator movement. Communication between the ADV159-P01 and the engineering workstation is managed through the CENTUM VP’s Vnet/IP control network, a deterministic Ethernet-based protocol that maintains scan-cycle integrity even under high network load conditions.

For remote I/O applications — common in large petrochemical complexes where field devices are distributed across wide process areas — the ADV159-P01 can be installed in RIO (Remote I/O) node enclosures, connected back to the field control station via fiber-optic ESB bus extenders. This topology eliminates the need to route hundreds of individual field cables back to a central control room, reducing installation cost and improving noise immunity across long cable distances.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the ADV159-P01 monitors wellhead valve positions, compressor seal gas pressure switches, and emergency shutdown valve (ESDV) status signals. Its ability to maintain reliable digital signal acquisition in environments with ambient temperatures exceeding 45 °C, combined with resistance to the hydrocarbon vapors and corrosive atmospheres present in offshore platforms and onshore gas processing plants, makes it a preferred choice for brownfield DCS upgrades where CENTUM VP or CS 3000 systems are already installed.

In coal-fired and combined-cycle power plants, the module handles boiler interlock signals, turbine protection relay status, and generator breaker position feedback — all of which must be read with deterministic scan-cycle timing to support fast-acting protection functions. The module’s compliance with IEC 61000 EMC standards ensures that the high-frequency switching noise generated by large power electronics in the plant’s electrical switchgear rooms does not corrupt digital signal states.

In municipal water treatment and wastewater facilities, the ADV159-P01 manages pump run/fault status, chemical dosing valve positions, and UV disinfection system interlocks. These facilities often operate with minimal on-site engineering staff, making the module’s long mean time between failures (MTBF) and straightforward hot-swap replacement procedure critical to maintaining continuous water supply without requiring specialist DCS engineers on standby.

In metallurgical and steel production environments, where electric arc furnaces, rolling mills, and continuous casting lines generate extreme electromagnetic interference and mechanical vibration, the ADV159-P01’s shielded construction and vibration-tolerant mounting system allow it to maintain signal integrity in conditions that would cause failures in standard commercial-grade I/O hardware.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the ADV159-P01 fails within the warranty period due to a verified hardware defect, TOPNLMS will provide a replacement unit or full refund. Warranty claims are processed via email to [email protected] with the order reference and a description of the failure mode. Physical inspection or return of the defective unit may be required for warranty validation.

Q2: How is each unit tested before shipment?
Every ADV159-P01 unit undergoes functional verification prior to dispatch. Testing includes power-on self-test confirmation, channel continuity checks across all 32 digital I/O points, and visual inspection for physical damage, corrosion, or component anomalies. Units that do not pass functional verification are quarantined and not shipped. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the ADV159-P01 compatible with both CENTUM VP and CS 3000 systems?
Yes. The ADV159-P01 is designed for use in both CENTUM VP (R4.x through R6.x) and CS 3000 (R3.x) distributed control systems. It is pin-compatible with the existing backplane slot and recognized by the system’s engineering software without requiring additional configuration. Customers upgrading from CS 3000 to CENTUM VP can retain existing ADV159-P01 modules, reducing hardware replacement costs during migration projects.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
TOPNLMS maintains dedicated inventory of Yokogawa CENTUM VP and CS 3000 spare parts, including the ADV159-P01, to support customers with multi-year maintenance contracts and planned outage schedules. For customers requiring guaranteed stock reservation, framework supply agreements are available. Contact [email protected] or call +86 18359293191 to discuss volume pricing, lead times, and reserved inventory arrangements.
