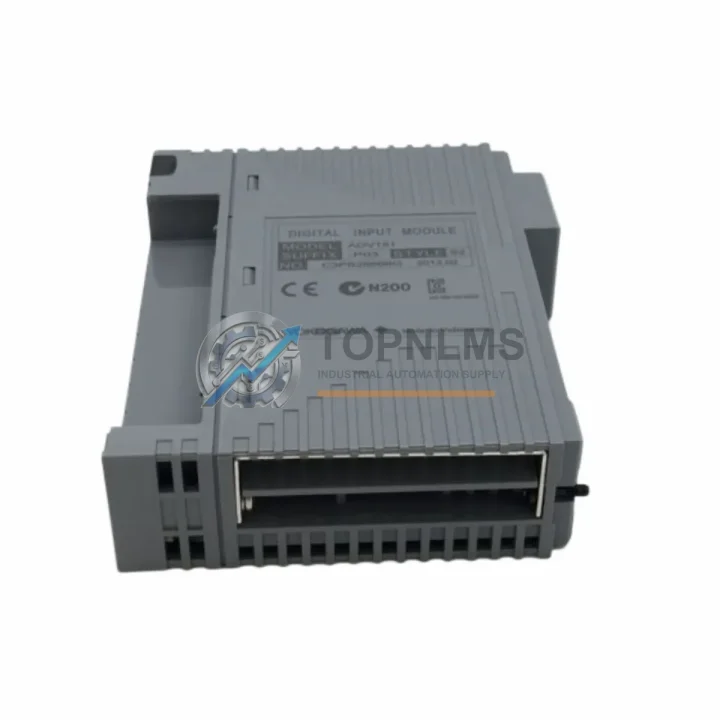

YOKOGAWA ADV151-P03 S2 Ruggedized Digital Input Module

Product Overview

YOKOGAWA ADV151-P03 S2 Ruggedized Digital Input Module: Industrial Resilience for Harsh Environments

The YOKOGAWA ADV151-P03 S2 is a 32-channel digital input module engineered for the CENTUM VP Distributed Control System (DCS) — one of the most trusted process automation platforms in the world. Designed to operate continuously in demanding industrial environments, this module delivers unwavering signal integrity and system reliability across oil & gas facilities, chemical plants, power generation stations, water treatment infrastructure, and heavy metallurgical operations. Whether deployed in a high-temperature furnace control loop, a moisture-laden offshore platform, or a vibration-intensive mining conveyor system, the ADV151-P03 S2 maintains deterministic input scanning and fault-tolerant communication with the CENTUM VP controller bus.

Built to YOKOGAWA’s stringent quality standards, this module integrates seamlessly into the CENTUM VP I/O subsystem, accepting field-level discrete signals from limit switches, proximity sensors, push-button stations, and safety interlock devices. Its robust hardware design incorporates optical isolation on all 32 input channels, providing superior protection against ground loops, transient voltage spikes, and electromagnetic interference (EMI) — a critical requirement in environments where variable frequency drives (VFDs), large motor starters, and high-current bus bars generate significant electrical noise.

Rugged Specifications Table

Comprehensive Protection Solutions

The ADV151-P03 S2 does not operate in isolation — it is a critical node within a broader CENTUM VP control architecture. In a typical process plant control cabinet, this digital input module works in concert with the YOKOGAWA ADV151-P00 (16-channel digital input variant) and the ADV551-P00 digital output module to form a complete discrete I/O tier. Analog process variables — such as pressure, temperature, and flow — are handled by companion modules including the AAI141-S00 analog input module and the AAI841-S00 analog output module, all sharing the same CENTUM VP I/O bus backplane.

For safety-instrumented system (SIS) applications, the ADV151-P03 S2 is often deployed alongside the YOKOGAWA ProSafe-RS safety controller and its associated SSI143-S00 safety digital input modules, ensuring that the standard DCS layer and the safety layer maintain independent, redundant signal paths. Power integrity across the control cabinet is maintained by the YOKOGAWA PW481 dual-redundant power supply module, which provides clean, regulated DC power to the I/O bus even during utility fluctuations or generator switchover events.

Communication between the CENTUM VP field control station (FCS) and the human-machine interface (HMI) layer relies on the ACF11 V-net/IP communication module, which supports high-speed Ethernet-based control bus communication with deterministic latency. In installations requiring HART pass-through for intelligent field devices, the AAI143-S HART-enabled analog input module complements the ADV151-P03 S2 by providing simultaneous digital and analog signal acquisition. Terminal modules such as the TB820V I/O terminal board provide the physical wiring interface between field cables and the module backplane, simplifying installation and enabling hot-swap maintenance without disrupting live process signals.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the ADV151-P03 S2 monitors discrete status signals from wellhead safety valves, emergency shutdown (ESD) push-buttons, high-level switches in separator vessels, and fire-and-gas detector relay outputs. Its optical isolation ensures that ground potential differences between remote field junction boxes and the central control room do not corrupt input readings or damage the DCS backplane — a failure mode that has caused costly unplanned shutdowns in legacy installations using non-isolated I/O.

In coal-fired and gas-fired power generation plants, this module acquires status signals from turbine protection relays, boiler drum level switches, and generator breaker auxiliary contacts. The deterministic 32-channel scan cycle ensures that protection logic in the CENTUM VP FCS receives timely, accurate discrete inputs, supporting fast trip response times required by grid codes and plant safety standards.

In water and wastewater treatment facilities, the ADV151-P03 S2 monitors pump run/fault status, valve open/closed feedback, and UV disinfection system alarms across multiple treatment stages. Its wide operating temperature range and humidity tolerance make it suitable for both indoor pump stations and partially climate-controlled outdoor enclosures in tropical or sub-arctic regions.

In metallurgical and steel manufacturing plants, where electromagnetic interference from arc furnaces and induction heaters is extreme, the module’s per-channel optical isolation and IEC 61000-compliant EMI hardening provide the signal fidelity needed to maintain continuous casting line control without nuisance trips or false alarms. Replacement of a failed I/O module on a continuous casting line can be accomplished in minutes using CENTUM VP’s hot-standby redundancy and online module replacement capability, minimizing production loss.

In mining and mineral processing operations, the module withstands the mechanical vibration generated by crushers, ball mills, and conveyor drive systems. Its robust backplane connector and conformal-coated PCB (where applicable) resist the fine conductive dust particles that penetrate conventional enclosures and cause insulation breakdown in non-ruggedized electronics.
