YOKOGAWA ADV151-P00 Replacement for CENTUM VP DCS

Product Overview

YOKOGAWA ADV151-P00 Replacement for CENTUM VP DCS: Smooth Migration & Seamless Compatibility

When your CENTUM VP distributed control system requires a digital input module replacement or upgrade, the YOKOGAWA ADV151-P00 delivers a proven, drop-in solution that minimizes engineering effort and plant downtime. Whether you are retiring an aging ADV151-P00 unit, recovering from an unexpected failure, or executing a planned lifecycle migration from an earlier CENTUM CS 3000 or CENTUM VP R4 architecture, this module is engineered to restore full DI channel functionality without requiring changes to your existing field wiring, I/O assignment tables, or control logic.

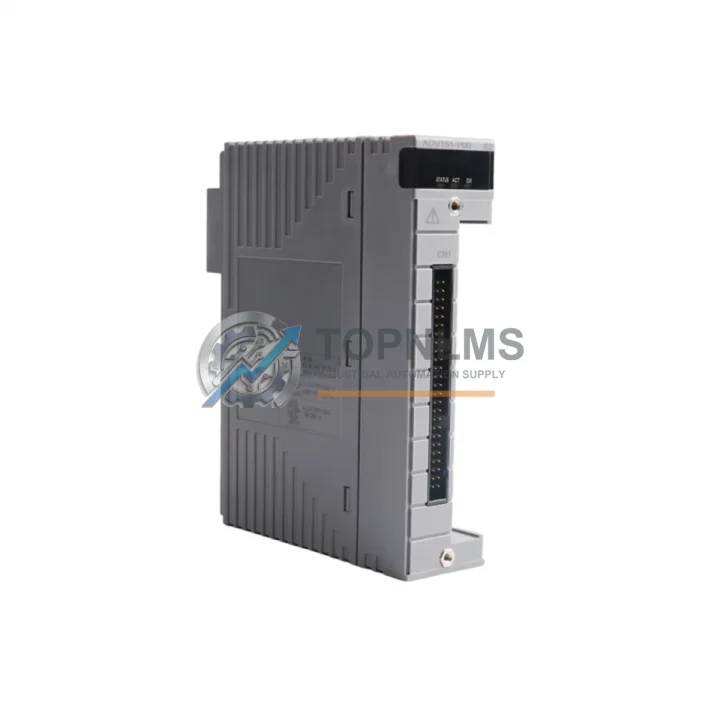

The ADV151-P00 is a 32-channel digital input module designed for use within the YOKOGAWA CENTUM VP field control station (FCS) environment. It mounts directly into the standard node unit (NU) or remote node unit (RNU) baseplate, accepting the same Vnet/IP communication infrastructure already present in your control network. Field terminals connect via the existing terminal board assemblies — typically the ATD series terminal boards — meaning no rewiring of field cables is required during a like-for-like swap. The module draws power from the FCS power supply unit (PSU), and its current draw profile is compatible with standard CENTUM VP power budgets, eliminating the need for power system recalculation in most retrofit scenarios.

For sites migrating from CENTUM CS 3000 DI modules such as the ADV151-E or ADV151-S, the ADV151-P00 provides a functionally equivalent channel count and signal conditioning range. Engineering teams can retain their existing CENTUM VP builder project files, updating only the module type designation within the I/O module definition. The Vnet/IP communication protocol ensures that the replacement module is automatically recognized by the FCS upon power-up, and channel status is immediately reflected in the human interface station (HIS) without requiring a full system restart. This is particularly valuable in continuous process industries — refining, petrochemical, power generation, and pulp and paper — where unplanned shutdowns carry significant production cost.

When planning a broader control system modernization, the ADV151-P00 is frequently deployed alongside complementary CENTUM VP I/O modules. Digital output modules such as the ADV551-P00 are commonly replaced in the same maintenance window, allowing engineering teams to consolidate field work and reduce total scaffold or access time. Analog input modules including the AAI141-S and AAI143-S are often upgraded in parallel when a node unit is being partially or fully refreshed. For sites that also require communication module replacement, the ACM12E Vnet/IP communication module and the ALR111 remote I/O communication module are standard components within the same FCS architecture and may be sourced simultaneously to reduce logistics complexity.

In retrofit projects where the existing CENTUM VP system is being extended rather than replaced, the ADV151-P00 can be added to available slots within an existing node unit baseplate, expanding the total DI channel capacity without requiring a new FCS cabinet. This approach is common in plant expansion projects where new field instruments — pressure switches, level switches, motor run feedbacks, or valve position indicators — must be integrated into the existing control system without a full DCS upgrade. The module’s compatibility with the standard CENTUM VP engineering environment means that new I/O tags can be defined and downloaded to the FCS using the existing system builder tools, with no additional software licensing required.

For sites operating YOKOGAWA ProSafe-RS safety instrumented systems in parallel with CENTUM VP process control, the ADV151-P00 supports integration scenarios where DI signals from the SIS are monitored within the CENTUM VP HIS via the Vnet/IP gateway. This architecture is common in facilities that have implemented a unified operations management layer across both process control and safety systems, and the ADV151-P00’s standard Vnet/IP interface ensures compatibility with this topology without additional hardware adaptation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ADV151-P00 migration rarely involves a single module in isolation. In practice, field engineers coordinate the replacement of the ADV151-P00 with adjacent components to maximize the value of each planned maintenance window. The ADV551-P00 digital output module is the most common companion replacement, sharing the same node unit slot form factor and Vnet/IP interface. Analog signal integrity is maintained by verifying or replacing AAI141-S and AAI143-S analog input modules in the same FCS node, particularly where thermocouple or 4–20 mA transmitter inputs feed into the same control loops as the DI signals being restored. Where communication redundancy is a concern, the ACM12E Vnet/IP communication module and the ALR111 remote I/O communication module should be inspected and replaced if they show elevated error counts in the FCS diagnostic log. For sites that require physical signal isolation between field devices and the DCS I/O bus — common in high-noise industrial environments such as steel mills or chemical plants — DIN-rail-mounted signal isolators and terminal multipliers can be installed between the field cable termination and the ATD terminal board without affecting the ADV151-P00’s channel configuration. Finally, where the migration scope includes HMI refresh, YOKOGAWA’s FAST/TOOLS or Exaquantum historian integration points should be validated against the updated I/O tag list to ensure data continuity across the upgrade boundary.

Retrofit Guidance FAQ

Q: Do I need to re-terminate field wiring when replacing an ADV151-P00?
A: No. The ADV151-P00 uses the same ATD series terminal board interface as its predecessors. Field cables remain connected to the terminal board; only the I/O module itself is swapped.

Q: Will my existing CENTUM VP control logic require modification?
A: In a like-for-like replacement, no logic changes are required. The FCS recognizes the new module automatically via Vnet/IP. If migrating from CS 3000, I/O tag reassignment in the CENTUM VP System Builder is required, but field wiring and control strategy remain unchanged.

Q: Is the ADV151-P00 compatible with both redundant and non-redundant FCS configurations?
A: Yes. The module operates in both single and dual FCS configurations. Redundancy switchover behavior is governed by the FCS pair configuration, not the individual I/O module.

Q: How much physical space does the module require in the node unit?
A: The ADV151-P00 occupies one standard I/O slot in the CENTUM VP node unit baseplate. No additional space or bracket modification is required.

Q: What communication protocol does the ADV151-P00 use?
A: Vnet/IP — YOKOGAWA’s proprietary deterministic Ethernet-based control network used throughout the CENTUM VP platform. It is not compatible with legacy V-net (CS 3000) without a gateway or system migration.

Q: Can the module be hot-swapped during plant operation?
A: CENTUM VP supports online module replacement in certain FCS configurations. Consult your site’s FCS engineering documentation and YOKOGAWA’s online replacement procedure before performing a live swap.

Warranty Assurance

Every ADV151-P00 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including power-on self-test, channel continuity check, and communication interface validation. Units that do not pass inspection are not shipped. In the event of a confirmed module defect within the warranty period, TOPNLMS provides a replacement unit or full refund — your choice — with priority processing to minimize your system downtime. Our technical team is available to support pre-shipment compatibility verification, installation guidance, and post-installation commissioning questions. Stock is maintained in Xiamen, China, with DHL Express and FedEx International Priority shipping options available for urgent requirements. Typical dispatch lead time for in-stock units is 1–3 business days.
