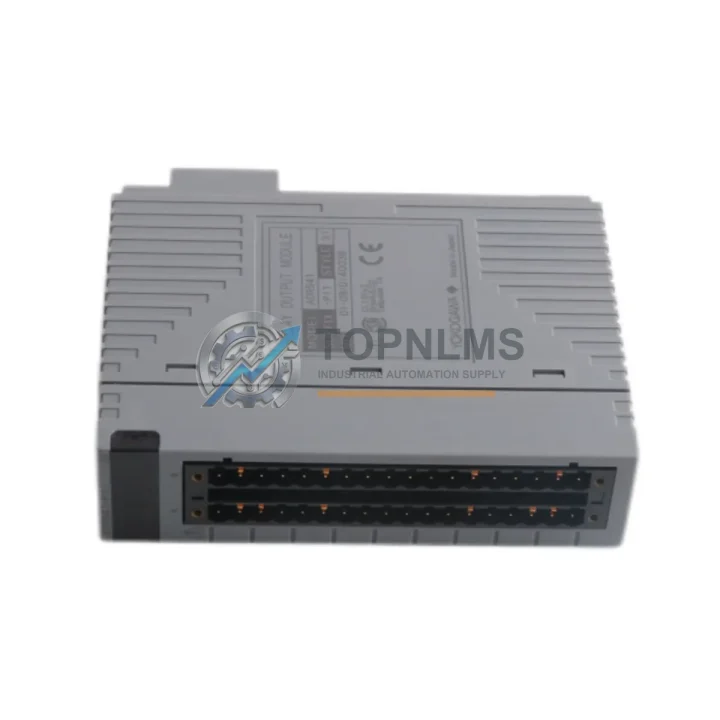

YOKOGAWA ADR541-P11 S1 Ruggedized Relay Output Module

Product Overview

YOKOGAWA ADR541-P11 S1 Ruggedized Relay Output Module: Industrial Resilience for Harsh Environments

The YOKOGAWA ADR541-P11 S1 is a 16-channel relay digital output module engineered for the STARDOM FCN/FCJ controller platform — one of YOKOGAWA’s most trusted distributed control architectures for process-critical applications. Designed to operate reliably under extreme industrial conditions including high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the signal integrity and switching reliability that mission-critical control systems demand.

In continuous production environments — from petrochemical refineries and offshore platforms to mineral processing plants and municipal water treatment facilities — output modules are the last line of digital command between the controller and field actuators. The ADR541-P11 S1 meets this responsibility with relay contact outputs rated for both AC and DC loads, providing galvanic isolation that protects the STARDOM FCN/FCJ CPU and backplane from inductive kickback, ground loops, and transient surges common in heavy industrial wiring environments.

The module slots directly into the STARDOM FCN/FCJ I/O unit without tools, maintaining the platform’s modular, hot-swap-capable architecture. Its relay contacts are rated for industrial-grade switching duty cycles, making it suitable for driving solenoid valves, motor starters, alarm annunciators, and safety interlock circuits. When paired with the ADV151-P00 S1 analog input module and the ADV551-P00 S1 analog output module within the same FCN I/O chassis, the ADR541-P11 S1 completes a fully integrated mixed-signal I/O subsystem capable of handling both process measurement and discrete control in a single rack.

For installations requiring deterministic communication with supervisory systems, the STARDOM FCN controller running the ADR541-P11 S1 supports FOUNDATION Fieldbus, PROFIBUS-DP, and Modbus TCP/IP — ensuring seamless integration with YOKOGAWA CENTUM VP DCS networks, third-party SCADA platforms, and plant historian systems. The FCN-RTU remote terminal unit variant of the platform further extends the module’s applicability to geographically distributed pipeline monitoring and substation automation, where communication reliability over long distances is non-negotiable.

In high-vibration environments such as compressor stations, rolling mills, and mining conveyors, the ADR541-P11 S1’s robust PCB construction and conformal-coated circuitry resist mechanical fatigue and corrosion. When installed alongside the ADR141-P11 S1 digital input module and the AIP588-S00 S1 power supply module, the complete I/O assembly maintains stable operation across the full industrial temperature range, eliminating nuisance trips caused by thermal expansion or condensation ingress.

Procurement teams sourcing replacement or expansion modules for existing STARDOM FCN/FCJ installations will find the ADR541-P11 S1 a direct, firmware-compatible substitute. Unlike generic relay output cards, this genuine YOKOGAWA module preserves the diagnostic transparency of the FCN platform — fault status, contact wear indication, and channel-level diagnostics remain fully accessible through the STARDOM Resource Configurator software. This is particularly valuable in safety-instrumented systems where proof-test intervals and diagnostic coverage must be documented for IEC 61511 compliance.

For control cabinet integrators building new panels around the STARDOM FCN architecture, the ADR541-P11 S1 pairs naturally with YOKOGAWA F3YP28-0P relay output modules from the FA-M3 range for cross-platform standardization, and with YOKOGAWA DAQSTATION DX2000 data recorders for independent loop verification. Terminal block wiring follows YOKOGAWA’s standard 40-pin MIL connector scheme, simplifying field installation and reducing commissioning time in time-sensitive turnaround projects.

Rugged Specifications Table

Comprehensive Protection Solutions

A reliable STARDOM FCN/FCJ control system is only as strong as its weakest I/O link. The ADR541-P11 S1 relay output module is most effective when deployed as part of a complete, coordinated protection and control architecture. Within the same FCN I/O chassis, the ADR141-P11 S1 16-channel digital input module handles field contact status feedback — limit switches, pressure switches, and interlock confirmations — while the ADV151-P00 S1 analog input module acquires 4–20 mA process signals from transmitters monitoring temperature, flow, and level. On the output side, the ADV551-P00 S1 analog output module drives control valves and variable-speed drives with precision 4–20 mA commands, complementing the ADR541-P11 S1’s discrete switching capability.

Power integrity is maintained by the AIP588-S00 S1 redundant power supply module, which provides clean, regulated DC power to the I/O backplane and protects against mains fluctuations common in heavy industrial facilities. For installations requiring functional safety up to SIL 2, the STARDOM FCN platform supports integration with YOKOGAWA ProSafe-RS safety controllers, where the ADR541-P11 S1 can serve as a standard output module in the non-safety layer while dedicated safety output modules handle SIL-rated shutdown commands. Communication between the FCN controller and plant DCS is managed through the FCN CPU’s built-in Ethernet port, supporting OPC-UA and Modbus TCP/IP for transparent data exchange with YOKOGAWA CENTUM VP or third-party historian platforms. Surge protection terminal blocks and EMC-rated cable glands at the cabinet entry points further shield the ADR541-P11 S1 and its companion modules from conducted transients originating in the field wiring.

Application in Critical Infrastructure

The YOKOGAWA ADR541-P11 S1 has established a strong operational record across the most demanding sectors of critical infrastructure. In oil and gas processing, it controls emergency shutdown valves, flare ignition systems, and compressor anti-surge bypass valves — applications where relay contact reliability directly affects process safety and regulatory compliance. Offshore platform installations benefit from the module’s resistance to salt-laden humid air and the mechanical shock loads transmitted through the vessel structure.

In power generation and transmission, the ADR541-P11 S1 drives circuit breaker trip coils, transformer tap-changer controls, and alarm annunciator panels within substation automation systems. Its galvanic isolation prevents ground potential differences between the control room and switchyard from corrupting the FCN backplane. Water and wastewater treatment facilities deploy the module to sequence pump starts, control chemical dosing solenoids, and manage UV disinfection system interlocks — all in environments characterized by high humidity, chemical vapors, and continuous 24/7 operation.

Metallurgical and mining operations rely on the ADR541-P11 S1 for conveyor belt control, crusher interlock management, and furnace burner management systems, where vibration levels and airborne conductive dust present constant challenges to electronic reliability. In chemical and pharmaceutical manufacturing, the module’s clean-contact relay outputs satisfy the galvanic isolation requirements of batch reactor control and clean-in-place (CIP) sequencing, where cross-contamination of control signals could compromise product quality and safety certification.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating and storage conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Return shipping instructions are provided within one business day.

Q2: How is each ADR541-P11 S1 unit tested before shipment?
Every unit undergoes pre-shipment functional verification including relay contact continuity testing on all 16 channels, backplane connector integrity inspection, and visual examination for physical damage or counterfeit indicators. Units sourced from authorized distribution channels are cross-referenced against YOKOGAWA serial number records where available. Test results are retained and can be provided upon request for quality audit purposes.

Q3: Is the ADR541-P11 S1 compatible with all STARDOM FCN and FCJ hardware revisions?
The ADR541-P11 S1 is designed for the STARDOM FCN/FCJ I/O unit platform and is compatible with standard FCN and FCJ I/O chassis across production revisions. Firmware compatibility is managed at the FCN CPU level through the STARDOM Resource Configurator. For installations running older FCN firmware versions, TOPNLMS recommends confirming the module revision against the site’s existing I/O unit hardware revision before ordering. Our technical team can assist with compatibility verification at no charge.

Q4: Can TOPNLMS support long-term or repeat supply of the ADR541-P11 S1 for maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand YOKOGAWA STARDOM modules to support planned maintenance shutdowns, emergency sparing programs, and capital project builds. Blanket purchase orders and scheduled delivery arrangements are available for facilities requiring guaranteed stock availability. Contact [email protected] or call +86 18359293191 to discuss a supply agreement tailored to your maintenance cycle.
