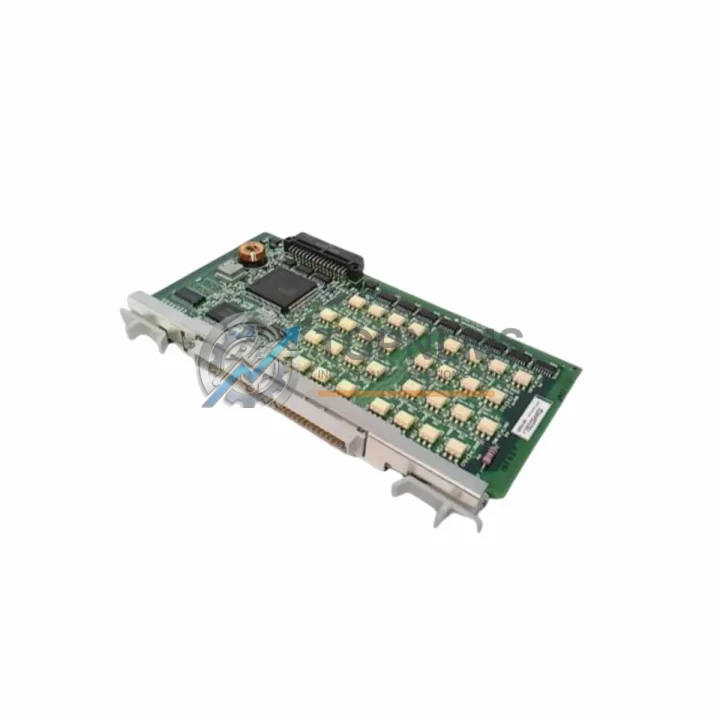

YOKOGAWA ADM52 S2 Ruggedized Analog Output Module

Product Overview

YOKOGAWA ADM52 S2 Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

The YOKOGAWA ADM52 S2 is a high-reliability analog output module engineered for continuous operation within the YOKOGAWA CENTUM DCS platform. Designed to deliver stable 4–20 mA analog signal outputs under demanding industrial conditions, the ADM52 S2 maintains precision and integrity even in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI). For process engineers and plant maintenance teams operating in oil and gas, power generation, chemical processing, or heavy manufacturing, this module represents a proven solution for sustaining loop control accuracy without compromise.

Built to YOKOGAWA’s stringent quality standards, the ADM52 S2 integrates seamlessly into CENTUM CS 3000 and CENTUM VP distributed control system architectures. Its robust signal conditioning circuitry ensures that analog output channels remain stable across wide temperature ranges, making it equally suited for climate-controlled control rooms and field-mounted enclosures exposed to industrial heat loads. The module’s internal isolation design provides effective protection against ground loops and common-mode noise — a critical requirement in facilities where variable frequency drives, large motor starters, and high-current switching equipment operate in close proximity to the control infrastructure.

Rugged Specifications Table

Comprehensive Protection Solutions

Maintaining analog output integrity in a CENTUM DCS installation requires more than a single module — it demands a coordinated ecosystem of compatible, ruggedized components. The ADM52 S2 is most commonly deployed alongside the YOKOGAWA AAM21 analog input module, which handles 4–20 mA field sensor signals feeding into the same field control station. Together, these two modules form the core I/O layer of a CENTUM process loop, with the AAM21 acquiring process variables and the ADM52 S2 driving final control elements such as control valves and positioners.

In installations where signal integrity is paramount — particularly in facilities with long cable runs or high-noise environments — the ADM52 S2 is frequently paired with YOKOGAWA AMM12 multi-point analog I/O modules and dedicated signal isolators to prevent ground-loop interference from propagating into the control bus. For power distribution within the field control station, the YOKOGAWA PW481 power supply module provides the stable DC bus voltage that the ADM52 S2 and its neighboring I/O modules depend on for consistent output accuracy.

Communication between the field control station and the CENTUM operator station relies on the Vnet/IP network infrastructure, typically managed through YOKOGAWA ACM12 communication modules. These modules ensure that setpoint commands from the operator interface are transmitted to the ADM52 S2 with minimal latency, even under heavy network load conditions common in large-scale process plants. In safety-instrumented system (SIS) architectures, the ADM52 S2 analog output layer is often complemented by YOKOGAWA ProSafe-RS safety I/O modules, which provide independent shutdown signal paths without interfering with the primary control loop.

For facilities managing legacy CENTUM CS 3000 installations, the ADM52 S2 also serves as a direct functional replacement for older ADM51 series modules, allowing maintenance teams to standardize their spare parts inventory without requiring software reconfiguration. Terminal assemblies such as the YOKOGAWA TB820 field terminal block provide the physical wiring interface between the ADM52 S2 and field instrumentation, supporting both screw-type and spring-clamp terminations to accommodate different site wiring standards.

Application in Critical Infrastructure

The YOKOGAWA ADM52 S2 has established a strong operational track record across some of the most demanding sectors of critical industrial infrastructure. In oil and gas processing facilities, the module controls analog output signals to pneumatic valve positioners and electro-hydraulic actuators in continuous process streams where any output signal deviation can trigger costly process upsets or safety shutdowns. Its channel isolation architecture is particularly valued in offshore platform environments, where salt-laden air and condensation create persistent corrosion risks for unprotected electronics.

In thermal and combined-cycle power plants, the ADM52 S2 manages analog setpoints for boiler feedwater control valves, turbine bypass valves, and combustion air dampers — applications where output signal stability directly affects plant efficiency and emissions compliance. The module’s tolerance for elevated ambient temperatures makes it suitable for installation in turbine hall control panels, where heat dissipation from adjacent power electronics can raise enclosure temperatures well above standard office-environment ratings.

Within water and wastewater treatment plants, the ADM52 S2 drives dosing pump speed references and valve position commands in chemical feed systems, where precise analog output control is essential for maintaining effluent quality within regulatory limits. Its resistance to humidity and condensation is a key selection criterion for outdoor pump station control panels in tropical and subtropical climates.

In metallurgical and mining operations, the module withstands the high-vibration, high-dust environments typical of ore processing and smelting facilities, where mechanical shock from heavy equipment and airborne conductive particulates represent constant threats to sensitive electronics. The ADM52 S2’s sealed module housing and robust PCB conformal coating provide the necessary protection for reliable long-term operation in these conditions.

Security & Quality FAQ

Q1: What warranty coverage is provided with the YOKOGAWA ADM52 S2?
Every ADM52 S2 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers functional defects identified under normal operating conditions consistent with YOKOGAWA’s published specifications. In the event of a confirmed defect, TOPNLMS provides replacement support with priority processing to minimize your plant’s exposure to unplanned downtime.

Q2: How is each unit tested before shipment?
All ADM52 S2 modules undergo a pre-shipment functional verification process that includes visual inspection for physical damage, connector integrity checks, and power-on functional testing where applicable. Units are packaged in anti-static protective materials and shipped in reinforced cartons to prevent transit damage. A test report is available upon request for customers with quality documentation requirements.

Q3: Is the ADM52 S2 compatible with both CENTUM CS 3000 and CENTUM VP systems?
Yes. The ADM52 S2 is designed for use within the YOKOGAWA CENTUM platform and is compatible with both CENTUM CS 3000 and CENTUM VP field control station configurations. It is also a recognized functional replacement for ADM51 series modules in legacy installations, allowing direct slot substitution without requiring changes to the CENTUM system database in most configurations. Customers are advised to verify their specific FCS hardware revision with YOKOGAWA documentation before installation.

Q4: What is the typical lead time and shipping arrangement?
In-stock units are dispatched from our Xiamen, China warehouse within 1–3 business days of order confirmation. International shipments are handled via DHL, FedEx, or UPS Express, with typical transit times of 3–7 business days to most destinations. For urgent plant maintenance requirements, expedited shipping options are available. Contact our technical sales team at [email protected] or call +86 18359293191 to confirm current stock availability and lead time.
