Yokogawa ADM12 S2 Original Industrial Spare CENTUM Compatible

Product Overview

Yokogawa ADM12 S2 Original Industrial Spare — System Stability for CENTUM VP & CS 3000

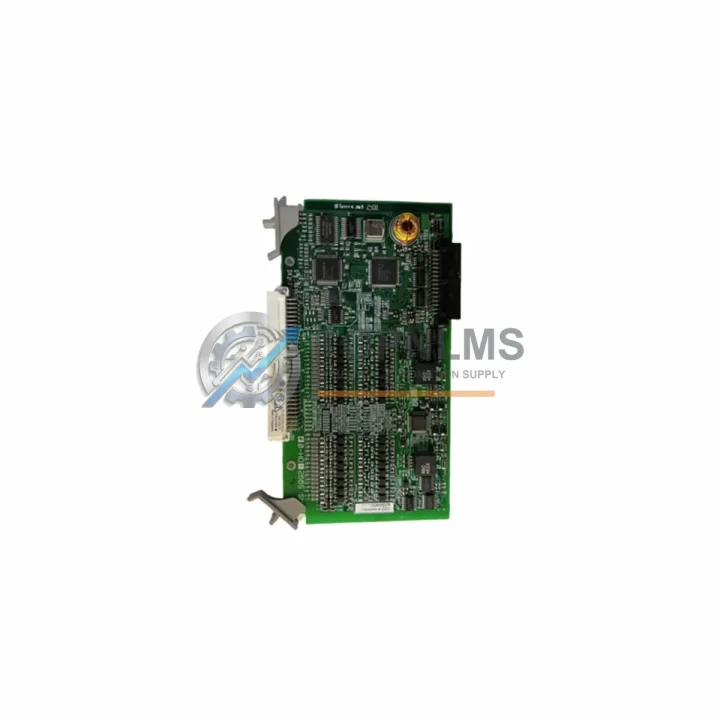

The Yokogawa ADM12 S2 is an original analog current output I/O module engineered for deployment within Yokogawa CENTUM VP and CENTUM CS 3000 distributed control systems. In process industries where continuous uptime is non-negotiable — refining, petrochemical, power generation, pulp and paper, and pharmaceutical manufacturing — the ADM12 S2 serves as a critical interface between the DCS controller and field actuators, transmitting 4–20 mA analog signals to control valves, variable frequency drives, and positioners with high-resolution accuracy.

Sourcing an original ADM12 S2 spare unit is a foundational step in any responsible maintenance strategy. Counterfeit or non-original substitutes introduce signal drift, firmware incompatibility, and diagnostic blind spots that can compromise entire control loops. TOPNLMS supplies only original, factory-sourced ADM12 S2 modules, each inspected and function-tested prior to dispatch, backed by a 12-month warranty covering manufacturing defects and operational failure under normal service conditions.

Critical Technical Specs

Preventive Maintenance Strategy

When a plant maintenance team schedules a shutdown inspection or responds to a DCS alarm indicating analog output deviation, the ADM12 S2 is rarely the only module that warrants attention. A disciplined preventive maintenance approach treats the I/O nest, the field wiring termination, and the upstream controller as an integrated system — and replacement planning should reflect that reality.

During a CENTUM VP cabinet inspection, technicians should simultaneously verify the condition of the AAM11 analog input module, which handles the 4–20 mA feedback signals from field transmitters. If the ADM12 S2 output loop is degraded, the corresponding AAM11 input channel reading the process variable may also show drift or noise — both modules should be tested together. Similarly, the ACM12 communication module governing the I/O bus between the field control station (FCS) and the I/O nest should be checked for firmware version alignment and bus error counts.

Power integrity is another critical dimension. The PW482 or PW484 power supply module feeding the I/O nest must deliver stable 24 VDC within tolerance; a marginal power supply can cause intermittent analog output errors that are misdiagnosed as module failure. Inspecting and, where necessary, replacing the power supply module during the same maintenance window eliminates a common root cause of recurring ADM12 S2 faults.

Field wiring termination should not be overlooked. The TB series terminal boards (e.g., TB820, TB830) connected to the ADM12 S2 via marshalling cables are subject to corrosion, loose terminations, and insulation degradation in humid or chemically aggressive environments. Replacing aged terminal boards and their associated KS cable assemblies during a planned outage prevents nuisance trips and signal integrity issues that would otherwise be attributed to the I/O module itself.

For plants running legacy CENTUM CS 3000 systems, the CP451 or CP461 field control station processor should be assessed for memory battery status and firmware currency. An outdated FCS processor interacting with a newly replaced ADM12 S2 can produce configuration mismatch alarms if the I/O module revision is not recognized by the older firmware. Maintaining a spare CF card or compact flash memory module with the current FCS configuration image is a low-cost insurance policy against extended recovery times.

Rounding out a comprehensive cabinet audit: inspect RIO (Remote I/O) bus cables and connectors for continuity and shielding integrity, verify that ESB bus termination resistors are correctly installed at both ends of the I/O bus, and confirm that any installed signal conditioners or isolators in the marshalling panel are within calibration. Proactive replacement of these ancillary components alongside the ADM12 S2 maximizes the value of each planned maintenance window and reduces the probability of unplanned outages between scheduled shutdowns.

Strategic Replacement Solutions

The ADM12 S2 has been in service across CENTUM CS 3000 and CENTUM VP installations for over two decades. Many plants operating these systems are in a system life-extension phase — the DCS platform is stable, well-understood by the operations team, and not scheduled for replacement. In this context, securing a reliable supply of original spare modules is a strategic priority, not merely a procurement task.

TOPNLMS maintains stock of the ADM12 S2 to support exactly this scenario. Unlike spot-market brokers who source modules opportunistically, our inventory is curated for traceability and authenticity. Each unit undergoes incoming inspection, functional testing on a CENTUM-compatible test bench, and documentation review before being offered for sale. This process ensures that the module you receive will initialize correctly in your FCS, pass the CENTUM self-diagnostic routine, and perform within the original Yokogawa accuracy specification from day one.

For plants managing a phased migration from CENTUM CS 3000 to CENTUM VP, the ADM12 S2 is fully compatible with both platforms, making it an ideal bridge component. It can be installed in a CS 3000 nest today and redeployed in a VP nest during a future migration without hardware modification — a significant advantage when capital budgets are constrained and migration timelines are extended.

Replacement lead times for original Yokogawa I/O modules through standard distribution channels can extend to 8–16 weeks for less common variants. Holding a minimum of one or two ADM12 S2 units in your on-site spare parts inventory eliminates this exposure entirely. TOPNLMS can support blanket order arrangements for customers managing multi-site DCS fleets, providing consistent pricing and priority allocation across planned maintenance cycles.

Support FAQ

Q1: Is the ADM12 S2 compatible with both CENTUM CS 3000 and CENTUM VP systems?
Yes. The ADM12 S2 is designed for use in both CENTUM CS 3000 (R3.x) and CENTUM VP (R4.x through R6.x) I/O nests. It uses the standard CENTUM I/O bus interface and is recognized by both FCS firmware generations. No hardware modification is required when migrating between platforms.

Q2: What testing is performed before shipment?
Every ADM12 S2 unit supplied by TOPNLMS undergoes functional testing prior to dispatch. Testing includes power-on initialization verification, channel output accuracy check across the 4–20 mA range, and bus communication handshake confirmation. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The warranty covers manufacturing defects and operational failure under normal service conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the customer.

Q4: How should I verify compatibility before installation?
Confirm your FCS firmware version via the CENTUM engineering workstation (EWS) and cross-reference with the Yokogawa ADM12 compatibility matrix in the hardware manual (IM 33S01B30-01E). Ensure the I/O nest slot assignment in the FCS builder matches the physical slot position. If you require assistance with compatibility verification, contact our technical team before installation.
