YOKOGAWA AAR145-S50 S1 Ruggedized RTD Input Module

Product Overview

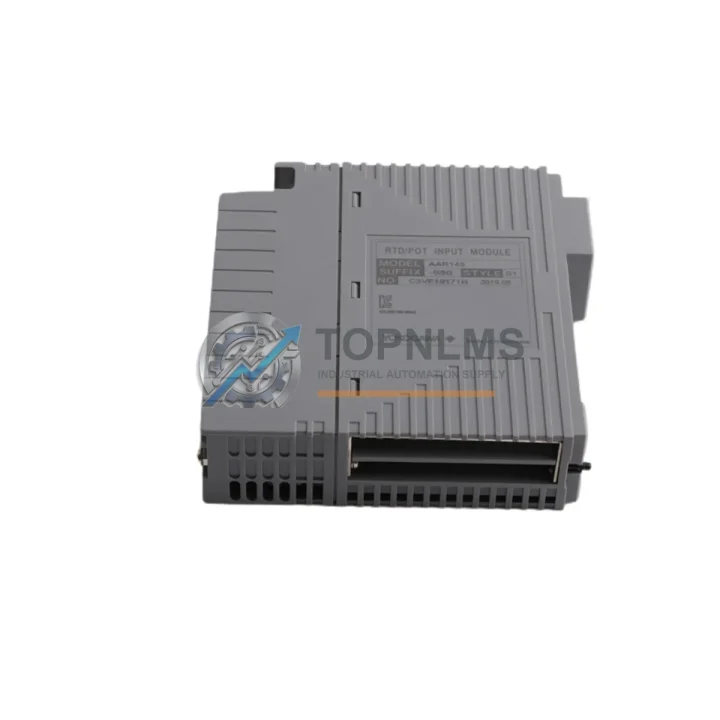

YOKOGAWA AAR145-S50 S1 Ruggedized RTD/Potentiometer Input Module for Harsh Industrial Environments

The YOKOGAWA AAR145-S50 S1 is a high-precision, ruggedized RTD (Resistance Temperature Detector) and potentiometer input module engineered for deployment within the CENTUM VP Distributed Control System (DCS) platform. Designed to operate reliably under the most demanding industrial conditions — including extreme temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — this module delivers the signal integrity and system stability that mission-critical process industries demand.

In continuous production environments such as oil refineries, chemical plants, LNG terminals, and power generation facilities, temperature measurement accuracy is not a convenience — it is a safety imperative. The AAR145-S50 S1 accepts multi-channel RTD inputs with high resolution and low drift, ensuring that process variables are faithfully transmitted to the CENTUM VP controller even when the field environment is hostile. Its robust hardware design, combined with YOKOGAWA’s proven DCS architecture, makes it a preferred choice for engineers specifying reliable instrumentation for hazardous and non-hazardous areas alike.

Rugged Specifications Table

Comprehensive Protection Solutions

The AAR145-S50 S1 does not operate in isolation — it is an integral node within a layered, redundant control architecture. In a typical CENTUM VP field control station, this RTD input module works in concert with analog output modules such as the AAV141-S00 and AAV142-S00, which drive final control elements including control valves and variable-speed drives. Alongside it, digital input modules like the ADV151-P50 capture discrete field signals from limit switches, pressure switches, and safety interlocks, while digital output modules such as the ADV551-P50 execute on/off commands to solenoid valves and motor starters.

For process plants requiring functional safety compliance, the AAR145-S50 S1 is commonly deployed alongside YOKOGAWA’s ProSafe-RS Safety Instrumented System (SIS) modules, which handle SIL-rated safety loops independently of the basic process control layer. The integration of the CENTUM VP DCS with ProSafe-RS via the SCS Gateway Unit (SGW) allows operators to monitor safety loop status from the same HMI environment, reducing operator workload and response time during abnormal situations.

Power integrity is equally critical in harsh environments. The AAR145-S50 S1 field control station is typically powered by redundant YOKOGAWA PW481 or PW482 power supply modules, which provide stable 24 VDC bus voltage even during mains fluctuations or momentary outages. Communication between field control stations and the operator station is maintained through the Vnet/IP Ethernet-based control network, supported by managed industrial switches rated for extended temperature operation.

In control cabinet assemblies, the AAR145-S50 S1 is mounted on standard CENTUM VP node units alongside ESB bus coupler modules and RIO (Remote I/O) interface modules, enabling distributed I/O expansion across large plant footprints without signal degradation. Terminal assemblies and marshalling panels using YOKOGAWA TB series terminal blocks provide the field wiring interface, ensuring clean, labeled, and maintainable connections even in high-density cabinet layouts.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities — including wellhead control panels, gas compression stations, and pipeline SCADA nodes — the AAR145-S50 S1 provides continuous temperature monitoring of process streams, rotating equipment bearings, and heat exchanger surfaces. Its resistance to hydrocarbon-laden atmospheres and its compatibility with intrinsically safe field wiring practices make it suitable for Zone 2 classified areas when installed within appropriately rated enclosures.

In coal-fired and gas-fired power generation plants, the module monitors boiler tube metal temperatures, turbine bearing temperatures, and flue gas temperatures across hundreds of measurement points. The high channel density and low per-channel cost of the CENTUM VP I/O architecture — of which the AAR145-S50 S1 is a core component — allows plant engineers to achieve comprehensive thermal coverage without excessive hardware expenditure.

In metallurgical and steel production facilities, where ambient temperatures near furnaces can exceed 50°C and electromagnetic noise from large induction heating systems is pervasive, the shielded signal conditioning within the AAR145-S50 S1 maintains measurement accuracy that would be unattainable with lower-grade instrumentation. Continuous casting lines, rolling mills, and annealing furnaces all benefit from the module’s stable RTD signal acquisition.

In water and wastewater treatment plants, the module supports temperature monitoring of biological reactors, chemical dosing systems, and UV disinfection units, contributing to regulatory compliance and process optimization in facilities that operate 24 hours a day, 365 days a year.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the AAR145-S50 S1 fails to perform to its published specifications within the warranty period, TOPNLMS will arrange repair, replacement, or full refund at no additional cost to the buyer. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How is each unit tested before shipment?
Every AAR145-S50 S1 unit undergoes a pre-shipment functional verification process that includes power-on testing, channel continuity checks, and communication bus handshake verification where applicable. Units sourced as surplus-new are inspected for physical integrity and firmware version compatibility. A test report is available upon request for critical infrastructure procurement.

Q3: Is the AAR145-S50 S1 compatible with all CENTUM VP versions?
The AAR145-S50 S1 is designed for use within the CENTUM VP platform and is compatible with field control station generations supporting the standard CENTUM VP I/O bus architecture, including R4.x, R5.x, and R6.x releases. For specific firmware or hardware revision compatibility questions, our technical team can cross-reference your existing system configuration before order confirmation.

Q4: Can TOPNLMS support long-term or repeat supply for maintenance programs?
Yes. TOPNLMS maintains ongoing sourcing relationships for YOKOGAWA CENTUM VP components, including the AAR145-S50 S1 and related I/O modules. We support planned maintenance programs, annual spare parts contracts, and emergency breakdown supply with expedited shipping. Contact our team to discuss volume pricing, reserved stock arrangements, and lead time commitments tailored to your plant’s maintenance schedule.
