Yokogawa AAR145-S50 Replacement/Upgrade for CENTUM VP

Product Overview

Yokogawa AAR145-S50 Replacement/Upgrade for CENTUM VP: Seamless Migration from Legacy Analog Output Systems

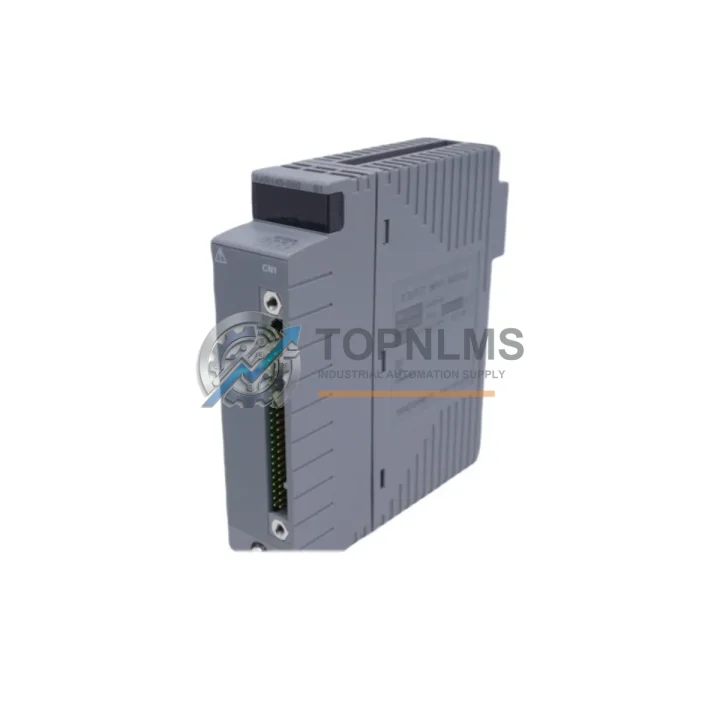

The Yokogawa AAR145-S50 is a 16-channel analog output module designed for the CENTUM VP distributed control system (DCS) platform. It delivers 4–20 mA current output signals across 16 independent channels, making it a critical field interface component in process automation environments including oil & gas, petrochemical, power generation, and water treatment facilities. For plants currently operating aging CENTUM CS 3000 or early-generation CENTUM VP hardware, the AAR145-S50 represents a validated, drop-in upgrade path that preserves existing field wiring, I/O mapping, and control logic without requiring a full system overhaul.

When a legacy analog output module such as the AAR141 or AAR143 reaches end-of-life or becomes unavailable through standard supply channels, the AAR145-S50 offers a direct functional replacement within the same node unit (NU) architecture. The module slots into standard CENTUM VP field control station (FCS) node units, maintaining physical compatibility with existing backplane connectors and terminal adapter wiring. Engineers performing the swap do not need to re-terminate field cables or reconfigure marshalling panels, significantly reducing planned maintenance windows and unplanned downtime risk.

From a signal perspective, the AAR145-S50 supports 4–20 mA analog output with HART communication pass-through capability on each channel, enabling continued use of HART-enabled field instruments such as control valves, positioners, and variable-speed drives already installed in the plant. This is particularly valuable during phased migration projects where some field devices are being upgraded to HART 7 while others remain on legacy HART 5 configurations. The module’s dual-redundancy support also allows it to be deployed in redundant output configurations alongside a paired module, maintaining the high-availability architecture required in safety-critical process loops.

For facilities transitioning from older Yokogawa hardware — including CENTUM XL or CENTUM CS 1000 systems — the AAR145-S50 is typically deployed as part of a broader FCS migration that may also involve replacing the processor card (CP461-50 or CP451-50), updating the power supply module (PW481), and installing new ESB bus interface modules. In these scenarios, the AAR145-S50 integrates directly into the new node unit without requiring changes to the CENTUM VP engineering environment, as the I/O module type is recognized automatically during FCS download. This dramatically simplifies the re-engineering effort and reduces the risk of configuration errors during cutover.

Communication compatibility is another key advantage. The AAR145-S50 communicates over the Yokogawa ESB (Extended Serial Backplane) bus, which is the standard internal bus architecture for CENTUM VP field control stations. This ensures full compatibility with existing FCS configurations, including those using Vnet/IP as the control network backbone. Plants that have already migrated their control network from the legacy V-net coaxial bus to Vnet/IP Ethernet will find that the AAR145-S50 integrates without any additional network configuration changes.

Physical installation is straightforward. The module occupies a standard slot in the CENTUM VP node unit and connects to field wiring via a dedicated terminal adapter (such as the ATD5D or ATD5S series), which can be reused from the previous module installation if the terminal adapter type matches. This reuse of existing terminal adapters and field cables is a significant cost and time saving in retrofit projects, particularly in large plants with hundreds of analog output channels distributed across multiple FCS cabinets.

For procurement teams and maintenance planners, the AAR145-S50 is available as a tested, verified unit with full functional inspection prior to shipment. Each unit undergoes output accuracy verification, channel isolation testing, and HART communication validation before dispatch. Stock is held in Xiamen and can be shipped globally with standard export documentation. Lead times are typically 1–3 business days for in-stock units.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM VP analog output migration rarely involves a single module in isolation. In practice, the AAR145-S50 replacement is most effective when coordinated with adjacent system components. The field control station processor — typically a CP461-50 or CP451-50 — should be verified for firmware compatibility with the AAR145-S50 before cutover. If the FCS is running an older CENTUM VP release, a firmware update may be required to ensure full HART pass-through functionality on all 16 channels.

On the power supply side, the PW481 or PW482 power supply module must be confirmed to provide adequate current capacity for the expanded channel count, particularly in node units where multiple analog output modules are installed in adjacent slots. In high-density I/O configurations, adding a second power supply module in a redundant arrangement is recommended to maintain system availability during module hot-swap operations.

For plants that are simultaneously upgrading their analog input infrastructure, the AAI141-S50 or AAI143-S50 analog input modules are the natural counterparts to the AAR145-S50 on the input side, sharing the same node unit architecture and terminal adapter compatibility. This allows a coordinated I/O refresh across both input and output channels within the same maintenance window.

Communication module upgrades are also commonly performed in parallel. The ESB bus interface module (EB401) and the Vnet/IP interface card (VN314) are frequently replaced during FCS modernization projects to ensure the control network operates at full rated bandwidth. If the plant is migrating from legacy V-net coaxial to Vnet/IP Ethernet, the network switch infrastructure and fiber patch panels in the control room and field junction boxes will also require attention.

Finally, for plants using Yokogawa CENTUM VP with ProSafe-RS safety instrumented systems, the analog output channels from the AAR145-S50 may interface with safety logic controllers via hardwired connections or through the SCS gateway. Ensuring that the output signal range and load impedance specifications of the AAR145-S50 are compatible with the connected safety system inputs is a mandatory step in the pre-cutover engineering review.

Retrofit Guidance FAQ

Q: Can I replace an AAR141 with the AAR145-S50 without changing field wiring?
A: Yes. If the existing terminal adapter (ATD5D or ATD5S) is compatible, field wiring can be retained. Verify the terminal adapter model before ordering.

Q: Is an FCS re-download required after module replacement?
A: Yes, a standard FCS download is required to register the new module. No re-engineering of control logic is needed — the I/O module type is recognized automatically by the CENTUM VP engineering environment.

Q: Does the AAR145-S50 support HART communication?
A: Yes. HART 5 and HART 7 are supported on all 16 channels, enabling continued use of HART-enabled field instruments without additional hardware.

Q: What is the physical installation space requirement?
A: The AAR145-S50 occupies one standard slot in a CENTUM VP node unit. No additional cabinet space is required compared to the legacy module it replaces.

Q: Can the module be used in a redundant output configuration?
A: Yes. Dual-redundancy is supported. A paired AAR145-S50 can be installed in the adjacent slot to form a redundant output pair, maintaining output continuity during module failure or hot-swap.

Q: What power supply is required?
A: The module is powered via the node unit backplane from the FCS power supply (PW481/PW482). No separate external power connection is required.

Warranty Assurance

Every AAR145-S50 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a structured functional inspection that includes output accuracy verification across all 16 channels, channel-to-channel isolation testing, HART communication validation, and visual inspection for connector and PCB integrity. Units that do not pass all inspection criteria are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial assessment and 5 business days for replacement dispatch. All warranty claims are handled directly — no third-party intermediaries.

For procurement teams requiring documentation, we can provide inspection reports, packing lists, and commercial invoices with HS code declaration for customs clearance. Export from Xiamen is supported with standard international shipping options including DHL, FedEx, and sea freight for bulk orders.
