YOKOGAWA AAM10 Replacement Upgrade for CENTUM Series

Product Overview

YOKOGAWA AAM10 Replacement Upgrade for CENTUM Series: Smooth Transition to Modern DCS Architecture

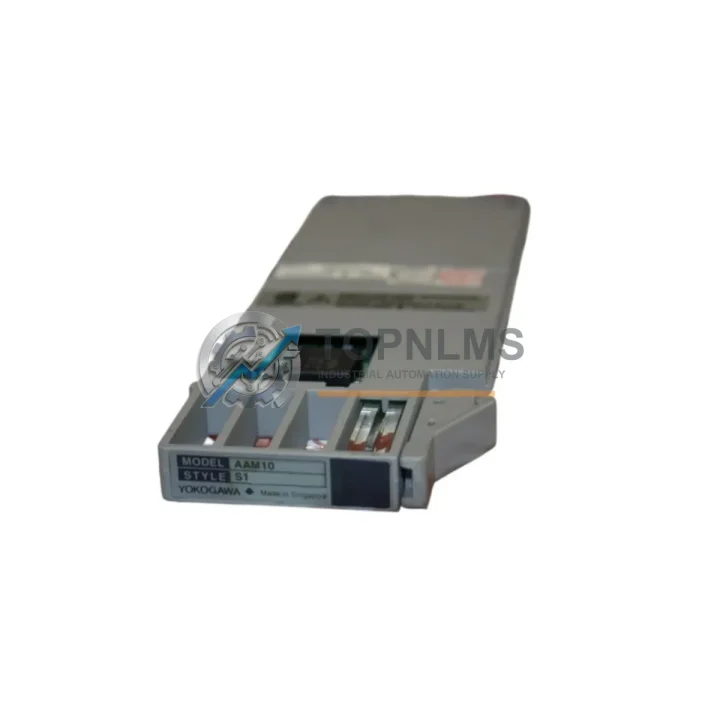

The YOKOGAWA AAM10 Analog Input Module is a critical field I/O component within the CENTUM CS 3000 and CENTUM VP distributed control system platforms. As legacy CENTUM CS installations approach end-of-life and spare-part availability tightens, plant engineers and procurement teams are actively seeking verified replacement and upgrade paths that preserve existing wiring infrastructure, minimize engineering rework, and reduce unplanned downtime. This listing provides a fully tested AAM10 module — sourced, inspected, and dispatched from our Xiamen warehouse — designed to slot directly into your existing CENTUM field control station without requiring panel redesign or PLC reprogramming.

The AAM10 accepts up to 16 channels of analog input signals (4–20 mA / 1–5 V DC), interfacing directly with field transmitters, pressure sensors, thermocouple signal conditioners, and flow measurement devices already wired to your existing terminal assemblies. Because the module retains the same physical form factor and connector pinout as the original CENTUM CS 3000 I/O bus, replacement does not require re-termination of field cables at the ATD (Analog Terminal Distributor) or ADM (Analog Distribution Module) level. Engineers familiar with CENTUM Builder or CENTUM VP Engineering Environment will find that existing function block assignments, tag names, and range parameters remain valid after hot-swap replacement, dramatically reducing commissioning time during a planned or emergency outage window.

For sites migrating from older CENTUM CS hardware to CENTUM VP or a hybrid architecture, the AAM10 serves as a bridge component. It continues to communicate over the existing V-net (Vnet/IP) field bus backbone, meaning the FCS (Field Control Station) — whether an FFCS, SFCS, or KFCS2 — does not require firmware updates or node address reassignment. This is particularly valuable when a phased migration strategy is in place: operators can upgrade controller cards such as the CP451 or CP461 while retaining proven I/O modules like the AAM10, spreading capital expenditure across multiple maintenance windows rather than forcing a full cutover.

Wiring compatibility is a primary concern during any DCS module replacement. The AAM10 connects to field devices through the standard YOKOGAWA terminal board assembly — typically the ATD or the AMN (Analog Multi-Node) nest — using the same 40-pin connector and DIN-rail mounting profile. No adapter plates, no re-pinning, and no changes to cable trays are required. For sites using HART-enabled transmitters, the AAM10 supports HART pass-through communication, allowing asset management software such as YOKOGAWA’s PRM (Plant Resource Manager) to continue polling field device diagnostics without interruption.

Power supply compatibility is equally straightforward. The AAM10 draws regulated 24 V DC from the FCS nest power bus, supplied by the existing RIO (Remote I/O) power supply unit or the nest-integrated PSU. No external power conditioning is required. For installations where the original PSU is also being replaced as part of a broader refresh, compatible YOKOGAWA power supply modules rated for the CENTUM VP nest architecture are available and can be sourced alongside the AAM10 to complete the bill of materials in a single procurement event.

Communication protocol continuity is another key advantage of the AAM10 in a migration scenario. The module communicates with the FCS over the internal I/O bus rather than an external fieldbus, meaning there is no dependency on PROFIBUS DP, Modbus RTU, or FOUNDATION Fieldbus segment configuration. For plants that are simultaneously upgrading their supervisory layer — for example, integrating a new OPC-UA gateway or replacing a legacy DCS historian — the AAM10’s transparent I/O bus operation ensures that tag data continues to flow to the SCADA or MES layer without protocol translation overhead.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AAM10 replacement rarely occurs in isolation. During the same maintenance window, engineering teams typically audit adjacent modules in the same FCS nest. The AAM21 Analog Output Module and AAM50 Analog Input Module share the same nest slot architecture and are frequently replaced alongside the AAM10 when a full I/O nest refresh is planned. For sites where thermocouple or RTD inputs are present, the AAM11 Thermocouple/mV Input Module is the natural companion, accepting the same terminal board wiring without modification.

On the digital side, the ADM12 Digital Input Module and ADM51 Digital Output Module occupy adjacent slots in the same CENTUM I/O nest and are commonly procured together with analog modules to complete a full nest population. For communication-intensive applications — particularly where the FCS must interface with third-party PLCs or remote RTUs over Modbus or PROFIBUS — the ACM12 Communication Module provides the necessary protocol gateway functionality without requiring changes to the Vnet/IP backbone.

Power continuity during module swap is supported by the PW481 Power Supply Module, which provides redundant 24 V DC to the FCS nest and can be hot-swapped independently of the I/O modules. For sites upgrading their operator interface simultaneously, the YOKOGAWA FAST/TOOLS SCADA platform or a replacement HIS (Human Interface Station) running CENTUM VP Operator can be integrated without changes to the field I/O layer, since all tag data flows transparently through the existing FCS. Finally, for field engineers performing on-site commissioning and loop checks, a YOKOGAWA BT200 BRAIN Terminal or compatible HART communicator ensures that transmitter calibration and diagnostic reads can be performed at the terminal board level without interrupting the live control loop.

Retrofit Guidance FAQ

Q: Can I replace the AAM10 without shutting down the entire FCS?
A: The AAM10 supports hot-swap replacement in CENTUM VP systems with redundant I/O configuration. In non-redundant configurations, the affected 16 channels will go to their configured fail-safe state during the swap interval — typically less than 30 seconds. Coordinate with your DCS engineer to place affected loops in manual mode before removal.

Q: Do I need to re-download the FCS database after replacement?
A: No. The AAM10 is a passive I/O module; its configuration is stored in the FCS controller (CP451/CP461), not in the module itself. After physical replacement, the FCS automatically re-initializes the module and resumes normal scan without a database download.

Q: Is the wiring at the ATD terminal board compatible with the replacement unit?
A: Yes. The ATD terminal board and field cable terminations remain unchanged. The AAM10 connects to the ATD via the standard 40-pin ribbon cable. No re-termination or re-labeling of field cables is required.

Q: What communication protocols does the AAM10 support?
A: The AAM10 communicates exclusively over the CENTUM internal I/O bus (Vnet/IP). It does not expose a standalone Modbus, PROFIBUS, or FOUNDATION Fieldbus interface. Protocol conversion to external systems is handled at the FCS or ACM module level.

Q: Will HART device diagnostics continue to function after replacement?
A: Yes. HART pass-through is maintained on all 16 channels. Your PRM or third-party asset management system will resume HART polling automatically once the module is online.

Q: What if the physical installation space in my control cabinet has been modified?
A: The AAM10 occupies a single standard CENTUM I/O nest slot (same as all CENTUM CS 3000 / VP I/O modules). If your nest or rack has been physically modified, contact us with your nest model number and we will confirm fitment before shipment.

Warranty Assurance

Every YOKOGAWA AAM10 module dispatched from our Xiamen facility undergoes a pre-shipment functional test covering channel continuity, signal accuracy across the full 4–20 mA range, and bus communication handshake verification. Units are shipped in anti-static packaging with individual test records available upon request.

12-Month Warranty: All units carry a 12-month warranty from the date of delivery. Warranty coverage includes module failure under normal operating conditions, DOA (Dead on Arrival) replacement within 7 business days of receipt, and technical support for installation and commissioning queries. Warranty claims are processed via email with a typical response time of 1 business day.

Shipping: Standard dispatch from Xiamen within 1–3 business days of order confirmation. Express DHL/FedEx options are available for urgent replacement scenarios. Export documentation, including commercial invoice and packing list, is provided for all international shipments.

Procurement Assurance: We maintain buffer stock of high-demand CENTUM I/O modules to support emergency replacement requirements. Volume pricing is available for MRO (Maintenance, Repair & Operations) procurement contracts. Contact us to discuss blanket order arrangements for ongoing spare-part programs.
