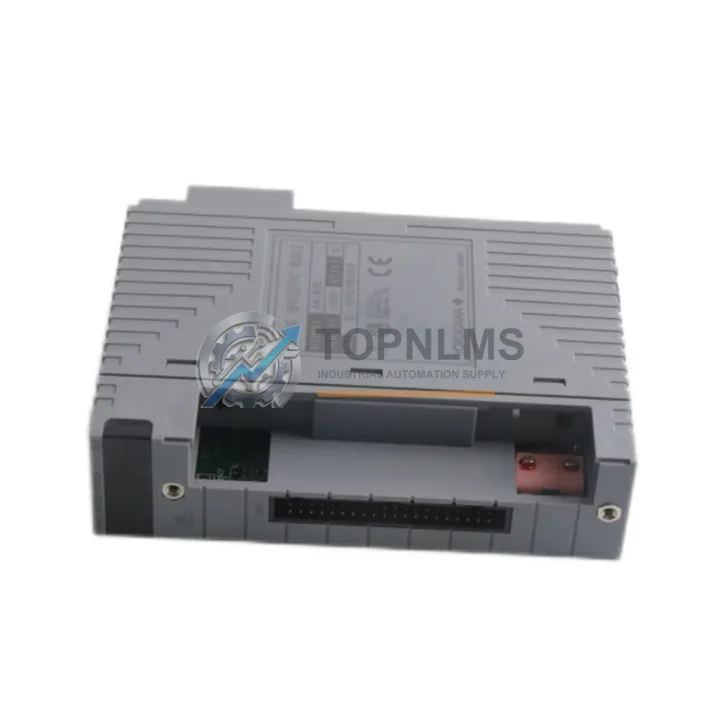

YOKOGAWA AAI835-H00 S1 Ruggedized Analog Input Module

Product Overview

YOKOGAWA AAI835-H00 S1 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The YOKOGAWA AAI835-H00 S1 is a 16-channel analog input module engineered for the CENTUM VP Distributed Control System (DCS) — one of the most trusted process automation platforms deployed across critical infrastructure worldwide. Designed to operate reliably under extreme thermal cycling, high-humidity atmospheres, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference, the AAI835-H00 S1 delivers the signal integrity and uptime assurance that continuous-process industries demand.

In oil refineries, petrochemical complexes, offshore platforms, and LNG terminals, field instrumentation must transmit accurate 4–20 mA analog signals without drift or dropout — even when ambient temperatures fluctuate, when heavy machinery generates broadband EMI, or when corrosive gases permeate the control room. The AAI835-H00 S1 addresses these challenges through galvanically isolated input channels, robust surge suppression circuitry, and a conformal-coated PCB assembly that resists moisture ingress and chemical vapors. Each channel independently converts field signals to digital values with high resolution, ensuring that the CENTUM VP controller receives clean, reliable process data for closed-loop control and safety interlock evaluation.

Rugged Specifications Table

Comprehensive Protection Solutions

The AAI835-H00 S1 does not operate in isolation — it is one node in a tightly integrated CENTUM VP control architecture. In a typical process plant control cabinet, this module sits alongside the YOKOGAWA AAI143-S00 analog input module and the AAO145-S00 analog output module, collectively handling the full signal chain from field transmitters to final control elements. The AMM12C multi-point controller module coordinates scan cycles across all I/O nodes, while the ACM12C communication module maintains high-speed V-net/IP data exchange between field controllers and the operator station.

For digital interlock and safety logic, the AAI835-H00 S1 works in concert with the ADM12C digital input module and the ADO12C digital output module, enabling the CENTUM VP system to execute both continuous regulatory control and discrete safety shutdown sequences from a unified platform. In installations where functional safety certification is required, the system can be extended with YOKOGAWA’s ProSafe-RS Safety Instrumented System modules, which interface with the CENTUM VP via the Vnet/IP network to provide SIL 2 / SIL 3 rated protection layers without duplicating the engineering environment.

Power distribution within the control cabinet is typically managed by the YOKOGAWA PW481 power supply module, which provides regulated 24 VDC to the I/O bus with redundant feed capability. Terminal connectivity between field cables and the module carrier is handled through YOKOGAWA TB series terminal blocks, which support marshalling, loop checking, and hot-swap maintenance without interrupting live process signals. For installations requiring HART pass-through, the AAI835-H00 S1 supports superimposed HART communication, enabling asset management software such as YOKOGAWA’s PRM (Plant Resource Manager) to perform remote diagnostics on connected field instruments — a critical capability for predictive maintenance programs in refineries and chemical plants.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the AAI835-H00 S1 monitors pressure transmitters, flow meters, and temperature sensors across wellhead control panels, compressor stations, and pipeline SCADA nodes. Its galvanic isolation prevents ground loops that are endemic in geographically distributed installations, and its surge-suppressed inputs protect against lightning-induced transients on long cable runs.

In coal-fired and combined-cycle power plants, the module acquires analog signals from boiler drum level transmitters, turbine vibration probes, and generator excitation feedback loops. The CENTUM VP platform’s redundant controller architecture — supported by modules like the AAI835-H00 S1 — enables hot-standby failover in under 100 milliseconds, meeting the availability requirements of grid-connected generation assets.

In water and wastewater treatment plants, the module interfaces with pH analyzers, dissolved oxygen sensors, and chlorine residual transmitters. Its wide humidity tolerance and conformal coating make it suitable for the damp, chemically aggressive environments found in pump stations and filtration buildings. Municipal utilities operating CENTUM VP-based SCADA systems rely on genuine OEM modules like the AAI835-H00 S1 to maintain measurement accuracy across multi-year operational cycles without recalibration drift.

In metallurgical and steel-making facilities, where radiated EMI from arc furnaces and induction heaters can saturate poorly shielded I/O modules, the AAI835-H00 S1’s EMC-hardened design maintains signal fidelity. Blast furnace burden distribution systems, continuous casting line controls, and rolling mill tension regulators all depend on accurate analog feedback — and the AAI835-H00 S1 delivers that accuracy even in the presence of high-frequency interference.

In mining and mineral processing operations, the module supports conveyor load cell monitoring, flotation cell level control, and crusher motor current feedback — applications where vibration, dust, and wide temperature swings are constant operating conditions rather than exceptional events.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, contact us at [email protected] with the order reference and a description of the fault. We will arrange a replacement or repair at no additional cost, including return shipping coordination.

Q2: How is each AAI835-H00 S1 unit tested before shipment?
Every unit undergoes a multi-stage inspection process: visual inspection for physical damage, power-on functional verification, channel-by-channel signal integrity testing, and firmware version confirmation. Units that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for critical-application procurement.

Q3: Is the AAI835-H00 S1 compatible with CENTUM CS 3000 systems?
The AAI835-H00 S1 is natively designed for CENTUM VP. Compatibility with CENTUM CS 3000 depends on the specific carrier and node configuration in your installation. We recommend confirming your system’s I/O carrier model and firmware revision before ordering. Our technical team can assist with compatibility verification — contact us with your system configuration details.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. We maintain a dedicated inventory of YOKOGAWA CENTUM VP I/O modules to support plant maintenance, emergency replacement, and scheduled turnaround programs. For customers with multi-year maintenance contracts or large installed bases, we offer reserved stock arrangements and priority fulfillment. Contact us to discuss your long-term supply requirements.
