YOKOGAWA AAI543-S00 S1 Replacement for CENTUM VP

Product Overview

YOKOGAWA AAI543-S00 S1 Replacement for CENTUM VP: Smooth Migration from Legacy DCS

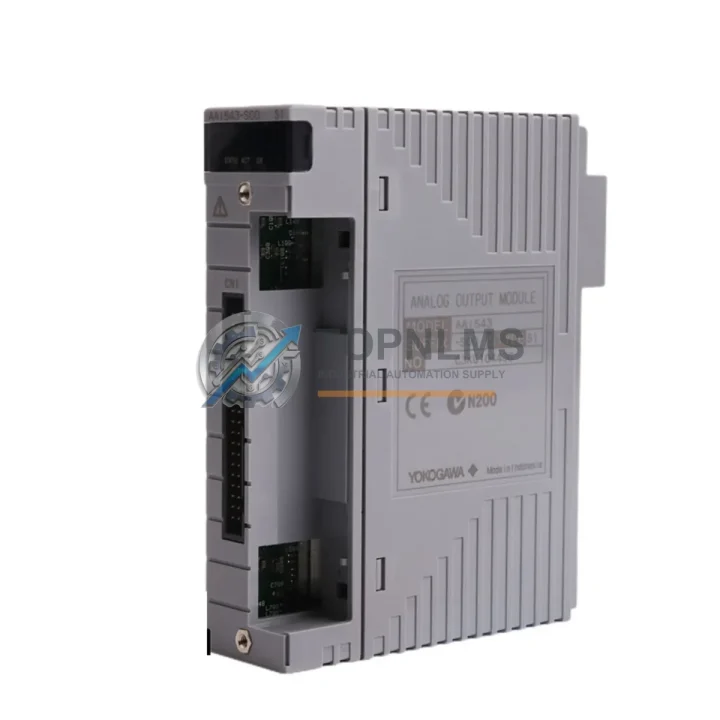

The YOKOGAWA AAI543-S00 S1 is a 16-channel analog output module designed for the CENTUM VP and CENTUM CS 3000 distributed control systems. As legacy DCS installations age and original spare parts become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to secure reliable, drop-in replacements that preserve system integrity without triggering a full-scale control system overhaul. This listing provides a tested, in-stock replacement unit that supports a seamless transition from end-of-life inventory to a verified, field-ready module — minimizing unplanned downtime and protecting your existing capital investment.

The AAI543-S00 S1 outputs 4–20 mA analog signals across 16 independent channels, interfacing directly with field instruments such as control valves, positioners, and variable-speed drives. Its slot-compatible form factor means it installs directly into the existing CENTUM VP field control station (FCS) chassis without mechanical modification. Wiring terminations are preserved through the existing marshalling cabinet and terminal boards, eliminating the need for rewiring or signal re-engineering during the swap. Engineers migrating from earlier CS 3000 installations will find that the module’s I/O signal range, channel density, and rack pinout remain consistent with the predecessor platform, making cross-generation upgrades straightforward.

From a communications and architecture standpoint, the AAI543-S00 S1 operates within the CENTUM VP Vnet/IP control network, maintaining full compatibility with the system’s function block library and engineering environment. Control logic built in CENTUM CS 3000 can be migrated to CENTUM VP with minimal rework, and the analog output assignments mapped to this module carry over without channel remapping. This is particularly valuable in brownfield retrofit projects where the goal is to upgrade the control hardware while retaining validated process control strategies.

During a typical migration project, the AAI543-S00 S1 is installed alongside complementary modules in the same FCS node. Analog input modules such as the AAI141-S03 or AAI543 series handle process variable feedback, while communication modules like the ALR111 or ESB bus coupler maintain inter-node connectivity. Power supply modules — including the PWR481 or PWR482 — provide the regulated 24 VDC rail that the analog output module draws from, and their capacity should be verified before adding channels to an existing node. In multi-node architectures, the ESB coupler and node interface units coordinate data exchange across the Vnet/IP backbone, ensuring that the replaced module’s output data is correctly reflected in the operator station and historian.

For sites running hybrid architectures that combine CENTUM VP with third-party safety systems or FOUNDATION Fieldbus segments, the AAI543-S00 S1 continues to serve as the conventional 4–20 mA bridge between the DCS and field devices. Signal isolators or barriers may be required in intrinsically safe zones, and these should be verified against the existing loop documentation before commissioning. The module’s output impedance and load-driving capability are consistent with standard industrial field wiring practices, supporting cable runs typical of process plant environments.

Procurement teams evaluating this replacement should note that the unit ships with full functional test documentation. Each module undergoes bench verification of all 16 output channels prior to dispatch, confirming signal accuracy, channel isolation, and power consumption within YOKOGAWA’s published specifications. Units are packaged in anti-static shielding with foam protection to prevent transit damage, and shipping is available via DHL Express, FedEx International Priority, or sea freight consolidation depending on urgency and destination.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete CENTUM VP node migration typically involves more than a single module swap. Alongside the AAI543-S00 S1 analog output module, engineers commonly source the AAI141-S03 analog input module to handle process variable acquisition on the same node, ensuring balanced I/O capacity. The ALR111 Vnet/IP communication module maintains network connectivity between the FCS and the operator station, while the ESB bus coupler links legacy ESB-based nodes into the updated Vnet/IP backbone. Power integrity is maintained through the PWR481 or PWR482 power supply modules, which should be checked for available headroom before expanding the I/O count. In applications involving digital field devices, the AAT141 or AAT145 FOUNDATION Fieldbus interface modules may be installed in adjacent slots to support hybrid conventional and fieldbus architectures. For sites requiring signal conditioning between the DCS output and intrinsically safe field loops, DIN-rail-mounted signal isolators are installed in the marshalling cabinet alongside the existing terminal boards. HMI stations running CENTUM VP’s HIS (Human Interface Station) software display the analog output values in real time, and no tag remapping is required when the replacement module is installed in the same slot position. Where the migration scope extends to the controller level, the FCU (Field Control Unit) processor card and its associated node interface units may also be refreshed as part of the same maintenance window to maximize the return on the site visit.

Retrofit Guidance FAQ

Q: Can the AAI543-S00 S1 be installed in a CENTUM CS 3000 node without upgrading the entire FCS?
A: Yes. The module is slot-compatible with CS 3000 FCS nodes. The existing terminal board and wiring remain unchanged. A firmware check on the FCS processor is recommended to confirm compatibility with the module revision.

Q: Is reprogramming required after the module swap?
A: No reprogramming is required if the replacement module is installed in the same slot. The function block assignments and I/O tag addresses are retained by the FCS controller. A download of the control database may be required if the slot configuration has changed.

Q: What communication protocol does the AAI543-S00 S1 use?
A: The module communicates via the CENTUM VP internal I/O bus within the FCS node. External node-to-node communication uses Vnet/IP. No additional protocol configuration is needed for a like-for-like slot replacement.

Q: Are there physical space constraints to consider?
A: The module occupies a single standard FCS slot. Dimensions and mounting are identical to the CS 3000 predecessor, so no cabinet modification is required.

Q: What should be verified before powering up after installation?
A: Verify the 24 VDC supply rail voltage, confirm the terminal board connector is fully seated, check that the slot address matches the engineering database, and perform a channel-by-channel output verification using the CENTUM VP test function before returning the loop to automatic control.

Warranty Assurance

Every AAI543-S00 S1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a full functional test across all 16 output channels, with results documented and available upon request. Units that exhibit any deviation from YOKOGAWA’s published specifications are quarantined and not shipped. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the agreed resolution timeline. Our technical team is available to support installation queries, compatibility verification, and commissioning guidance. Orders are typically processed and dispatched within 1–3 business days, with express options available for urgent plant maintenance requirements. Bulk procurement and long-term supply agreements are supported for MRO and spare parts programs.
