YOKOGAWA AAI543-H50 Ruggedized Analog Output Module

Product Overview

YOKOGAWA AAI543-H50 Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

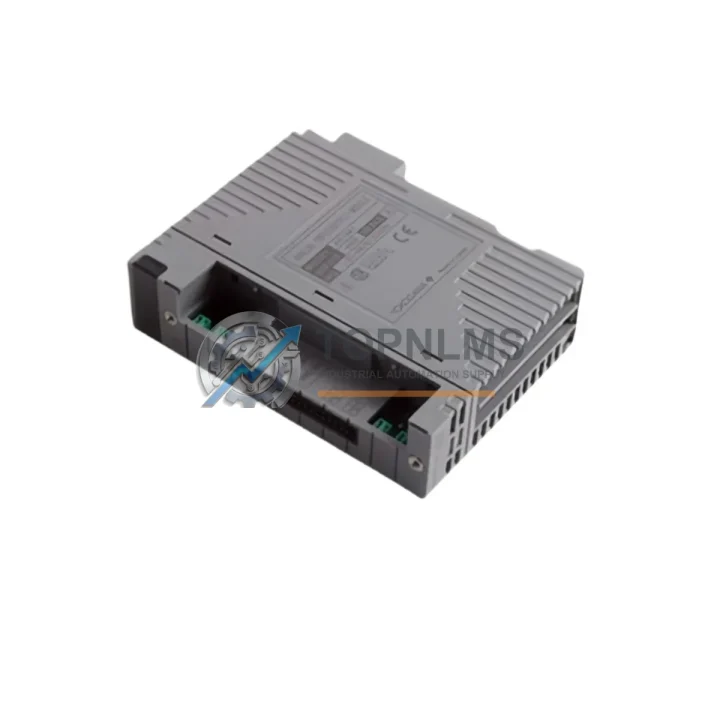

The YOKOGAWA AAI543-H50 is a 16-channel analog output module engineered for the CENTUM VP Distributed Control System (DCS) — one of the most trusted process automation platforms deployed across critical industries worldwide. Designed to deliver precise, stable 4–20 mA analog output signals across all 16 channels simultaneously, the AAI543-H50 is built to sustain continuous operation in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI). Whether installed in a petrochemical refinery, a deep-shaft mining facility, a municipal water treatment plant, or a high-voltage power generation station, this module maintains signal integrity and output accuracy without compromise.

In industrial automation, the reliability of an analog output module is not merely a performance metric — it is a safety imperative. The AAI543-H50 interfaces directly with field devices such as control valves, variable frequency drives (VFDs), electro-pneumatic positioners, and current-controlled actuators. Any signal degradation or module failure in these loops can cascade into process upsets, unplanned shutdowns, or safety incidents. YOKOGAWA’s engineering philosophy for the CENTUM VP platform prioritizes fault tolerance, redundancy support, and long-term field stability, and the AAI543-H50 embodies these principles at the I/O layer.

Rugged Specifications Table

Comprehensive Protection Solutions

The AAI543-H50 does not operate in isolation — it is a precision component within a tightly integrated CENTUM VP control architecture. In a typical Field Control Station (FCS) cabinet, it works in concert with analog input modules such as the AAI141-S and AAI543-S to form complete process measurement and control loops. On the digital side, it shares the I/O nest with modules like the ADV151-P (digital output) and ADV161-P (digital input), enabling coordinated discrete and continuous control within a single FCS node.

For applications requiring functional safety compliance, the AAI543-H50 is deployed alongside YOKOGAWA’s safety-rated I/O modules and the ProSafe-RS Safety Instrumented System (SIS), ensuring that analog output loops feeding safety-critical actuators meet SIL 2 or SIL 3 requirements. The module’s channel isolation architecture prevents fault propagation — a single channel failure does not compromise adjacent outputs, which is essential in continuous process environments where partial operation is preferable to full shutdown.

Power integrity is maintained through YOKOGAWA’s PW481 and PW482 power supply modules, which provide redundant 24 VDC bus power to the I/O nest. In high-EMI environments such as motor control centers or switchgear rooms, the AAI543-H50’s shielded backplane interface and optically isolated channel outputs suppress noise coupling that would otherwise introduce offset errors in 4–20 mA loops. Communication between the FCS and the Human Interface Station (HIS) is handled via the Vnet/IP control network, with the ACM12 communication module managing real-time data exchange at deterministic cycle times.

For cabinet-level protection, the AAI543-H50 is typically installed alongside terminal assemblies such as the TB820V or marshalling panels with surge protection barriers, ensuring that field wiring transients — common in outdoor installations or long cable runs — do not reach the module’s output circuitry. In hazardous area applications, intrinsic safety barriers or galvanic isolators are placed between the module and field devices to maintain zone compliance.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the AAI543-H50 drives control valve positioners on wellhead pressure control loops, pipeline flow control stations, and separator level control systems. The module’s ability to maintain accurate 4–20 mA output under wide ambient temperature swings — from desert heat to arctic cold — makes it a preferred choice for remote unmanned installations where maintenance access is infrequent and module reliability directly determines production continuity.

In coal-fired and combined-cycle power generation plants, the module controls burner management actuators, steam turbine governor valves, and boiler feedwater control valves. These are high-consequence loops where output signal accuracy directly affects combustion efficiency, emissions compliance, and turbine protection. The AAI543-H50’s 13-bit resolution and low drift characteristics ensure that setpoint tracking remains tight across the full load range.

In mining and mineral processing, the module is deployed in flotation cell level control, conveyor speed regulation via VFD reference signals, and crusher load management. The harsh combination of airborne silica dust, mechanical vibration from heavy machinery, and ground-loop noise from large motors creates a demanding electromagnetic environment. The AAI543-H50’s robust isolation and EMI-hardened design sustain reliable output in these conditions without requiring additional signal conditioning.

In water and wastewater treatment, the module controls chemical dosing pumps, aeration blower VFDs, and effluent flow control valves. Continuous 24/7 operation is the norm, and any unplanned module failure triggers regulatory compliance risks. Facilities that maintain AAI543-H50 units as certified spare parts reduce mean time to repair (MTTR) from days to hours, protecting both operational continuity and environmental compliance obligations.

In metallurgical and steel production environments, the module manages furnace temperature control loops, rolling mill speed references, and cooling water flow regulation. The combination of radiated heat, inductive loads from large transformers, and mechanical shock from rolling operations represents one of the most demanding environments for any I/O module. YOKOGAWA’s CENTUM VP platform — and the AAI543-H50 specifically — is validated for these conditions through decades of field deployment in integrated steel mills across Asia, Europe, and the Americas.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All AAI543-H50 units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers functional defects, output accuracy failures, and communication faults attributable to the module itself. In the event of a warranty claim, we provide a replacement unit or full refund after fault verification. Our warranty process is documented and traceable — each unit is assigned a dispatch record with test results attached.

Q2: How is each unit tested before shipment?
Every AAI543-H50 undergoes a pre-shipment functional verification process that includes power-on self-test, channel-by-channel output accuracy measurement across the 4–20 mA range, isolation resistance check, and visual inspection for physical damage or connector wear. Units that do not meet YOKOGAWA’s published specifications are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is the AAI543-H50 compatible with all CENTUM VP versions?
The AAI543-H50 is compatible with CENTUM VP R4.x, R5.x, and R6.x Field Control Station environments. It is plug-compatible with standard CENTUM VP I/O nests and does not require firmware modification for installation. For sites running CENTUM CS 3000, compatibility depends on the specific FCS hardware generation — contact our technical team with your FCS model number for confirmation before ordering.

Q4: Can TOPNLMS support long-term or repeat supply of the AAI543-H50?
Yes. TOPNLMS maintains standing inventory of high-demand YOKOGAWA CENTUM VP I/O modules, including the AAI543-H50, to support both emergency spare procurement and planned maintenance programs. We can accommodate blanket purchase orders, scheduled delivery agreements, and multi-site supply contracts. For facilities managing large CENTUM VP installations, we recommend establishing a pre-qualified spare parts agreement to eliminate lead time risk during critical maintenance windows.
