YOKOGAWA AAI143-S00 S1 Replacement for CENTUM VP

Product Overview

YOKOGAWA AAI143-S00 S1 Replacement for CENTUM VP: Smooth Migration from Legacy DCS Systems

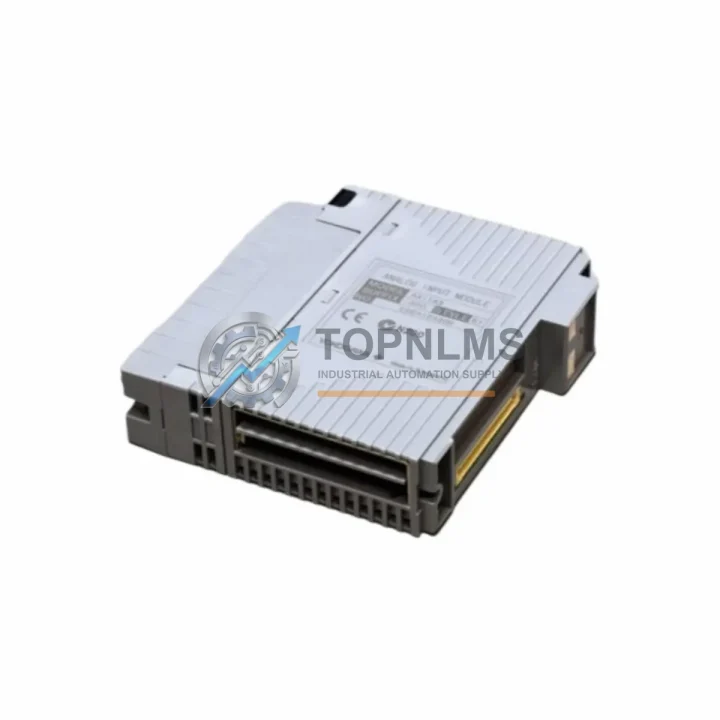

The YOKOGAWA AAI143-S00 S1 is a 16-channel HART-enabled Analog Input module designed for the CENTUM VP and CS 3000 Distributed Control Systems. As industrial facilities worldwide accelerate the retirement of aging DCS infrastructure, the AAI143-S00 S1 has become one of the most sought-after replacement and upgrade components for engineers managing brownfield modernization projects. Whether you are replacing a failed card in an active production line or executing a planned migration from CS 3000 to CENTUM VP R6, this module delivers the signal integrity, protocol compatibility, and physical form factor required for a seamless transition with minimal downtime.

The AAI143-S00 S1 accepts 4–20 mA analog input signals across all 16 channels and supports HART communication protocol, enabling simultaneous process variable acquisition and device diagnostics without additional wiring infrastructure. This dual-function capability is critical in upgrade scenarios where legacy field instruments — including YOKOGAWA EJA-series pressure transmitters, EJX multivariable transmitters, and third-party HART-compliant sensors — must be retained to avoid full field rewiring costs. The module slots directly into the standard CENTUM VP I/O nest, maintaining the same terminal block pinout as predecessor models, which eliminates the need for wiring modification in most retrofit applications.

During migration from CS 3000 to CENTUM VP, engineers frequently encounter compatibility questions around the I/O bus architecture, node controller assignments, and function block mapping. The AAI143-S00 S1 is fully supported by CENTUM VP Engineering Environment (ENG), and its channel configuration — including range setting, filter time constant, and HART polling address — can be imported or re-mapped from existing CS 3000 builder files with standard engineering tools. This significantly reduces re-commissioning time compared to cross-brand migrations and allows control logic in the FCS (Field Control Station) to remain largely unchanged.

In terms of physical installation, the AAI143-S00 S1 occupies a single slot in the CENTUM VP I/O unit and is compatible with standard YOKOGAWA terminal boards such as the TB820V and TB830V, which are commonly found in existing CS 3000 and CENTUM VP cabinets. When upgrading a control cabinet that also houses power supply modules like the PW481 or PW482, the module’s power draw remains within the standard nest budget, avoiding the need for additional power infrastructure. For installations where cabinet space is constrained, the compact form factor of the AAI143-S00 S1 allows it to coexist with other I/O modules — including digital input modules such as the ADI141 and relay output modules such as the AAT141 — within the same I/O unit without modification.

Communication architecture is another key consideration in DCS upgrade projects. The AAI143-S00 S1 communicates with the Field Control Station via the CENTUM VP V-net/IP or ESB bus, depending on the system generation. In hybrid environments where older RIO (Remote I/O) nodes are being phased out and replaced with newer ESB-connected I/O units, the AAI143-S00 S1 integrates without requiring changes to the network topology. This is particularly valuable in phased migration strategies where only selected I/O cards are replaced per maintenance window, allowing the rest of the system to remain operational.

For facilities transitioning from third-party DCS platforms — such as Honeywell TDC 3000, ABB Advant, or Emerson DeltaV — to YOKOGAWA CENTUM VP, the AAI143-S00 S1 serves as the standard analog input interface for the new system. In these cross-brand migrations, field wiring from existing junction boxes is typically re-terminated to YOKOGAWA terminal boards, and the AAI143-S00 S1’s universal 4–20 mA input range ensures compatibility with virtually all installed field transmitters. The HART pass-through capability further enables asset management integration with YOKOGAWA’s PRM (Plant Resource Manager) or third-party AMS platforms without additional hardware.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DCS migration rarely involves a single module replacement. In practice, upgrading to the AAI143-S00 S1 is typically part of a broader I/O refresh that may also involve replacing aging digital input modules such as the ADI141-S00, digital output modules such as the ADO141-S00, and analog output modules such as the AAO145-S00 — all of which share the same CENTUM VP I/O nest and terminal board ecosystem. For systems where the Field Control Station itself is being upgraded, the AAI143-S00 S1 is often deployed alongside a new FCS processor card and updated ESB bus coupler to bring the entire control node to current firmware standards.

In projects where HART device management is being centralized, the AAI143-S00 S1 is paired with YOKOGAWA’s PRM server and a dedicated HART multiplexer or HART-over-ESB gateway to enable online device diagnostics without interrupting process control. For installations requiring signal isolation between field devices and the DCS — particularly in hazardous area applications — a DIN-rail mounted signal isolator or safety barrier is installed between the field terminal and the TB820V terminal board, preserving the AAI143-S00 S1’s input accuracy while meeting IEC 60079 requirements. Power supply redundancy is typically maintained using dual PW481 or PW482 modules in the same I/O cabinet, ensuring the AAI143-S00 S1 remains powered during single-supply failures.

Retrofit Guidance FAQ

Q: Can I replace an AAI141 with the AAI143-S00 S1 without rewiring?
A: In most cases, yes. Both modules use the same TB820V/TB830V terminal board and share the same 16-channel pinout. Verify the terminal board revision before installation.

Q: Does the AAI143-S00 S1 require firmware updates after installation?
A: The module firmware is managed by the CENTUM VP FCS. After physical installation, run a hardware scan in the Engineering Environment to detect the new module and confirm firmware compatibility with your FCS version.

Q: Is HART communication active on all 16 channels simultaneously?
A: HART polling is sequential per channel. All 16 channels support HART, but simultaneous multi-drop polling depends on your PRM configuration and polling interval settings.

Q: Can this module be used in a CS 3000 system?
A: The AAI143-S00 S1 is primarily designed for CENTUM VP. Use in CS 3000 requires verification of I/O bus compatibility and may require an adapter nest. Contact our technical team for project-specific confirmation.

Q: What is the lead time and shipping method?
A: In-stock units ship within 1–3 business days from Xiamen, China via DHL Express or FedEx International Priority. Estimated delivery is 3–7 business days to most destinations.

Warranty Assurance

Every YOKOGAWA AAI143-S00 S1 module supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including channel continuity checks, HART communication validation, and visual inspection for physical damage. In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or full refund at no additional cost to the buyer. Our after-sales response time is within 24 hours on business days. We maintain stock of common CENTUM VP I/O modules to support rapid replacement in emergency shutdown or unplanned outage scenarios, minimizing your plant’s exposure to extended downtime.

For bulk procurement, project-based pricing, or technical pre-sales consultation, contact our team directly. We support OEM integrators, EPC contractors, and end-user maintenance departments with documented traceability, packing lists, and test records upon request.
