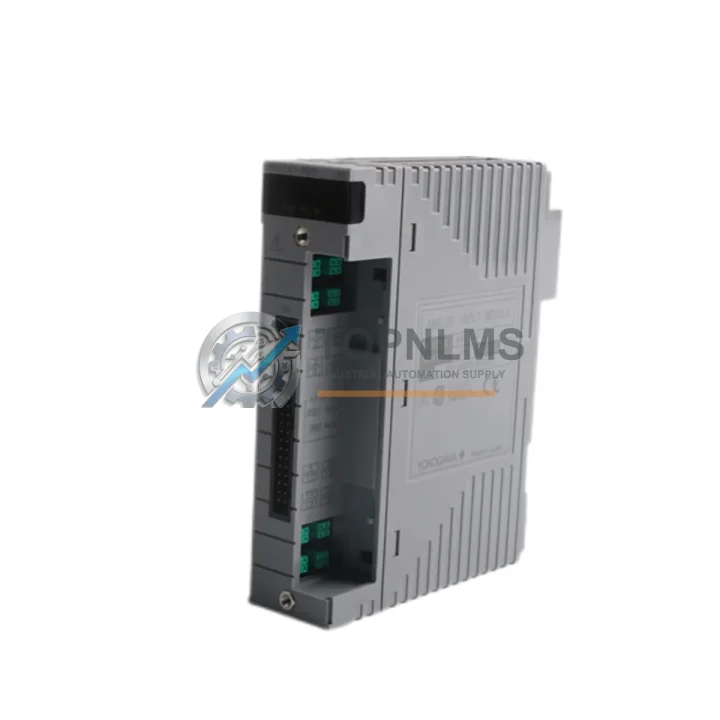

YOKOGAWA AAI141-H00 S1 Replacement for CENTUM VP: Smooth Migration from Legacy DCS

The YOKOGAWA AAI141-H00 S1 is a 16-channel analog input module designed for the CENTUM VP Distributed Control System platform. As process plants worldwide face the challenge of maintaining aging DCS infrastructure, the AAI141-H00 S1 has become one of the most sought-after replacement and upgrade components for facilities transitioning away from end-of-life CENTUM CS 3000 and early CENTUM VP configurations. Whether your existing module has failed, is approaching its service life, or your plant is executing a phased modernization program, this module delivers a verified drop-in solution that minimizes engineering rework, preserves existing field wiring, and restores full system functionality with minimal downtime.

The AAI141-H00 S1 accepts 4–20 mA analog signals across all 16 channels and integrates directly into the CENTUM VP I/O subsystem via the standard V net or Vnet/IP communication backbone. Its compact form factor fits the existing FCS (Field Control Station) nest and baseplate without mechanical modification, making it an ideal candidate for hot-swap replacement during planned maintenance windows or emergency shutdowns. The module is fully compatible with YOKOGAWA’s CENTUM VP engineering environment, meaning existing function blocks, tag assignments, and loop configurations require no reprogramming after substitution.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM VP migration rarely involves a single module swap. In practice, plants replacing the AAI141-H00 S1 are simultaneously addressing adjacent components within the same FCS cabinet or I/O subsystem. Terminal assembly units such as the ATD series terminal boards are commonly replaced alongside the analog input module to ensure clean signal termination and eliminate aged wiring connections that can introduce noise or ground loops. Where the existing installation uses multiplexed I/O, the AAB841 analog output module is often upgraded in the same maintenance cycle to maintain balanced I/O capacity within the nest.

Communication integrity is equally critical during migration. Plants running Vnet/IP redundant networks should verify the status of their ESB bus interface modules and, where applicable, the ACM12 communication module that bridges legacy V net segments to the updated Vnet/IP backbone. Replacing the AAI141-H00 S1 without auditing the communication path can result in intermittent data loss that is difficult to diagnose post-commissioning.

Power distribution within the FCS cabinet is another area requiring attention. The PWR48 series power supply modules that feed the I/O nests should be inspected for capacitor aging, particularly in installations older than eight years. A failing power module can cause erratic behavior in newly installed analog input cards, masking the root cause of process upsets. Similarly, the PW481 redundant power unit is frequently replaced as part of the same modernization scope to ensure the upgraded I/O subsystem operates on a reliable power foundation.

For plants integrating HART-enabled field instruments, the AAI141-H00 S1 supports HART pass-through when paired with the appropriate HART multiplexer interface. This allows asset management software running on the CENTUM VP HIS (Human Interface Station) to communicate with smart transmitters without additional wiring changes. Facilities upgrading from non-HART-capable legacy modules will find this capability particularly valuable for predictive maintenance programs.

Finally, where the modernization scope extends to the operator interface layer, the CENTUM VP HIS workstation and associated FCS controller modules — including the FCN-RTU and AFV10S field control units — are natural companions to the AAI141-H00 S1 upgrade. Coordinating these replacements within a single planned shutdown window significantly reduces total project cost and minimizes the number of process interruptions required to complete the modernization.

Retrofit Guidance FAQ

Q: Can I replace the AAI141-H00 S1 without rewiring the field terminals?
A: Yes. The AAI141-H00 S1 uses the same terminal block pinout as previous AAI141 variants. Existing 4–20 mA field wiring connects directly to the replacement module without re-termination, provided the terminal assembly unit (ATD board) is in serviceable condition.

Q: Do I need to modify my CENTUM VP control logic after replacement?
A: No reprogramming is required for a like-for-like replacement. The module registers with the FCS using the same I/O address and tag structure. If you are upgrading from a CS 3000 module, a brief engineering tool session in CENTUM VP Builder is needed to re-map the I/O address, but function block logic and PID loop parameters are preserved.

Q: Is the AAI141-H00 S1 compatible with both V net and Vnet/IP communication architectures?
A: The module operates within the standard CENTUM VP I/O subsystem and communicates via the FCS internal bus. Compatibility with V net or Vnet/IP is determined by the FCS controller and communication modules, not the I/O module itself. The AAI141-H00 S1 is transparent to the network layer and functions correctly in both architectures.

Q: What physical space does the module require in the cabinet?
A: The AAI141-H00 S1 occupies a single slot in the standard CENTUM VP I/O nest. No additional DIN rail space or cabinet modification is required. The module dimensions are identical to the unit it replaces, ensuring a direct mechanical fit.

Q: How should I handle commissioning after installation?
A: After seating the module, perform a channel-by-channel loop check using the CENTUM VP engineering tool in online mode. Verify that each of the 16 channels reads correctly against a calibrated signal source before returning the loop to automatic control. Document the as-found and as-left readings for your maintenance records.

Warranty Assurance

Every AAI141-H00 S1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including power-on testing, channel signal integrity checks, and communication bus enumeration. Units that do not meet specification are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical team is available to assist with installation questions, compatibility verification, and commissioning support via email and phone. We maintain stock of the AAI141-H00 S1 and related CENTUM VP components to support urgent replacement requirements, with same-day dispatch available for in-stock orders placed before 14:00 CST.

We ship globally from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on urgency and order volume. Export documentation, including commercial invoices, packing lists, and certificates of origin, is prepared for all international shipments to facilitate smooth customs clearance.

For volume procurement, long-term supply agreements, and project-based sourcing of CENTUM VP components, please contact our industrial automation team directly.
