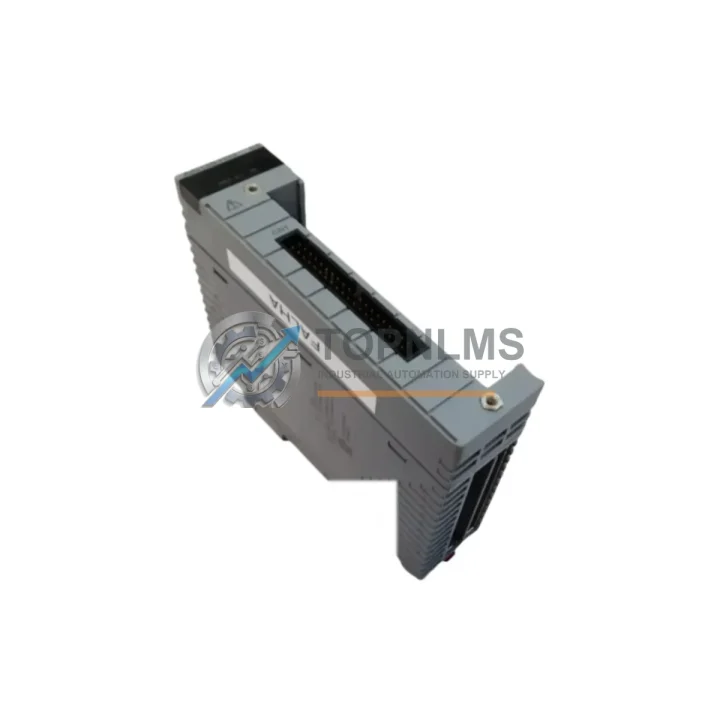

Yokogawa AAI135-H50 S3 Ruggedized Analog Input Module

Product Overview

Yokogawa AAI135-H50 S3 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The Yokogawa AAI135-H50 S3 is a 16-channel analog input module engineered for the CENTUM VP Distributed Control System (DCS) platform — one of the most trusted process automation architectures deployed across critical industries worldwide. Designed to operate reliably under extreme thermal stress, high humidity, persistent vibration, airborne particulates, and intense electromagnetic interference, this module delivers the signal integrity and uptime assurance that modern industrial facilities demand.

In continuous production environments — from petrochemical refineries and offshore platforms to power generation stations and metallurgical plants — analog signal fidelity is non-negotiable. The AAI135-H50 S3 accepts 4–20 mA and voltage-based field signals from transmitters, sensors, and transducers, converting them with high-resolution accuracy into digital process values that the CENTUM VP controller can act upon in real time. Its ruggedized design ensures that even in the presence of ground loops, cable-induced noise, or proximity to high-voltage switchgear, signal quality remains stable and measurement drift is minimized.

Rugged Specifications Table

Comprehensive Protection Solutions

The AAI135-H50 S3 does not operate in isolation — it is a critical node within a broader CENTUM VP control architecture. In a typical process control cabinet, this module works in concert with the Yokogawa AAI141-S00 S1 analog input module and the AAO145-S00 S1 analog output module to form a complete I/O subsystem capable of handling both measurement and actuation tasks. The Yokogawa ACM12-S00 S1 communication module provides the backbone for high-speed data exchange between field I/O nodes and the central controller, ensuring that process values captured by the AAI135-H50 S3 are transmitted without latency or packet loss even in electrically noisy environments.

For power conditioning and supply redundancy — essential in facilities where a momentary power interruption can trigger a costly process shutdown — the Yokogawa PW481 power supply module provides stable 24 VDC rail power to the I/O bus. Paired with the Yokogawa AVR10D voltage regulator, the system maintains clean power delivery even when upstream supply fluctuations occur. On the safety side, the Yokogawa ProSafe-RS Safety Instrumented System (SIS) modules can be integrated alongside the CENTUM VP DCS to provide IEC 61511-compliant safety loop management, ensuring that the analog signals processed by the AAI135-H50 S3 feed directly into safety logic solvers when required.

Terminal connectivity is managed through the Yokogawa TB820V terminal board, which provides a clean, labeled field-wiring interface that simplifies commissioning and reduces the risk of wiring errors during installation or maintenance. For facilities requiring HART protocol pass-through — enabling smart transmitter diagnostics without interrupting the 4–20 mA signal — the CENTUM VP architecture supports HART multiplexer integration at the I/O level, making the AAI135-H50 S3 compatible with advanced asset management workflows. Relay output modules such as the Yokogawa ADV151-P50 S3 digital output module can be co-located in the same I/O chassis, enabling coordinated discrete and analog control from a unified platform.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the AAI135-H50 S3 is deployed in wellhead control panels, pipeline SCADA systems, and compressor station automation cabinets. Its ability to maintain accurate 4–20 mA signal acquisition in the presence of ground potential differences — common in geographically distributed pipeline installations — makes it a preferred choice for instrumentation engineers specifying DCS I/O for hazardous area control rooms.

In thermal and hydroelectric power generation, this module monitors critical process variables including boiler drum pressure, turbine inlet temperature, feedwater flow, and generator excitation current. The high-resolution 16-bit conversion ensures that small deviations in process variables are detected early, enabling predictive maintenance strategies that reduce unplanned outages. Power plant operators rely on the CENTUM VP platform’s redundancy architecture — supported by modules like the AAI135-H50 S3 — to maintain continuous operation across planned maintenance windows.

In water and wastewater treatment facilities, the module handles analog inputs from pH sensors, dissolved oxygen probes, turbidity meters, and flow transmitters distributed across treatment stages. Its resistance to humidity and condensation — a persistent challenge in outdoor pump stations and wet-process environments — ensures measurement continuity without the signal drift that can compromise dosing accuracy or regulatory compliance reporting.

In mining and metallurgical processing, where vibration from crushers, conveyors, and rotating machinery is constant, the AAI135-H50 S3’s mechanical robustness and vibration-rated design prevent the intermittent contact failures and signal noise that plague lesser-specified I/O hardware. Smelting operations, ore beneficiation plants, and concentrate handling systems all benefit from the module’s ability to sustain accurate analog measurement under continuous mechanical stress.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the Yokogawa AAI135-H50 S3?
All Yokogawa AAI135-H50 S3 modules supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions. In the event of a warranty claim, TOPNLMS provides replacement or repair support with priority handling to minimize your process downtime.

Q2: How is each module tested before shipment?
Every AAI135-H50 S3 unit undergoes pre-shipment functional verification including power-on testing, channel continuity checks, and visual inspection for physical integrity. Modules sourced from verified supply channels are cross-referenced against Yokogawa’s original part numbering and revision documentation to confirm authenticity and specification compliance before dispatch.

Q3: Is the AAI135-H50 S3 compatible with both CENTUM VP and CENTUM CS 3000 systems?
Yes. The AAI135-H50 S3 is designed for the Yokogawa CENTUM VP platform and is also backward-compatible with CENTUM CS 3000 installations that share the same I/O bus architecture. If you are upgrading from CS 3000 to CENTUM VP, this module can be retained in your existing I/O chassis without requiring a full hardware replacement, reducing migration costs significantly. Please confirm your specific system revision with our technical team prior to ordering.

Q4: Can TOPNLMS support long-term and repeat procurement of this module?
Yes. TOPNLMS maintains dedicated inventory of Yokogawa CENTUM VP I/O modules including the AAI135-H50 S3 to support both emergency spare-part replacement and planned maintenance procurement programs. We offer volume pricing for standing orders and can coordinate scheduled shipments aligned with your plant maintenance cycles. Contact our team to discuss a long-term supply agreement tailored to your facility’s operational requirements.
