YOKOGAWA 031-00940-001 Replacement/Upgrade Solution for CENTUM VP

Product Overview

YOKOGAWA 031-00940-001 Replacement/Upgrade Solution for CENTUM VP: Smooth Migration from Legacy FCS

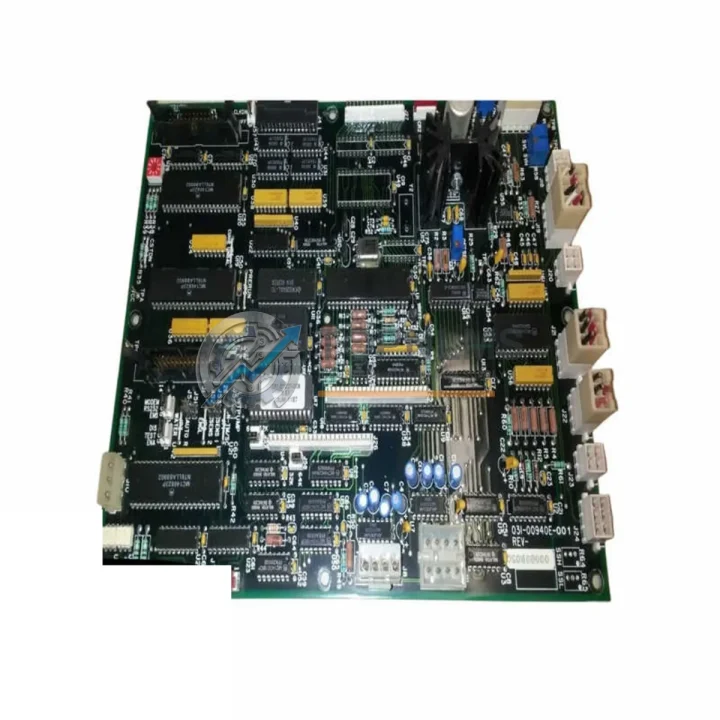

The YOKOGAWA 031-00940-001 Micro Control Board is the core CPU module of the CENTUM VP Field Control Station (FCS), responsible for executing control logic, managing I/O communication, and maintaining real-time process coordination across the distributed control system. As legacy CENTUM CS 3000 and early CENTUM VP installations approach end-of-life, plant engineers and procurement teams are actively sourcing verified replacement units to sustain uptime without committing to a full system overhaul.

TOPNLMS supplies the 031-00940-001 as a direct drop-in replacement for failed or degraded FCS CPU boards. Each unit is sourced from authorized channels, inspected prior to dispatch, and backed by a 12-month warranty. Whether you are managing an emergency breakdown or executing a planned spares strategy, this module ships from our Xiamen warehouse with full documentation support.

For sites migrating from CENTUM CS 3000 or transitioning away from third-party DCS platforms such as Honeywell TDC 3000 or ABB Advant OCS, the 031-00940-001 represents the most direct path to restoring FCS functionality within the CENTUM VP architecture — without rewriting control logic, rewiring field terminals, or modifying the existing rack infrastructure.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 031-00940-001 Micro Control Board is rarely an isolated action. In most CENTUM VP migration and retrofit projects, the FCS CPU replacement is coordinated with adjacent hardware to ensure system-wide stability and minimize total downtime during the maintenance window.

During commissioning, engineers typically verify the integrity of the ESB Bus Interface Module (EB401), which bridges the FCS CPU to the I/O nest. A worn or intermittently failing EB401 can produce communication faults that are incorrectly attributed to the CPU board itself — replacing both in the same window eliminates this diagnostic ambiguity. Similarly, the FCS node interface unit (NE3D) and associated fiber-optic patch panels may require reconfiguration if the rack layout is being revised as part of the migration.

Analog input modules such as the AAI141-S00 and AAI841-S00 are commonly refreshed in the same maintenance cycle, particularly when the FCS has been operating continuously for over eight years. For sites that rely on HART pass-through for field device diagnostics, confirming that AAI143-S HART-enabled analog input cards remain correctly addressed after the CPU swap is a standard commissioning step. Digital output modules like the ADV551-P00 should also be inspected for relay contact wear if the control station manages discrete actuator outputs.

The FCS power supply module — typically a PW481 or PW482 — should be evaluated before the new CPU board is brought online. Aging power rails can introduce voltage instability that shortens the service life of a newly installed control board. For sites upgrading from CENTUM CS 3000 to CENTUM VP, the Vnet/IP communication coupler (ACG10S) is often required to bridge legacy node addresses to the new Ethernet-based control network.

Finally, the CENTUM VP Human Interface Station (HIS) running CS Studio must be updated with the revised FCS node configuration before the replacement board is brought online. TOPNLMS can advise on compatible hardware combinations and revision matching based on your existing system documentation.

Retrofit Guidance FAQ

Q: Do I need to rewire field terminals when replacing the 031-00940-001?
A: No. The 031-00940-001 is a CPU-level board replacement. Field wiring connects to I/O modules (e.g., AAI141-S00, ADV151-P00) via terminal blocks or marshalling cabinets — these are unaffected by a CPU board swap. Only the FCS rack slot housing the control board is involved.

Q: Will my existing CENTUM VP control logic run without modification?
A: Yes, provided the replacement board matches the firmware revision of your FCS. The control database resides on the engineering server and is downloaded to the FCS after hardware replacement. No logic rewriting is required for a like-for-like swap.

Q: Is the 031-00940-001 compatible with Vnet/IP redundant network configurations?
A: Yes. The module supports both simplex and dual-redundant Vnet/IP topologies. Redundancy switchover behavior is governed by the FCS configuration in CENTUM VP Builder and is not affected by the board replacement itself.

Q: What is the physical installation procedure?
A: Power down the FCS node (or initiate a controlled switchover if redundancy is active), remove the failed board from its slot, insert the replacement 031-00940-001, restore power, and perform a database download from the HIS. Refer to YOKOGAWA instruction manual IM 33S01B30-01E for the full procedure.

Q: Can this module replace boards from CENTUM CS 3000 installations?
A: Direct hardware substitution from CS 3000 to CENTUM VP requires a platform migration project, not a board swap. However, if your site has already migrated to CENTUM VP and is replacing a degraded 031-00940-001, this is a straightforward like-for-like replacement.

Q: How do I verify firmware compatibility before installation?
A: The firmware version is readable via the CENTUM VP diagnostic tool in CS Studio. TOPNLMS provides the firmware label on the unit upon request. Contact us at [email protected] to confirm compatibility with your system revision before ordering.

Q: What communication protocols does this module support?
A: The 031-00940-001 operates on YOKOGAWA’s proprietary Vnet/IP protocol, which is Ethernet-based and fully compatible with existing CENTUM VP network infrastructure. No protocol converter or gateway is required for like-for-like replacement.

Warranty Assurance

Every 031-00940-001 Micro Control Board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and component-level health. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the fault assessment. Our after-sales team responds to warranty inquiries within one business day. Customers are not required to return the defective unit before a replacement is dispatched in confirmed fault cases, subject to review.

For procurement teams managing critical infrastructure, TOPNLMS offers batch testing reports and serialized inspection records upon request. We ship via DHL, FedEx, and UPS with full export documentation, commercial invoices, and packing lists suitable for customs clearance in most jurisdictions. Lead time for in-stock units is typically 3–7 business days to major industrial hubs globally.

For volume orders, long-term supply agreements, or technical pre-sales consultation, contact our engineering sales team directly.
