Yaskawa ARDA-C0A12A21A-E HW0389174-C Original Industrial Spare DX200 Compatible

Product Overview

Yaskawa ARDA-C0A12A21A-E HW0389174-C Original Industrial Spare DX200 Compatible: System Stability & Industrial Spare Maintenance Value

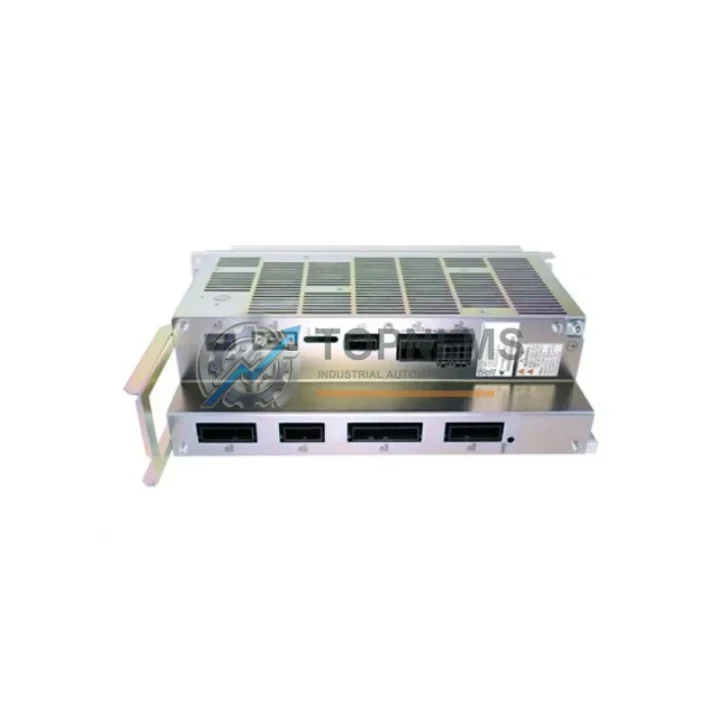

The Yaskawa ARDA-C0A12A21A-E (board part number HW0389174-C) is an original converter board designed for the DX200 robot controller, compatible with the MS165 manipulator series. In high-throughput manufacturing environments — automotive body shops, heavy fabrication lines, and precision assembly cells — the DX200 controller is the nerve center of robotic motion. When this converter board degrades or fails, the entire robot axis goes offline, triggering unplanned downtime that can cost thousands per hour. Stocking a verified original replacement is not optional; it is a core pillar of any serious preventive maintenance program.

This board manages critical signal conversion and power distribution functions within the DX200 controller cabinet. Its role in maintaining stable communication between the servo amplifier section and the main CPU board means that any degradation — whether from thermal cycling, vibration fatigue, or capacitor aging — will manifest as axis alarms, erratic motion, or complete controller lockout. Identifying and replacing this board proactively, rather than reactively, is the difference between a planned 30-minute maintenance window and a multi-day production crisis.

Critical Technical Specs Table

Preventive Maintenance Strategy

A converter board failure in the DX200 rarely occurs in isolation. In most field cases, the root cause is systemic: aging capacitors across multiple boards, contaminated cooling airflow, or a power supply unit operating at the edge of its rated output. When scheduling a maintenance window to replace the ARDA-C0A12A21A-E / HW0389174-C, experienced maintenance engineers treat it as an opportunity to audit the entire controller cabinet.

Begin with the DX200 servo amplifier modules — the SRDA series units that drive each robot axis. These share the same thermal environment as the converter board and are subject to identical aging stresses. If the converter board shows signs of heat damage, the servo amplifier capacitors are likely approaching end-of-life as well. Simultaneously, inspect the DX200 power supply unit (JZNC-YRK01-1E or equivalent), which feeds regulated DC rails to the converter board; a sagging power supply is a common upstream cause of converter board stress.

The I/O module rack inside the DX200 — including digital input/output boards such as the JANCD-YIO21-E — should be checked for loose connectors and oxidized terminal contacts. These boards communicate directly with the external PLC or safety relay system, and intermittent I/O faults are frequently misdiagnosed as converter board issues. While the cabinet is open, verify the condition of the communication board (JANCD-YCP01-E or JANCD-YEW01-E) that handles EtherNet/IP or DeviceNet connectivity to the upstream PLC system; a degraded communication board can cause the controller to generate spurious alarms that mask the true fault source.

Do not overlook the teach pendant cable assembly (DX200 series) and its connector at the controller base. This cable is subject to repeated flexing during normal operation and is a common source of intermittent communication errors that are incorrectly attributed to internal boards. Inspect the battery backup unit for the DX200 CPU — Yaskawa recommends replacement every 3–4 years, and a depleted battery will cause program and parameter loss on the next power cycle. The cooling fan units mounted in the DX200 cabinet door and internal chassis should also be replaced on a scheduled basis; fan failure is the single most common cause of thermal-induced board degradation across the entire DX200 platform.

For facilities running multiple DX200 controllers in a welding or handling cell, consider maintaining a consolidated spare parts kit that includes the ARDA-C0A12A21A-E converter board alongside the servo amplifier modules, I/O boards, power supply unit, and communication boards. This approach eliminates the multi-day lead time risk during an unplanned outage and is standard practice in automotive Tier 1 supplier plants where robot uptime is directly tied to production throughput commitments.

Strategic Replacement Solutions

The DX200 controller platform was introduced by Yaskawa in the early 2010s and remains in active production service at thousands of facilities worldwide. As the platform ages, OEM support windows narrow and original spare parts become increasingly difficult to source through standard distribution channels. The ARDA-C0A12A21A-E / HW0389174-C is a direct original replacement that requires no firmware modification, no parameter re-mapping, and no recalibration of the robot model — it is a true drop-in solution that restores the controller to factory specification.

For facilities that have already transitioned some robots to the newer YRC1000 or YRC1000micro controller platform, maintaining DX200 spare parts for legacy robots is still essential. A mixed-fleet maintenance strategy — stocking original boards for DX200 units while planning a phased migration — is the most cost-effective approach to managing the transition without exposing the facility to unacceptable downtime risk on aging equipment.

Replacing the converter board with a verified original part also preserves the integrity of the robot’s safety-rated functions. The DX200 implements Functional Safety Unit (FSU) features including speed monitoring and zone restriction. A non-original or counterfeit board may not correctly interface with the FSU logic, creating a latent safety risk that will not be detected until a safety audit or incident. Original parts from verified sources eliminate this risk entirely.

All units shipped from TOPNLMS are subject to pre-shipment functional verification. Each board is inspected for physical damage, tested for electrical continuity on key signal paths, and packaged in anti-static protective materials with appropriate cushioning for international freight. Standard lead time is 3–7 business days for in-stock units, with expedited options available for critical downtime situations.

Support FAQ

Q1: Is the ARDA-C0A12A21A-E compatible with all DX200 controller variants?
The ARDA-C0A12A21A-E / HW0389174-C is specifically validated for the DX200 controller used with the MS165 manipulator series. DX200 controllers configured for other robot models (e.g., MA1440, MH24) may use different converter board variants. Please confirm your controller’s full model designation and internal board layout before ordering. Our technical team can assist with compatibility verification based on your controller serial number.

Q2: What is the recommended spare parts inventory strategy for DX200 converter boards?
For facilities operating 3 or more DX200 controllers, we recommend maintaining a minimum of one converter board in local stock at all times. For critical production lines where robot downtime directly halts output, a 2-unit buffer is advisable. The shelf life of an uninstalled PCB stored in original anti-static packaging in a climate-controlled environment exceeds 5 years, making pre-stocking a low-risk, high-value insurance strategy.

Q3: How is the board tested before shipment, and what does the 12-month warranty cover?
Each unit undergoes pre-shipment inspection including visual examination for component damage, solder joint integrity checks, and electrical continuity testing on primary signal and power paths. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q4: Can this board be installed on-site by maintenance personnel, or does it require a Yaskawa service engineer?
The ARDA-C0A12A21A-E is an internal PCB replacement that requires the DX200 controller to be powered down and locked out per LOTO procedures. Installation involves removing the controller front panel, disconnecting the board’s ribbon and power connectors, and seating the replacement board. Maintenance personnel with DX200 controller familiarity can typically complete the replacement in under 60 minutes. No software re-flashing or parameter changes are required for a like-for-like board replacement. For facilities without in-house DX200 experience, we recommend engaging a qualified robot maintenance contractor.
