XINJE XC3-60R-E Replacement/Upgrade Solution for XC3 Series

Product Overview

XINJE XC3-60R-E Replacement/Upgrade Solution for XC3 Series: Smooth Transition from Legacy PLC Systems

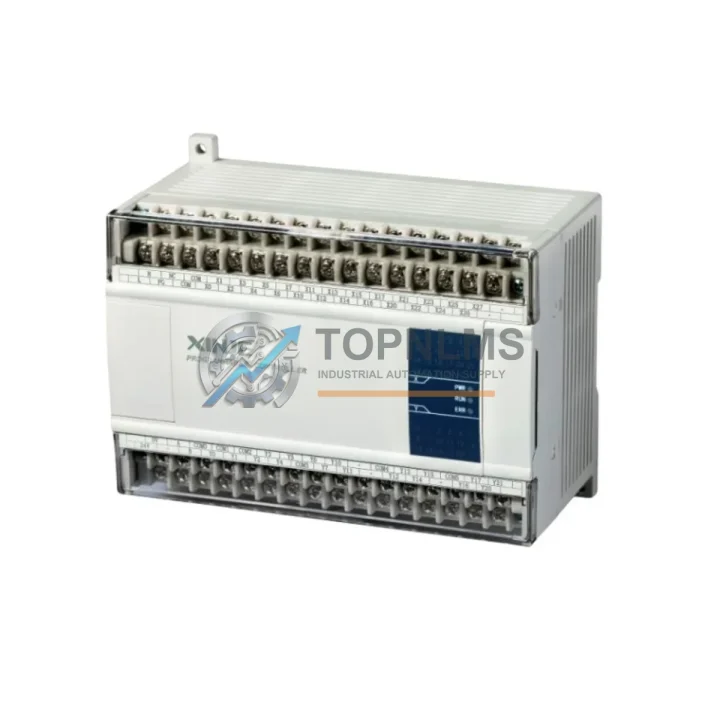

The XINJE XC3-60R-E is a 60-point relay output PLC with AC power supply and dual serial communication ports (RS232 + RS485), designed for demanding industrial control applications. As legacy XC3 Series installations age or reach end-of-life, plant engineers and procurement teams increasingly require a verified, drop-in compatible replacement that preserves existing wiring, ladder logic, and cabinet layouts — without forcing a full system redesign.

At TOPNLMS, we stock the XC3-60R-E specifically to support migration projects: whether you are replacing a failed unit on the production floor, upgrading from an earlier XC2 Series controller, or consolidating spare-part inventory ahead of a planned retrofit. Every unit ships from our Xiamen warehouse with full functional testing and a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful XC3-60R-E migration rarely involves the PLC alone. In practice, the upgrade touches multiple layers of the control architecture. When replacing the main CPU module, engineers typically audit the XC-E8X8YR expansion I/O module mounted on the left-side bus — confirming that the expansion connector pinout and communication timing remain compatible, which they do on the XC3 platform. Power distribution inside the control cabinet is usually handled by a 24 VDC XINJE switching power supply (such as the XP series), and verifying its output capacity against the new PLC’s inrush current is a standard commissioning step.

For sites running MODBUS RTU networks, the RS485 port on the XC3-60R-E connects directly to existing field devices — XINJE DS5 series servo drives, XINJE VH series variable frequency drives, and third-party instruments — without rewiring or protocol conversion. Where the legacy system used a dedicated XINJE XC-NET-ETH Ethernet communication module for SCADA connectivity, the same module slots into the XC3 expansion bus and retains its IP configuration.

HMI integration is equally straightforward. Existing XINJE TG series touch panels communicate with the XC3-60R-E over RS232 or RS485 using the same XINJE PLC driver, so screen projects require no modification. If the retrofit also involves replacing the HMI, the XINJE TG765-UT is a common pairing with the XC3-60R-E in mid-size machine control panels.

Programming cable compatibility is another practical concern: the USB-SC09-FX programming cable used with earlier XC2 and XC3 units works identically with this model, and existing XCPPro ladder logic projects can be downloaded without conversion. For sites that archive programs on a PC, no additional software license is required.

Finally, terminal wiring on the I/O connector strips follows the same XC3 standard layout, meaning field cables terminated to the original unit can be transferred to the replacement without re-labeling or re-routing — a critical factor for minimizing downtime during a live-line swap.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring?
Yes. The XC3-60R-E uses the same I/O terminal block layout as other XC3-60 variants. Input and output wiring transfers directly from the old unit to the new one without modification, provided the original installation followed the XC3 wiring standard.

Q: Do I need to rewrite my ladder logic program?
No. Programs written in XCPPro for any XC3 Series CPU are fully portable to the XC3-60R-E. Upload the program from the old unit (or restore from backup), then download to the replacement. Instruction set, memory addresses, and timer/counter configurations are preserved.

Q: Is the RS485 port compatible with my existing MODBUS RTU network?
Yes. The XC3-60R-E RS485 port supports MODBUS RTU master and slave modes at standard baud rates (9600–115200 bps). No protocol gateway or converter is required for networks already running MODBUS RTU.

Q: Will the replacement fit in my existing control cabinet cutout?
The XC3-60R-E shares the same DIN rail mounting footprint as other XC3-60 point units. Cabinet cutout dimensions, DIN rail spacing, and cable entry positions do not need to change.

Q: What if I am upgrading from an XC2 Series unit?
The XC3-60R-E is a functional upgrade from XC2-60R-E. I/O point count and serial port positions are compatible, but the XC3 instruction set is a superset of XC2. Programs may require minor review in XCPPro before download, particularly if XC2-specific instructions are used. TOPNLMS can advise on known compatibility considerations upon request.

Q: Can I connect an expansion I/O module to this unit?
Yes. The left-side expansion bus on the XC3-60R-E supports XINJE XC-E series expansion modules, including digital I/O, analog I/O, and communication expansion units, up to the platform’s maximum expansion capacity.

Warranty Assurance

Every XINJE XC3-60R-E shipped by TOPNLMS carries a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification: power-on self-test, I/O point continuity check, serial port communication test, and firmware version confirmation. Units that do not pass testing are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or repair service with a target response time of 3 business days from claim receipt. Customers are not required to return the defective unit before a replacement is dispatched for verified warranty cases, reducing production downtime. Shipping costs for warranty returns are covered by TOPNLMS for orders within mainland China.

For procurement teams managing critical spare-part inventories, TOPNLMS offers batch testing and certification documentation upon request, suitable for ISO 9001-compliant maintenance programs. Lead times for stocked units are typically 1–3 business days for domestic shipments from Xiamen.

For volume orders, OEM procurement, or technical pre-sales consultation, contact our industrial automation team directly.
