WOODWARD EASYGEN-3500-5 8440-1934 Original Spare EasyGen Compatible

Product Overview

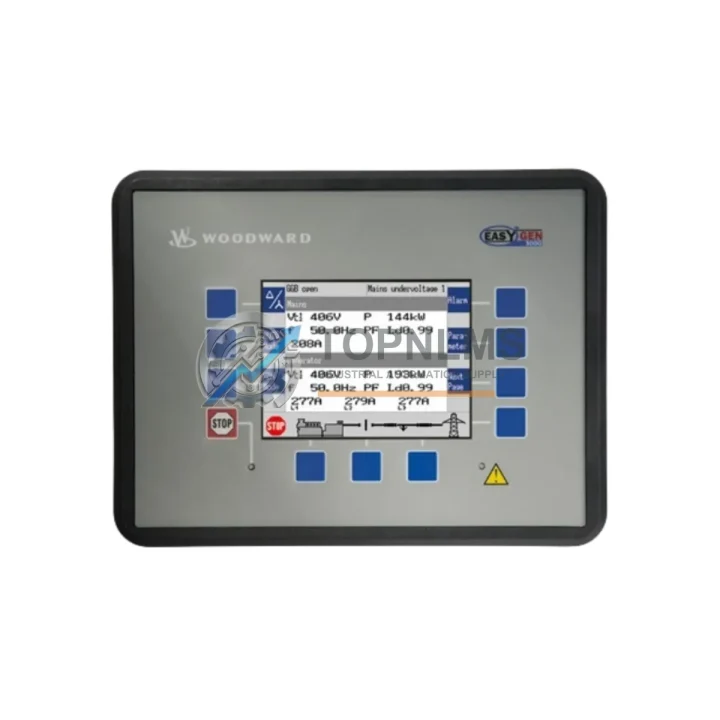

WOODWARD EASYGEN-3500-5 8440-1934: Original Spare for Generator System Stability

The WOODWARD EASYGEN-3500-5 (Part No. 8440-1934) is a factory-original generator management controller engineered for demanding industrial power generation environments. As a critical component in genset control architecture, this unit governs synchronization, load sharing, protection, and engine management across single and multi-generator installations. Sourcing an original spare — rather than an aftermarket substitute — is the single most effective measure a maintenance team can take to preserve system integrity, avoid nuisance trips, and extend the operational life of the entire power generation train.

At TOPNLMS, every EASYGEN-3500-5 8440-1934 unit is sourced from authorized supply channels, subjected to pre-shipment functional verification, and dispatched with a 12-month quality warranty. Whether you are building a critical-spare inventory, responding to an unplanned outage, or executing a scheduled overhaul, this controller ships promptly to minimize your downtime exposure.

Critical Technical Specs

Preventive Maintenance Strategy

A generator management controller does not fail in isolation. When the EASYGEN-3500-5 8440-1934 is flagged for replacement — whether due to a fault code, communication dropout, or scheduled lifecycle swap — experienced maintenance engineers treat the event as a trigger for a broader system audit. The following strategy reflects best practice for industrial genset installations and power distribution panels where this controller is typically deployed.

Engine Interface & Speed Governing: The EasyGen-3500-5 communicates with the engine ECU via J1939 CAN bus. During a controller swap, inspect the WOODWARD ProAct Digital Speed Control or equivalent magnetic pickup speed sensor wiring for continuity and shielding integrity. A degraded speed signal is a common root cause of false overspeed trips that are incorrectly attributed to the controller itself.

Power Supply Module: The controller’s 8–35 VDC supply rail is shared with other panel components. Verify the 24 VDC battery charger module and associated fuse block are within specification. A sagging supply voltage during engine cranking is a leading cause of controller brownout and corrupted configuration memory — replacing the controller without addressing a weak supply will result in repeat failures.

I/O Wiring & Terminal Blocks: All discrete inputs (breaker feedback, emergency stop, remote start) and analog outputs (AVR reference, load signal) terminate on the controller’s screw-terminal I/O block. During replacement, inspect Phoenix Contact or equivalent terminal blocks for oxidation, loose ferrules, and correct torque. Damaged terminals are a frequent source of intermittent faults that mimic controller failure.

Communication Modules & Network Integrity: If the installation uses Modbus TCP for SCADA integration, verify the Ethernet communication module and network switch port. A faulty network segment can prevent the new controller from being commissioned remotely, extending downtime unnecessarily. Similarly, if CAN bus is used for inter-controller load sharing in a multi-genset arrangement, inspect the CAN bus termination resistors and cable shielding at both ends of the bus.

Voltage Regulation Interface: The EasyGen-3500-5 outputs an analog AVR trim signal to the automatic voltage regulator (AVR) — commonly a WOODWARD DECS-100, DECS-200, or compatible third-party unit. Confirm the AVR’s reference input is within range and that the AVR itself is not contributing to voltage instability that was previously masked by the old controller’s compensation algorithms.

Protection Relay Coordination: In installations where the EasyGen-3500-5 interfaces with external overcurrent or differential protection relays, verify relay settings have not drifted and that CT secondary circuits are intact. A controller replacement is an ideal time to re-verify protection coordination with the site’s electrical engineer.

HMI & Remote Monitoring: If the site uses a WOODWARD InPower service tool or a third-party HMI panel for parameter visualization, confirm the communication link is re-established after controller replacement and that all setpoints are correctly transferred from the backup configuration file. Maintaining an up-to-date configuration backup is a non-negotiable element of any EasyGen-3500 maintenance program.

Recommended Companion Spares: Based on failure co-occurrence data and maintenance best practice, consider stocking the following alongside the EASYGEN-3500-5 8440-1934: a spare magnetic pickup sensor, a 24 VDC panel power supply module, a set of control-grade fuse holders and fuses for the controller supply circuit, and a CAN bus isolator module for multi-genset installations subject to ground loop interference. These components share the same maintenance window and their combined cost is negligible relative to a single hour of unplanned generation outage.

Strategic Replacement Solutions

The EASYGEN-3500-5 8440-1934 is a direct form-fit-function replacement for any EasyGen-3500 series controller currently installed in your genset control panel. For sites still operating legacy EasyGen-3100 or EasyGen-3200 controllers, the EasyGen-3500-5 represents a validated upgrade path: the physical footprint and terminal assignments are largely preserved, while the expanded feature set — including enhanced Modbus TCP, improved load-sharing algorithms, and a higher-resolution display — delivers measurable improvements in operational visibility and fault diagnostics without requiring panel redesign.

For multi-genset power plants running parallel operation, the EasyGen-3500-5’s native 5-generator synchronization capability eliminates the need for external synchronizing relays in most configurations, reducing panel complexity and potential failure points. Sites that previously required a dedicated synchronizing check relay alongside an older controller can often eliminate that component entirely upon upgrading to the EasyGen-3500-5, simplifying the maintenance burden and reducing spare-part SKU count.

Procurement teams managing aging power generation infrastructure should note that WOODWARD’s EasyGen-3500 series remains in active production and support. Stocking one or two units of the 8440-1934 as a critical spare — particularly for remote sites, offshore platforms, data center backup generation, or any facility where generator availability is a contractual obligation — is a straightforward risk mitigation measure with a well-defined return on investment. The cost of a spare controller is typically recovered within the first hour of avoided downtime.

Support FAQ

Q1: Is the EASYGEN-3500-5 8440-1934 a genuine WOODWARD original part?
Yes. Every unit supplied by TOPNLMS is sourced from authorized distribution channels and is a factory-original WOODWARD component. We do not supply aftermarket, refurbished-without-disclosure, or counterfeit parts. Each unit undergoes power-on functional verification prior to shipment.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the specified environmental envelope. Warranty claims are processed promptly — contact [email protected] with your order reference and a description of the fault.

Q3: Can this controller replace an older EasyGen-3400 or EasyGen-3200 unit?
In most installations, yes — with configuration adjustments. The EasyGen-3500-5 shares a compatible terminal layout with the EasyGen-3400 series and can be configured to replicate the functional behavior of older units using WOODWARD’s InPower commissioning tool. We recommend consulting the WOODWARD application note for cross-series migration and verifying I/O assignments against your site’s as-built drawings before installation. Our technical team can advise on compatibility for your specific installation.

Q4: How quickly does TOPNLMS ship, and what documentation is included?
In-stock units are dispatched within 1–3 business days. Each shipment includes the controller unit, original packaging, and a test certificate confirming pre-shipment functional verification. Export documentation, commercial invoices, and packing lists are provided for international shipments. For urgent requirements, contact us directly at [email protected] or +86 18359293191 to confirm stock availability and expedited shipping options.
