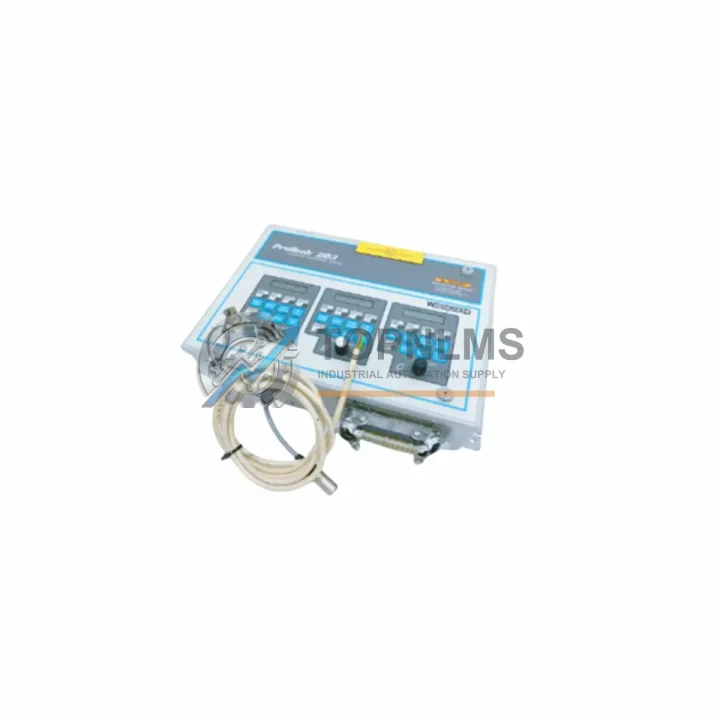

WOODWARD 9907-345 Ruggedized Overspeed Protection Module

Product Overview

WOODWARD 9907-345 Ruggedized Overspeed Protection Module: Industrial Resilience for Harsh Environments

The WOODWARD 9907-345 is a precision-engineered overspeed protection module designed for continuous, mission-critical operation in the most demanding industrial environments. As a core component of the WOODWARD EG Series speed trip control architecture, this module delivers deterministic, fail-safe overspeed detection and shutdown logic for gas turbines, steam turbines, diesel engines, and hydro-power prime movers operating in oil & gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing facilities.

Built to withstand high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and broadband electromagnetic interference (EMI), the 9907-345 maintains signal integrity and response accuracy where conventional control hardware fails. Its ruggedized housing and conformal-coated PCB assembly ensure long-term reliability in coastal, desert, and chemically aggressive atmospheres without derating performance or increasing maintenance intervals.

Rugged Specifications Table

Comprehensive Protection Solutions

The WOODWARD 9907-345 does not operate in isolation — it is the safety anchor of a broader turbine and engine control architecture. In a typical turbine control panel, the 9907-345 works in close coordination with the WOODWARD 9907-838 digital speed control module, which governs steady-state governor response and load sharing. Upstream, a WOODWARD 5417-748 or compatible magnetic pickup (MPU) sensor feeds real-time shaft speed signals into the 9907-345’s speed sensing input, ensuring sub-millisecond overspeed detection latency.

For installations requiring integrated load control and fuel actuator management, the 9907-345 is commonly paired with the WOODWARD EG-3P actuator and associated driver cards, forming a closed-loop governor and protection system. In DCS-integrated environments, the module interfaces with Emerson DeltaV I/O cards or Honeywell Safety Manager I/O modules via hardwired relay outputs, maintaining functional independence from the process control network — a critical requirement for SIL-rated safety loops.

Within the control cabinet, the 9907-345 is typically mounted alongside Phoenix Contact QUINT-series 24 VDC power supplies, which provide regulated, redundant power with diagnostic output signaling. Surge protection is handled by Phoenix Contact TRABTECH surge arresters or equivalent DIN-rail SPDs installed at the cabinet entry point, protecting the module’s sensitive analog inputs from transient overvoltages caused by nearby motor starts, arc flash events, or lightning-induced surges on field cabling.

Terminal connections are made through Weidmüller or Phoenix Contact spring-clamp terminal blocks, which maintain reliable contact force under vibration — a common failure mode for screw-type terminals in rotating machinery environments. Communication between the turbine control panel and the plant DCS is typically handled by Moxa NPort serial device servers or Prosoft Technology MVI series communication modules, translating legacy serial protocols to Modbus TCP or PROFIBUS DP for integration with modern SCADA systems.

For facilities requiring documented functional safety compliance, the 9907-345 is often deployed alongside Pilz PNOZ safety relays or Siemens SIRIUS 3SK safety relay modules in the emergency shutdown (ESD) circuit, providing redundant de-energize-to-trip logic that satisfies IEC 61511 requirements for SIL 2 protective functions in process industries.

Application in Critical Infrastructure

Oil & Gas — Upstream & Midstream Compression: In gas compression stations and offshore platform turbine-driven compressors, the WOODWARD 9907-345 provides the primary overspeed trip function for gas turbine drivers. Compressor trains operating at 3,000–18,000 RPM require sub-100ms trip response to prevent catastrophic mechanical failure. The 9907-345’s hardwired relay output bypasses any software or network latency, delivering deterministic protection independent of PLC scan cycles or DCS communication health.

Power Generation — Gas & Steam Turbine Plants: In combined-cycle and simple-cycle power plants, the 9907-345 is installed as the overspeed protection device for both gas turbine generators and steam turbine auxiliaries. During load rejection events — where the generator breaker opens suddenly — turbine speed can surge by 10–20% within seconds. The 9907-345 detects this excursion and initiates fuel shutoff before mechanical overspeed limits are reached, protecting the turbine rotor, blades, and connected generator from destructive centrifugal forces.

Mining — Diesel-Driven Equipment: In underground and open-pit mining operations, diesel engine-driven pumps, compressors, and generators are subject to runaway conditions caused by crankcase oil vapor ingestion or fuel system faults. The 9907-345 provides engine overspeed protection in these applications, triggering air intake shutoff actuators or fuel solenoid valves to arrest runaway before engine destruction. Its wide operating temperature range and vibration tolerance make it suitable for mobile mining equipment and fixed plant installations alike.

Water Treatment — High-Duty Pump Stations: Large centrifugal pump stations in municipal water treatment and wastewater facilities use diesel or gas engine drivers for emergency backup duty. The 9907-345 protects these drivers during no-load runaway conditions, ensuring that emergency backup systems remain available and undamaged for the next activation cycle.

Metallurgy & Heavy Industry — Rolling Mills and Blast Furnace Blowers: In steel mills and aluminum smelters, turbine-driven blowers and compressors supply process air to blast furnaces and electric arc furnaces. Unplanned overspeed events in these applications can result in extended production shutdowns and multi-million dollar repair costs. The 9907-345’s proven reliability in high-temperature, high-vibration, and high-EMI environments makes it the preferred overspeed protection solution for these continuous-process applications where unplanned downtime is unacceptable.
